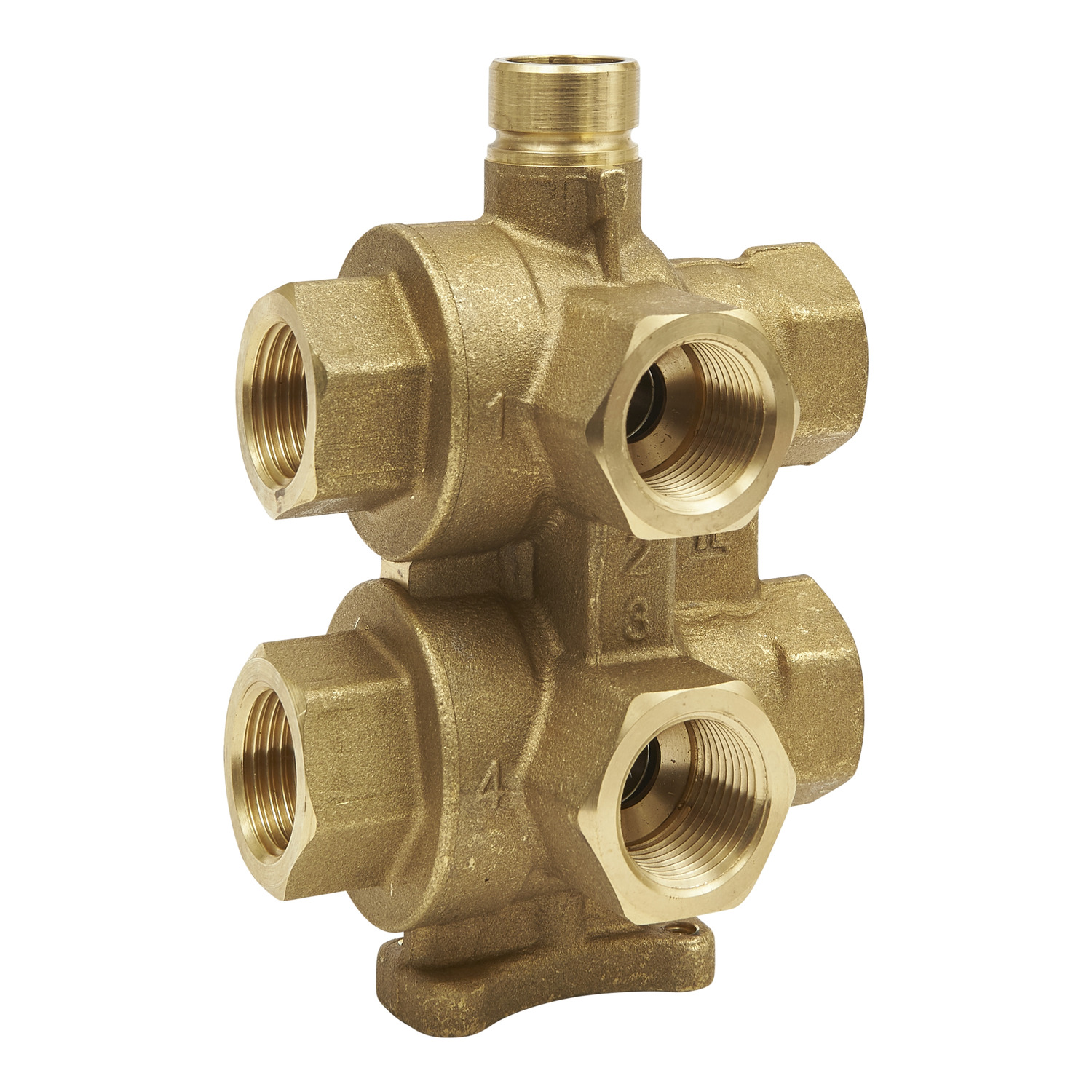

Picture of VB601R Change Over Valve, 6-Way, DN15, Rp 1/2, Kvs 2.4 m³/h.
SKU:

VB601R-15B

VB601R Change Over Valve, 6-Way, DN15, Rp 1/2, Kvs 2.4 m³/h.

$706.43 EXCL GST
Available for Shipping : 10-Feb-2025
VB601R Change Over Valve, 6-Way, DN15, Rp 1/2, Kvs 2.4 m³/h.
  • 6-ported valve switches the flow and return of hot and chilled water circuits into one HEX
  • Changeover with PIBCV provides all the benefits of pressure independence in 4 pipe systems
  • No cross over possible between supply circuits
  • Mid position provides isolation to both heating and chilled water circuits
  • Maintenance free
  • Polished ball and Teflon seals prevent the valve from sticking
  • 800 kPa Close off
  • Quick Fix connection to all MB10 actuators
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Product Page Link
Product Data Sheet
The VB61R is a 6-port motorized ball valve that performs a diverting function between two water circuits in 4-pipe changeover system. The VB61R valve will switch between heating and cooling with the addition of the SmartX MB1 two-position rotary actuator. Flow regulation is provided from an additional SmartX PIBCV valve and actuator. This provides the additional benefit of having a balanced energy efficient solution with superb proportional control. No cross-flow between supply circuits, Single on/off control signal to changeoversupply circuits, Visual indication of actual valve position. Power supply 24 AC +/- 2%, DN 15, Kvs 2.4 m3/h. Pressure class PN16, torque 1 Nm. PED directive 97/23/EC.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature 0-90 °C
Body material CW602N brass
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Seat material EPDM/PTFE
Flow coefficient 2.42 kvs
Valve type ball
Valve connection type Rp Internal
Pipe size DN15
Pressure class PN16
Body size 15 mm (1/2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.9 cm
Package 1 Width 9.5 cm
Package 1 Length 12.6 cm
Package 1 Weight 1.14 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.663 kg
