SKU:

VB-8223-0-5-12

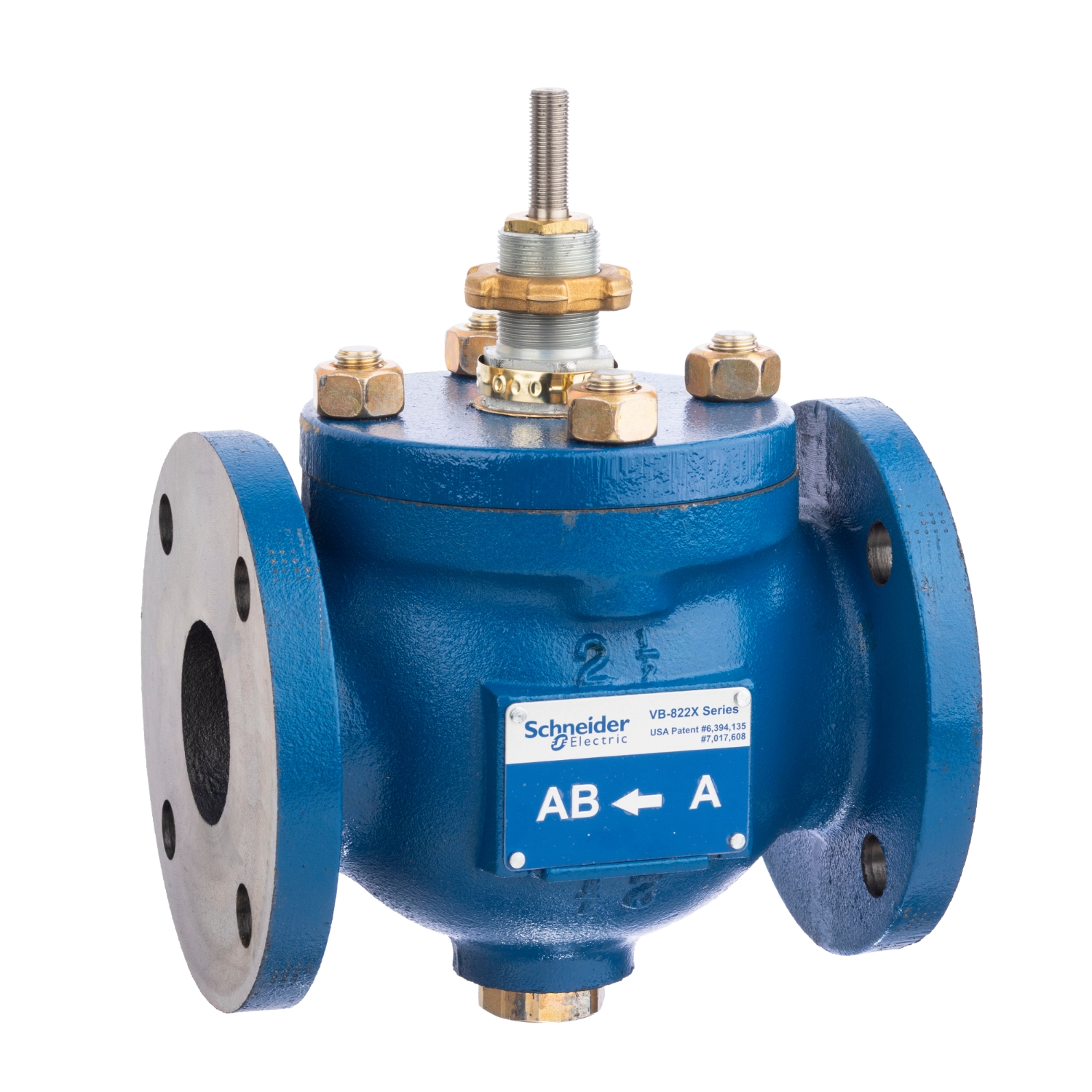

Schneider Electric, Globe Valve, 2-1/2 in, 2-way, flanged cast iron body, stem up closed, brass trim, 56 Cv, balanced plug technology

$2,234.23 INC GST

Qty:

Available for Shipping : 13-Feb-2025

Schneider Electric, Globe Valve, 2-1/2 in, 2-way, flanged cast iron body, stem up closed, brass trim, 56 Cv, balanced plug technology

Manufacturer: Schneider Electric

Product environmental

Product Page Link

Product Data Sheet

Schneider Electric, Globe Valve, 2-1/2 in, 2-way, flanged cast iron body, stem up closed, brass trim, 56 Cv, balanced plug technology

Attribute name	Attribute value
Main
Operating fluid temperature	-7-138 °C
Body material	cast iron
Satured steam inlet pressure	35 psi
Saturated steam temperature	-7-138 °C
Seat leakage	Port A: Class IV (0.01 %)
Product or component type	valve
Targeted region	North America.
Seat material	Port A: brass

Valve product range	Balanced Plug Technology
Pressure allowable static	200 psig up to 150 °F decreasing to 169 psig at 281 °F
Medium compatibility	Water, Steam, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability	greater than 100:1
Plug material	forged brass
Valve product series	VB-8200
Flow coefficient	48.43 kvs, 56 cv
Stem flow action	Stem up A closed
Valve configuration	2-Way
Stem movement	linear
Valve type	globe
Packing material	spring-loaded PTFE/EPDM
Valve connection type	flanged
Flow characteristic	equal percentage
Trim material	brass
Stroke length	1 in
Stem material	stainless steel 316
Pipe size	2-1/2 in
Pressure class	ANSI class 125
Body size	65 mm (2-1/2 in)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	98.1 cm
Package 1 Width	41.9 cm
Package 1 Length	36.8 cm
Package 1 Weight	20.865 kg
