SKU:

VB-7263-0-4-09

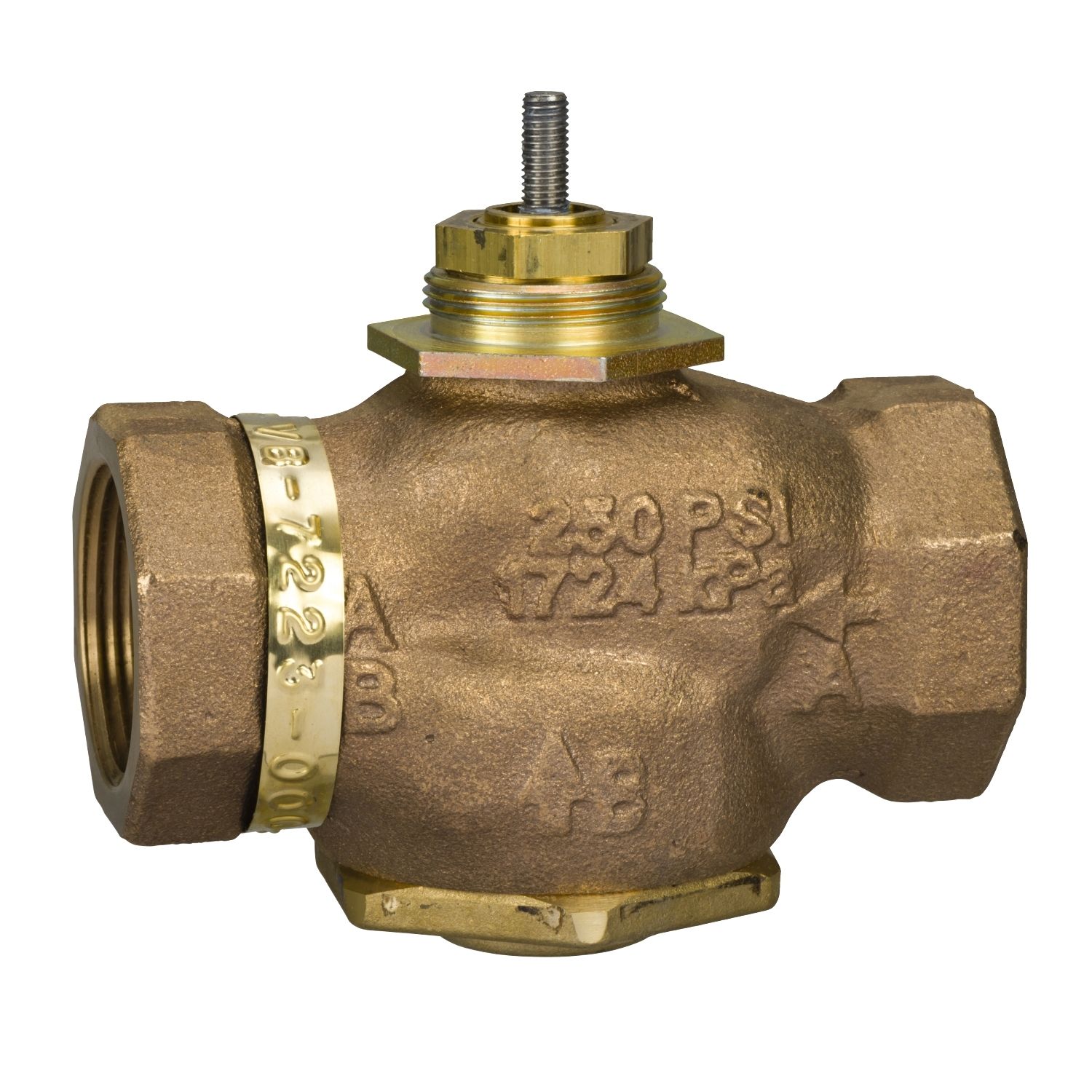

Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up closed, stainless steel trim with soft seats, 20 Cv

$1,020.86 INC GST

Qty:

Available for Shipping : 13-May-2026

Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up closed, stainless steel trim with soft seats, 20 Cv

Manufacturer: Schneider Electric

Delivery date: 13-May-2026

Product Page Link

Product Data Sheet

Venta, Globe Valve, 1-1/4 in, 2-way, straight threaded NPT, stem up closed, stainless steel trim with soft seats, 20 Cv

Attribute name	Attribute value
Main
Saturated steam temperature	-7-171 °C
Seating seal material	PTFE (polytetrafluoroethylene)
Seat leakage	Port A: Class V, Port A: Class IV (0.01 %)
Operating fluid temperature	-7-171 °C
Product or component type	valve
Targeted region	North America.
Body material	bronze
Satured steam inlet pressure	100 psi
Seat material	Port A: stainless steel 316

Valve product range	Venta
Pressure allowable static	400 psig up to 150 °F decreasing to 321 psig at 281 °F
Valve type	globe
Packing material	spring-loaded PTFE/EPDM
Flow characteristic	linear
Trim material	stainless steel
Stroke length	7/16 in
Stem material	stainless steel 316
Control valve rangeability	100:1
Pressure fluid max delta P quiet service	35 psi
Plug material	stainless steel
Valve product series	VB-7200
Pipe size	1-1/4 in
Body pattern	straightway
Flow coefficient	17.3 kvs, 20 cv
Stem flow action	Stem up A closed
Valve configuration	2-Way
Stem movement	linear
Pressure fluid max delta P normal life	87 psi
Pressure class	ANSI class 250
Body size	32 mm (1-1/4 in)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.4 cm
Package 1 Width	13.41 cm
Package 1 Length	15.85 cm
Package 1 Weight	2.268 kg
