SKU:

TRI100012579843F00

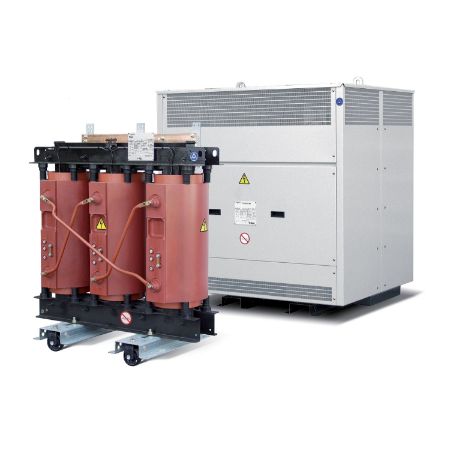

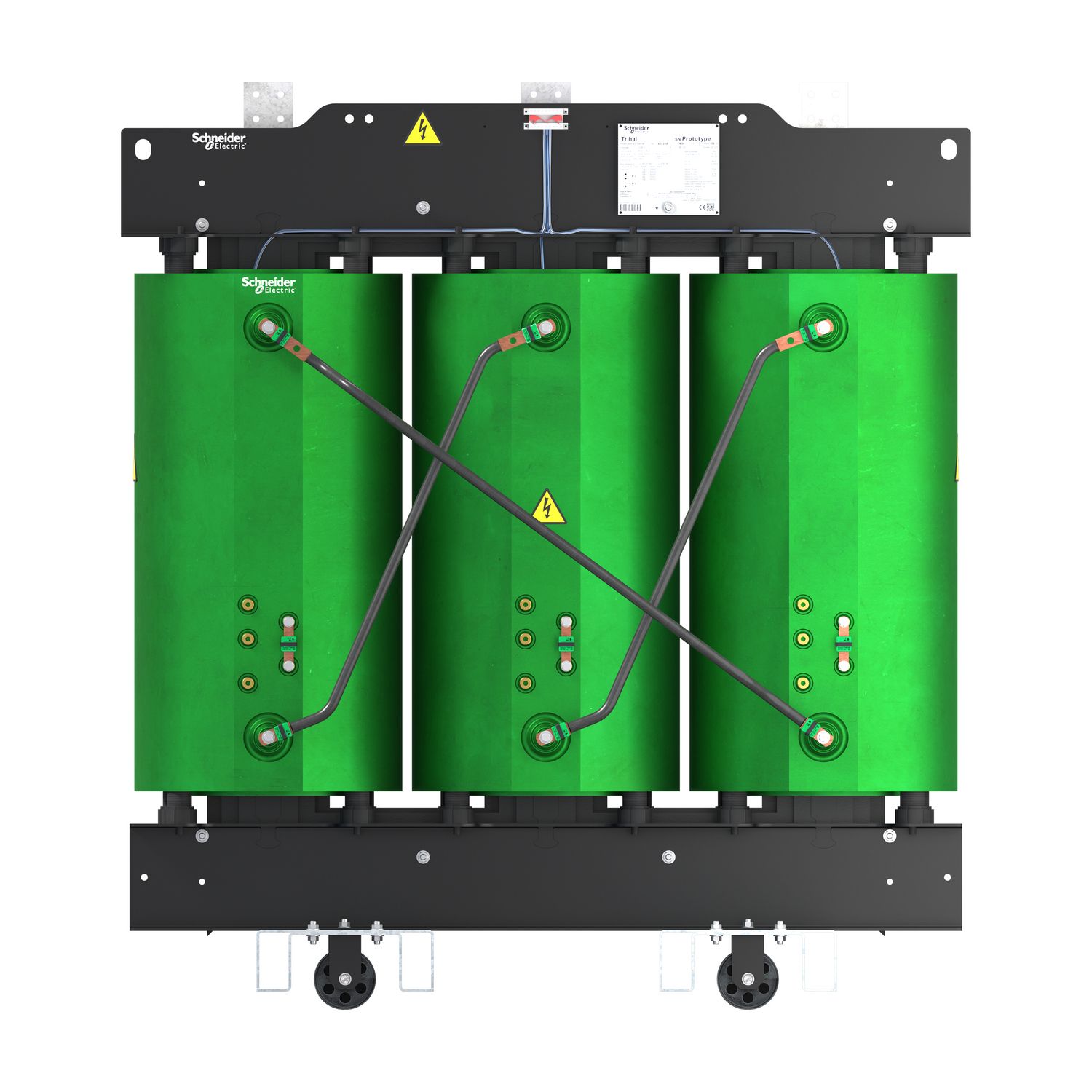

Transformer, Trihal, dry type, 1000kVA, 11kV, 433V, IP31 enclosure, air forced cooling

$69,166.68 INC GST

Qty:

Available for Shipping : 26-Apr-2026

Product Selector

Transformer, Trihal, dry type, 1000kVA, 11kV, 433V, IP31 enclosure, air forced cooling

Manufacturer: Schneider Electric

Delivery date: 26-Apr-2026

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Operating altitude	< 1000 m
Type of installation	indoor
Material	aluminium
Impregnation material	pre-impregnated (LV), cast resin (HV)
Product or component type	transformer
Network type	AC
IP degree of protection	IP31 enclosure, IP00
Type of cooling	ANAF (air natural air forced)
Range of product	Trihal
Directives	2015/2014/548/EC- ecodesign
Mounting mode	fixed
Transformer type	dry type transformer
Complementary
Temperature rise	100 K (winding)
Height	2000 mm
Tapping range	+/- 2 x 2.5 %
Secondary voltage	no load: 433 V
Rated power in VA	1000 kVA
[Uimp] rated impulse withstand voltage	95 kV for primary circuit
Network number of phases	3 phases
Electrical connection	cable low voltage connection, cable high voltage connection
Thermal losses	11800 W at 120 °C, 10300 W at 75 °C
Width	1400 mm
No load losses	2020 W
Net weight	2740 kg
[Ui] rated insulation voltage	secondary circuit: 3 kV AC, primary circuit: 35 kV AC
Noise level	65.7-65.7 dB at 1 m
Vector group	Dyn11
Length	2000 mm
Isolation voltage	1.1 kV AC secondary, 12 kV AC primary
Percentage impedance voltage	6 %
Electrical insulation class	F
Primary voltage	11 kV
Network frequency	50 Hz
Environment
Ambient air temperature for operation	-25-40 °C for C4
Standards	IEC 60076-11:2018
Relative humidity	0-95 % (E4)
Level or class	F1
Ambient air temperature for storage	-50-40 °C C4
