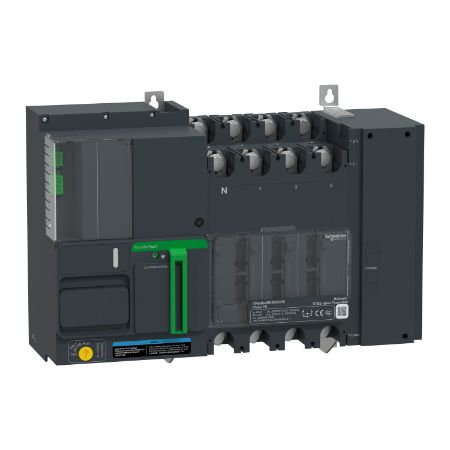

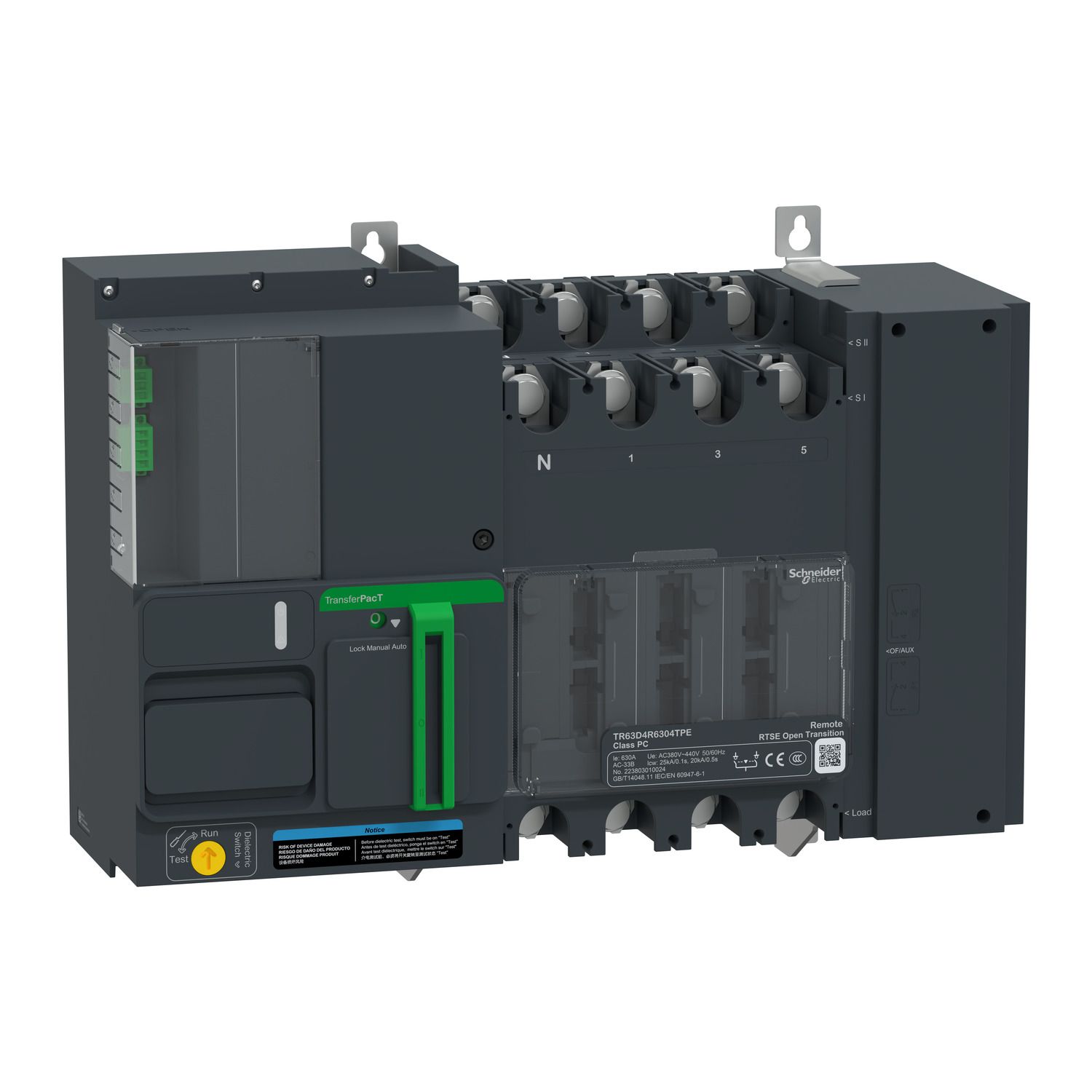

Picture of TransferPacT Remote, 400A, 400V, 4P, Remote, frame 630A
SKU:

TR63D4R4004TPE

TransferPacT Remote, 400A, 400V, 4P, Remote, frame 630A

Old price: $5,764.00 INC GST
$4,611.20 INC GST
Available for Shipping : 25-Feb-2026
Product Selector
TransferPacT Remote, 400A, 400V, 4P, Remote, frame 630A
  • Speedy transfer in less than 500 ms,reduced black out time.
  • dielectric switch for flexible dielectric test.
  • Work with third party controller or PLC.
  • easy view indication for product availibity and mode.
  • simple and intuitive terminals.
  • Space saving as compact design.
  • High utilization category AC-33B full range without derating.
  • High rated short time withstand current Icw=25kA/0.1s,20kA/0.5s.
  • Built-in DPS and sensing wire, 30% commissioning time saving.
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 25-Feb-2026
Instruction sheet
Circularity Profile
CAD
Environmental Disclosure
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
This TR63D4R4004TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage(Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current(Ie) can be loaded 400A(Ie) at 60℃, with 630A frame. This device can be operated manually by the third party control module. This transfer switch provided 3 contact postion auxiliary module embed the front cover by mechanical and electrical indication. It can be fixed on the plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene. This 4poles version is 467mm(width)x341mm(height)x185.8mm(depth). It is compliance with standard IEC 60947-6-1, and certified by CE/CB/CCC.
