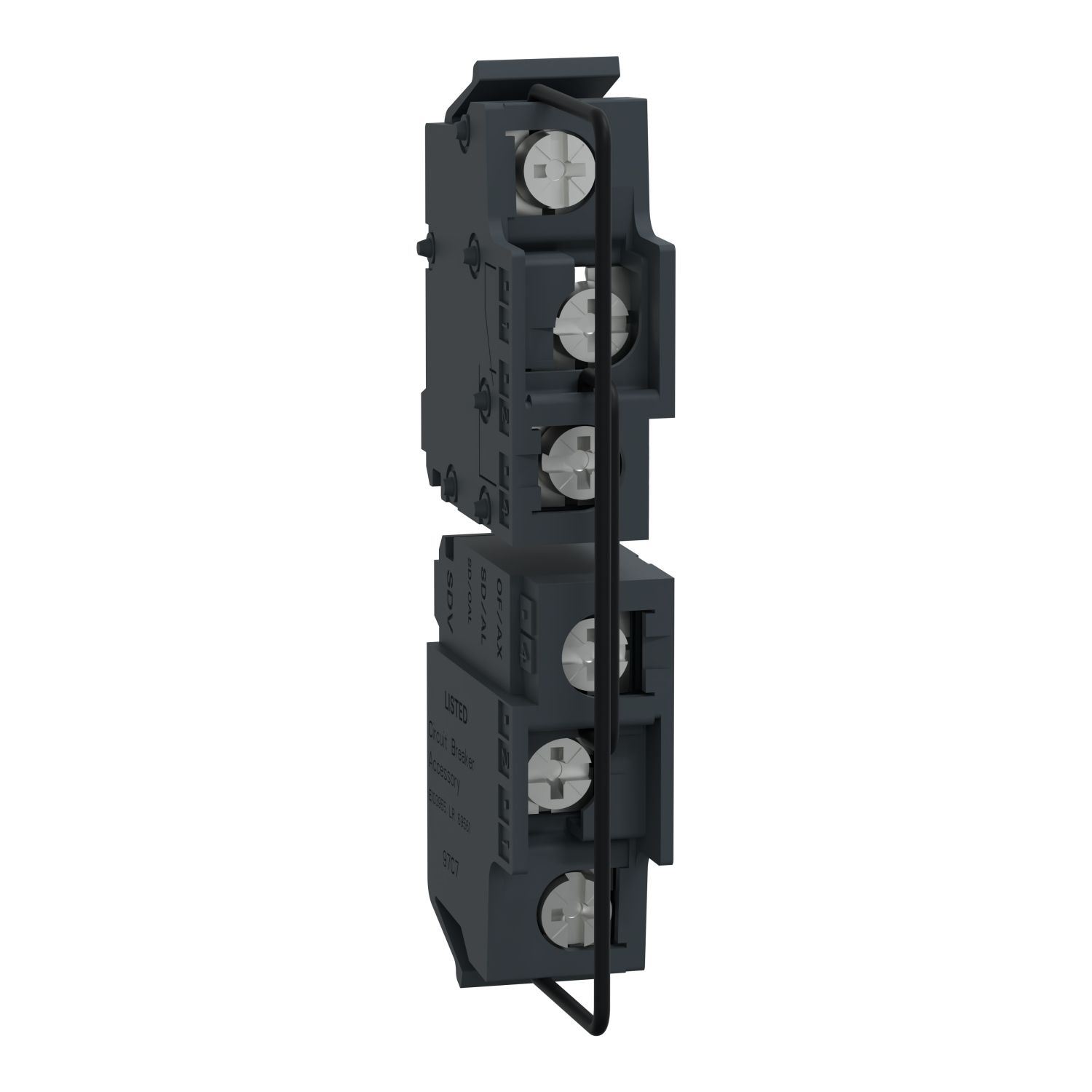

Picture of auxiliary contact, TransferPacT, indication for OFF position, frame 250A, frame 630A
SKU:

TPSAUX44

auxiliary contact, TransferPacT, indication for OFF position, frame 250A, frame 630A

Old price: $111.32 INC GST
$89.06 INC GST
Available for Shipping : 17-Dec-2025
auxiliary contact, TransferPacT, indication for OFF position, frame 250A, frame 630A
  • auxiliary contact for source off position
  • easily add-on
  • customized association
  • clear indication
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-Dec-2025
CAD
Declaration of conformity
Instruction sheet
User guide
Circularity Profile
Catalog
Product Page Link
Product Data Sheet
TPSAUX44 is auxiliary contact as signal accessory used to ATSE in TransferPacT series. It is acted as status indication for switch mechanical position on OFF poisition for TransferPacT transfer switch. This contact compostion of signalling is 2NC+2NO. The minimum load current is provided 100mA@24VDC. It is mounted mode "clip-on" inside of front cover on transfer switch. This spring terminal is fitted with 0.5-1.5 mm²(20-16 AWG) cables.

Products specifications

Attribute name Attribute value
Main
Device application signalling
Product or component type Auxiliary Contact Module
Range of product TransferPacT
Complementary
Minimum load 100 mA at 24 V DC
Product compatibility TR63, TA63, TR25, TA25
Mounting position inside front cover
[Ie] rated operational current AC-15: 0.1 A at 660/690 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 6 A at 48 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 110 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 24 V AC 50/60 Hz
Mounting mode clip-on
Accessory / separate part category signalling accessory
[Ith] conventional free air thermal current 5 A
Auxiliary connection terminal spring 0.5-1.5 mm² (AWG 20...AWG 16)
Tightening torque 0.6 N.m +/- 0.1 N.m
Auxiliary contact composition 2 NO + 2 NC
Signalling function switch position (off)
Environment
IP degree of protection IP20
Pollution degree 3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.700 cm
Package 1 Width 7.000 cm
Package 1 Length 7.700 cm
Package 1 Weight 38.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 658.000 g
