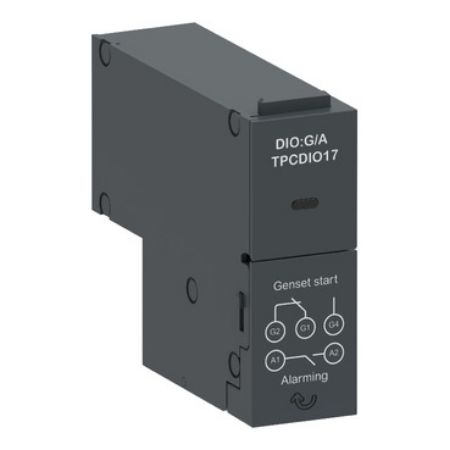

Picture of function module, TransferPacT, genset start and alarm, output signal
SKU:

TPCDIO17

function module, TransferPacT, genset start and alarm, output signal

Old price: $22.00 INC GST
$17.60 INC GST
Available for Shipping : 08-Jan-2026
function module, TransferPacT, genset start and alarm, output signal
  • Start and stop signal for genegrator control
  • Alarm signal for critical situation
  • Time delay engine start
  • Simple add-on module that can be installed any time
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Jan-2026
Environmental Disclosure
User guide
Circularity Profile
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
TPCDIO17 is output module as signalling accessory. This functional module is auxiliary contact for Gen start and alarm signal. The rated operational current(Ie) is 5A @250VAC/30VDC. The start signal prevent dry cranking of the engine by requiring the generator set to reach proper output. It can be run for the duration of the cool down setting, when the normal source restores and load is retransferred to normal. The alarm signal output inform user in case of a critical alarm including phase rotation/transfer failures/Micro-switch all closed/ internal error happened. The capacitor is for time delay engine start that will run before genset start no matter with or without external 24VDC.

Products specifications

Attribute name Attribute value
Main
Device application signalling
Product or component type I/O module
Range of product TransferPacT
Complementary
[Ui] rated insulation voltage 300 V AC
Depth 69 mm
Width 20 mm
Mounting position left-bottom
[Ie] rated operational current 5 A at 30 V DC, 5 A at 250 V AC
Mounting mode plug-in
Accessory / separate part category signalling accessory
Auxiliary connection terminal screw clamp terminal 0.05-2.6 mm²
Tightening torque 0.6 N.m +/- 0.1 N.m
Auxiliary contact composition 2 NO + 1 NC
Height 56.5 mm
Signalling function alarm, Genset start output signal
Environment
IP degree of protection IP20
Pollution degree 3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.600 cm
Package 1 Width 10.600 cm
Package 1 Length 10.800 cm
Package 1 Weight 110.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.500 kg
