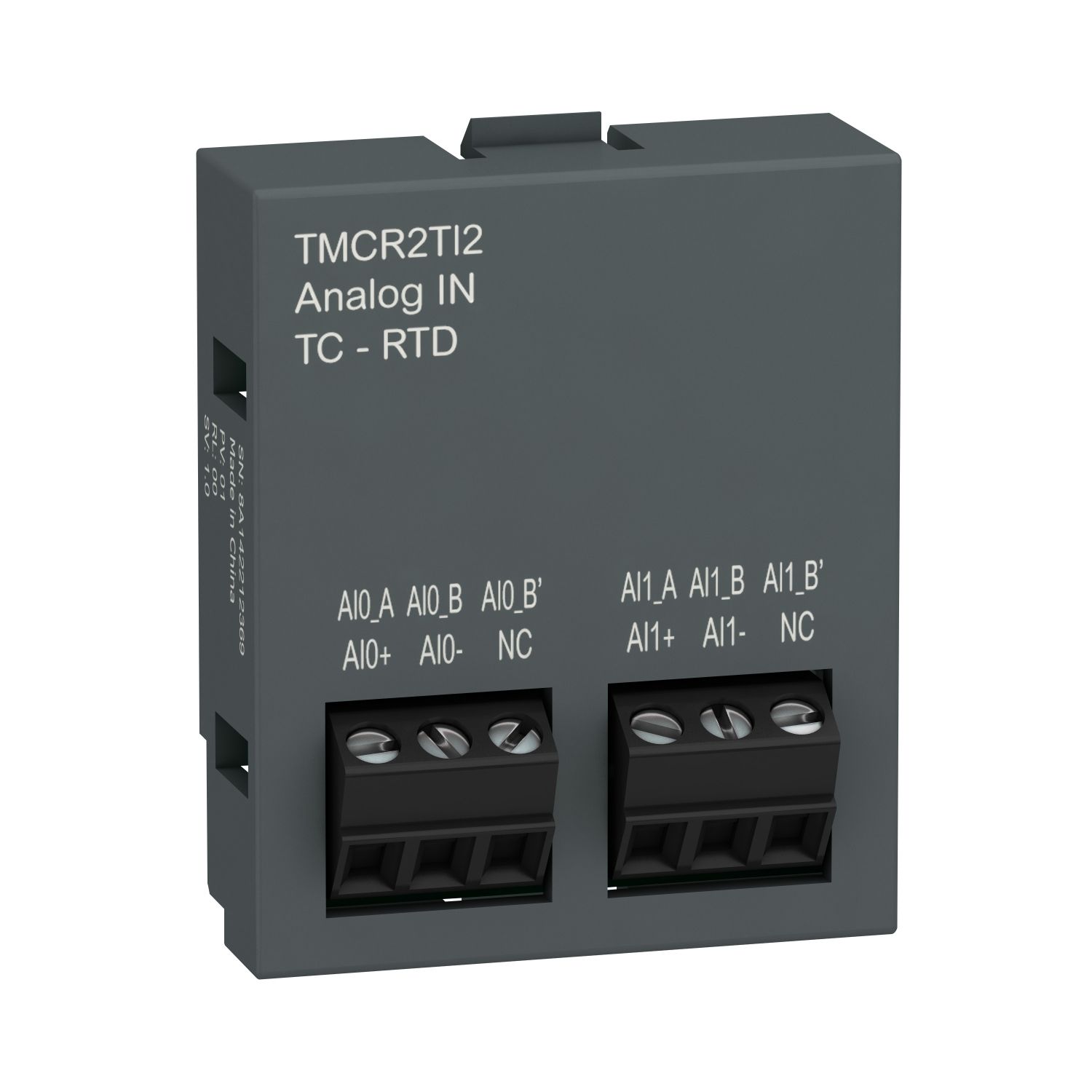

cartridge M200 - 2 temperature inputs - I/O extension

Old price: $173.36 INC GST
$164.69 INC GST
Available for Shipping : 08-Dec-2025
cartridge M200 - 2 temperature inputs - I/O extension
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Environmental Disclosure
Declaration of conformity
User guide
Catalog
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This optional cartridge provides 2 additional temperature inputs to M200 controllers. This IO cartridge provides additional temperature inputs (14bits resolution) to the controller. Its sampling duration is 125ms for thermocouple input and 250ms for temperature probe input. The inputs are wired with twisted shielded pairs cable on the 2 screw terminal blocks of the cartridge. It is 41mm high, 15mm deep, and 35mm wide. It weighs 0.012kg. This optional cartridge provides 2 additional analog inputs to the controller. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This cartridge is an optional part of Modicon M200 logic controller. It installs in a specific slot on controller, when removing the cartridge cover. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

Products specifications

Attribute name Attribute value
Main
Product compatibility Easy Modicon M200
Analogue input number 2
Product or component type analogue input cartridge
Range of product Easy Modicon M200
Complementary
Analogue input type thermocouple 0...2315 °C with thermocouple C,  thermocouple - 200...800 °C with thermocouple E,  thermocouple - 200...1300 °C with thermocouple N,  thermocouple - 200...400 °C with thermocouple T,  thermocouple 0...1820 °C with thermocouple B,  thermocouple 0...1760 °C with thermocouple S,  thermocouple 0...1760 °C with thermocouple R,  thermocouple - 200...1300 °C with thermocouple K, Pt 1000 temperature probe - 200...600 °C, Pt 100 temperature probe - 200...850 °C, Ni 100/Ni 1000 temperature probe - 60...180 °C,  thermocouple - 200...1000 °C with thermocouple J
Repeat accuracy +/- 0.5 %FS
Sampling duration 250 ms, analogue input type: temperature probe, 125 ms, analogue input type: thermocouple
Insulation non-insulated between analogue input and internal logic
Depth 15 mm
Width 35 mm
Cross talk <= 1 LSB
Temperature drift +/- 0.02 %FS/°C
Absolute accuracy error +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C, +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C, +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C, +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C, +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C, +/- 0.1 % of full scale for thermocouple C, +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C, +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C, +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe
Type of cable twisted shielded pairs cable
Net weight 0.012 kg
Analogue input resolution 14 bits
LSB value 0.1 °C
Non-linearity +/- 0.01 %FS
Input impedance >= 1 MOhm
Height 41 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for input
Electrical connection 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
Environment
Immunity to microbreaks 10 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 4.800 cm
Package 1 Length 7.000 cm
Package 1 Weight 33.000 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.735 kg
Unit Type of Package 3 3
Number of Units in Package 3 1200
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 51.760 kg
