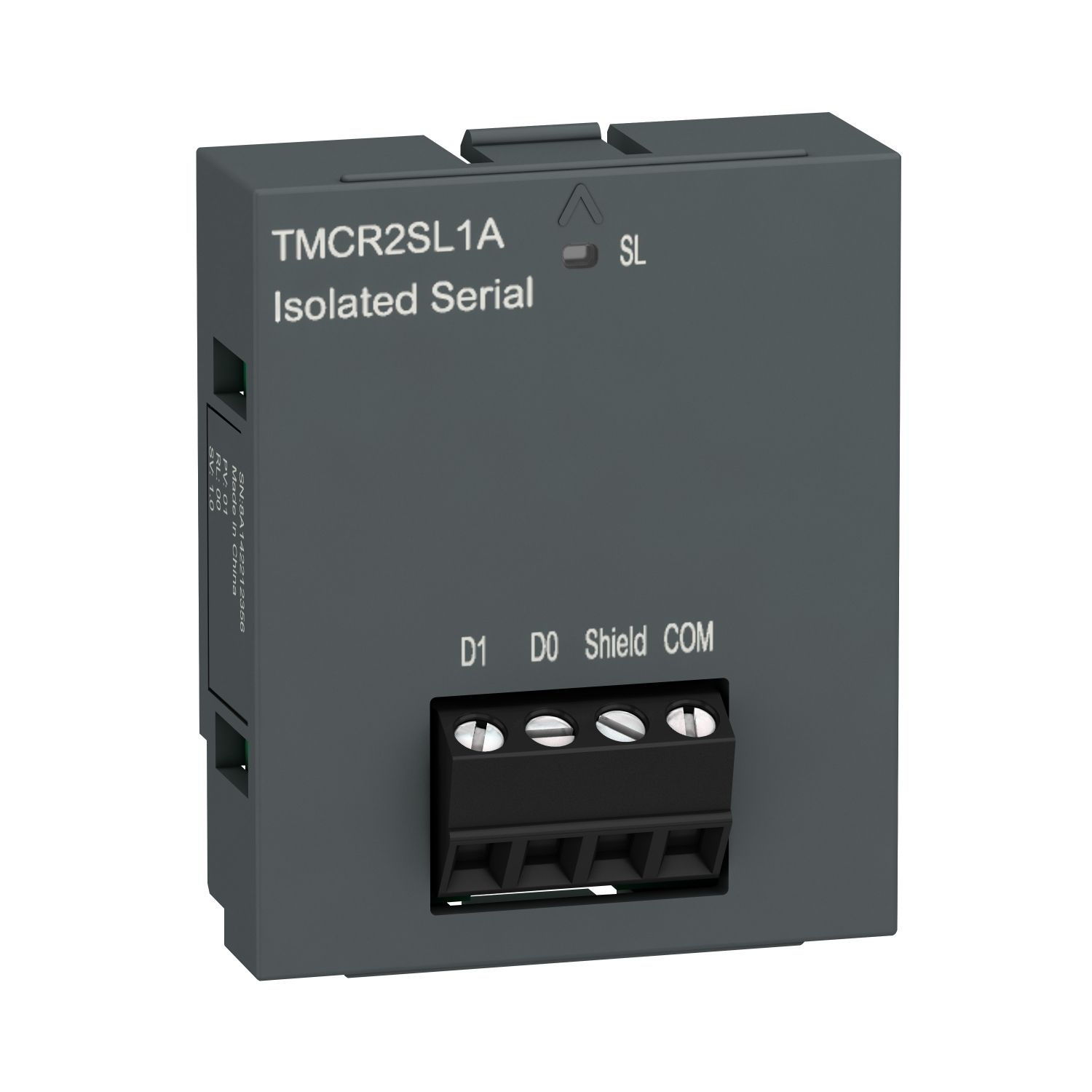

Picture of cartridge M200 - 1 isolation serial link - RS485 -communication extension
SKU:

TMCR2SL1A

cartridge M200 - 1 isolation serial link - RS485 -communication extension

Old price: $173.36 INC GST
$164.69 INC GST
Available for Shipping : 16-Dec-2025
cartridge M200 - 1 isolation serial link - RS485 -communication extension
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Environmental Disclosure
Declaration of conformity
User guide
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This optional cartridge provides one communication channel to M200 controllers. The additional communication channel is a RS485 serial link. This Serial link cartridge cartridge provides one additional communication channel to M200 controllers. Its data transmission rate varies from 1.2 to 115.2kbit/s (115.2kbit/s by default) for bus length of 15m for RS485. The cartridge connection type is screw terminal block for RS485. It is 41mm high, 15mm deep, and 35mm wide. It weighs 0.014kg. This optional cartridge provides 1 SL communication channel to the controller. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This cartridge is an optional part of Modicon M200 logic controller. It installs in a specific slot on controller, when removing the cartridge cover. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

Products specifications

Attribute name Attribute value
Main
Product compatibility Easy Modicon M200
Range of product Easy Modicon M200
Product or component type serial line cartridge
Complementary
Insulation between lines and internal logic at 500 V DC
Communication port protocol isolated serial link: Modbus master/slave - RTU/ASCII
Transmission rate 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485
Height 41 mm
Depth 15 mm
Width 35 mm
Integrated connection type isolated serial link - screw terminal block for RS485
Net weight 0.014 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5 cm
Package 1 Width 6.3 cm
Package 1 Length 8.9 cm
Package 1 Weight 41.5 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 1663.5 g
Unit Type of Package 3 3
Number of Units in Package 3 1536
Package 3 Height 95 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 88848 g
