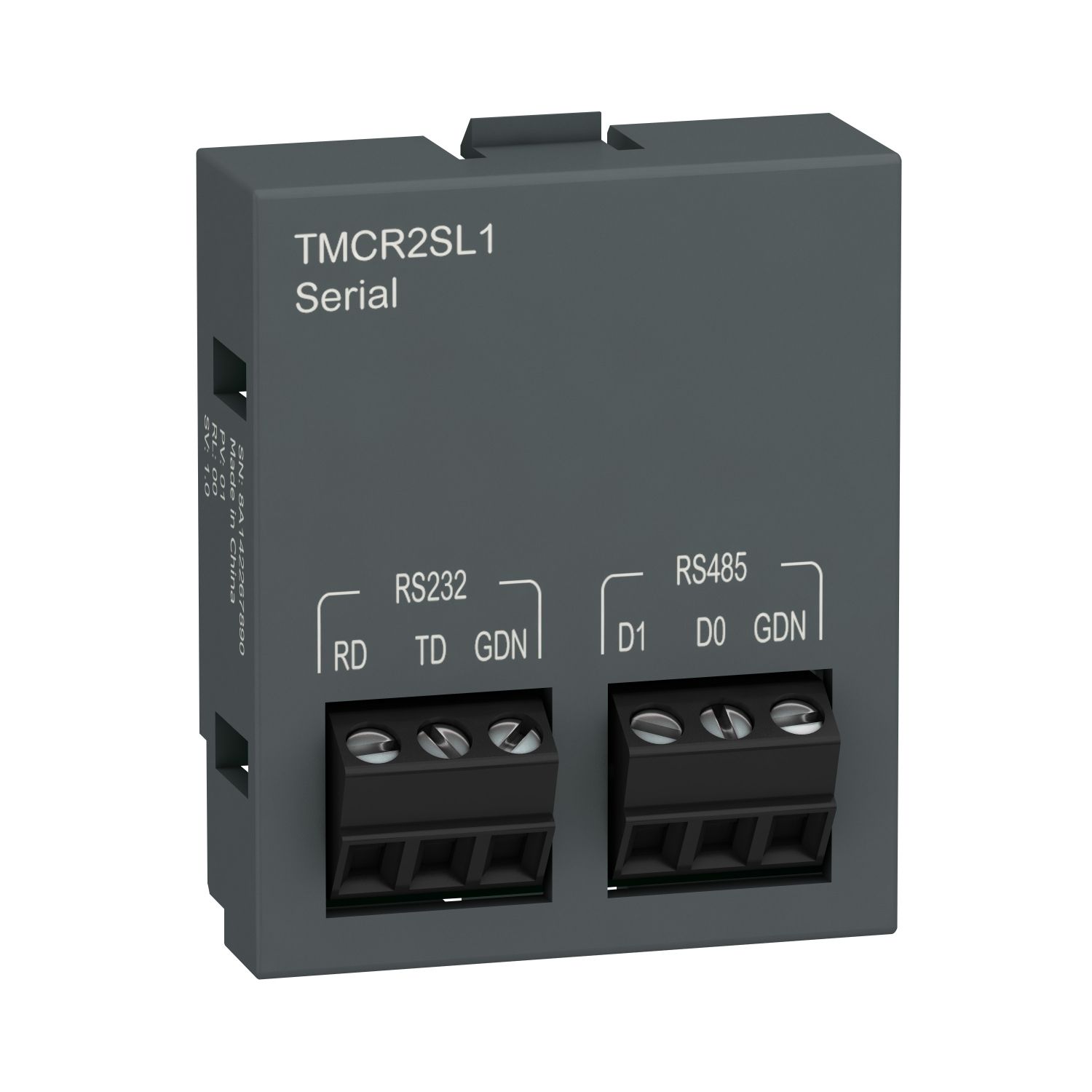

Picture of cartridge M200 - 1 serial line - communication extension
SKU:

TMCR2SL1

cartridge M200 - 1 serial line - communication extension

Old price: $173.36 INC GST
$164.69 INC GST
Available for Shipping : 06-Jan-2026
cartridge M200 - 1 serial line - communication extension
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Environmental Disclosure
User guide
Declaration of conformity
Catalog
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This optional cartridge provides one communication channel to M200 controllers. The additional communication channel is a RS232C or RS485 serial link. This Serial link cartridge cartridge provides one additional communication channel to M200 controllers. Its data transmission rate varies from 1.2 to 115.2 kbit/s (115.2kbit/s by default) for bus length of 15m on RS485 and for bus length of 3m on RS232C. The cartridge connection type is screw terminal block for RS232 and RS485. It is 41mm high, 15mm deep, and 35mm wide. It weighs 0.012kg. This optional cartridge provides 1 SL communication channel to the controller. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This cartridge is an optional part of Modicon M200 logic controller. It installs in a specific slot on controller, when removing the cartridge cover. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

Products specifications

Attribute name Attribute value
Main
Product compatibility Easy Modicon M200
Range of product Easy Modicon M200
Product or component type serial line cartridge
Complementary
Insulation non-insulated between lines and internal logic
Communication port protocol non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
Transmission rate 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232C, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485
Height 41 mm
Depth 15 mm
Width 35 mm
Integrated connection type non isolated serial link - screw terminal block for RS485, non isolated serial link - screw terminal block for RS232
Net weight 0.012 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.6 cm
Package 1 Width 7.0 cm
Package 1 Length 3.5 cm
Package 1 Weight 20.0 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.07 kg
Unit Type of Package 3 3
Number of Units in Package 3 1200
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 57 kg
