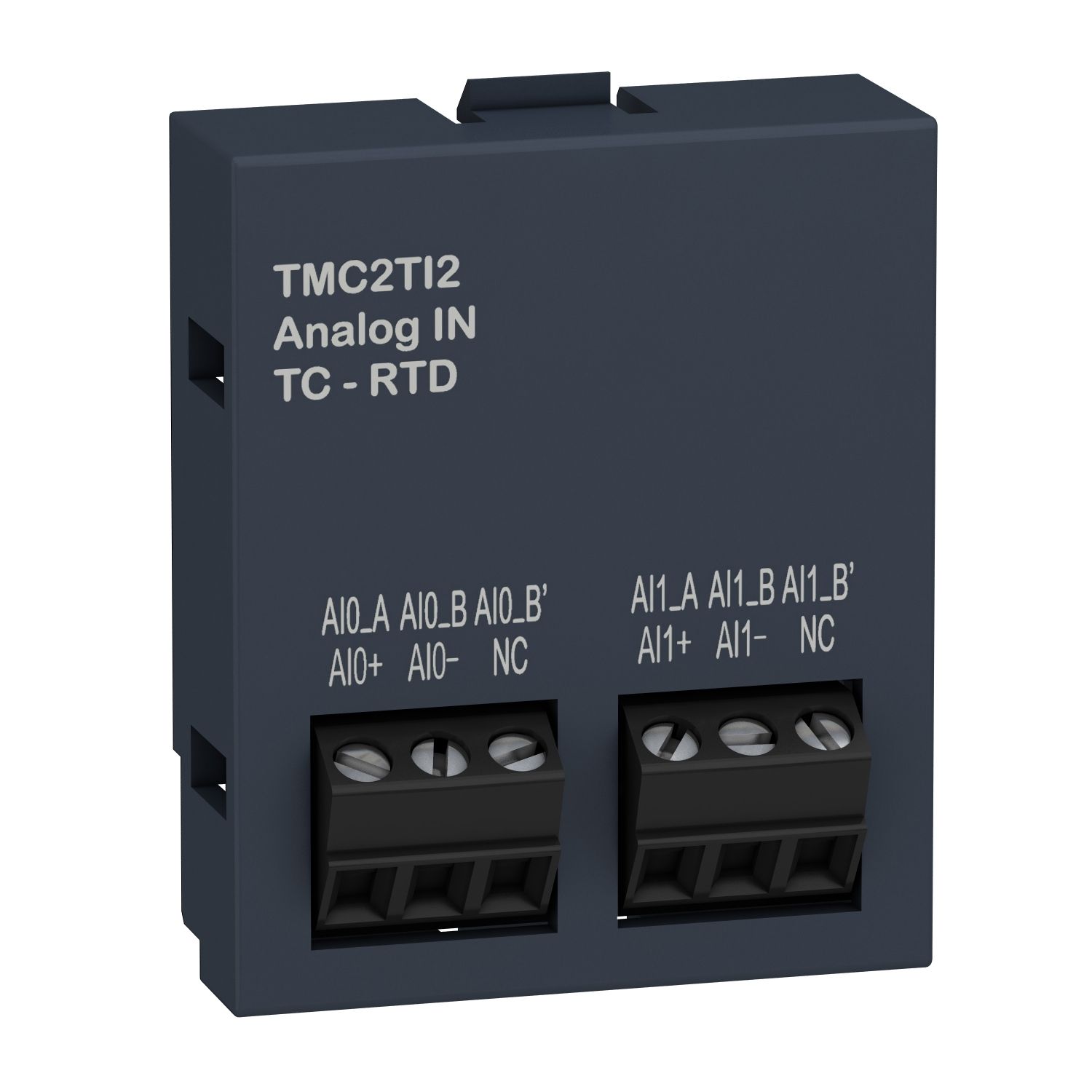

Picture of Modicon M221, Analogue input cartridge, 2 temperature inputs, I/O extension
SKU:

TMC2TI2

Modicon M221, Analogue input cartridge, 2 temperature inputs, I/O extension

$211.02 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Modicon M221, Analogue input cartridge, 2 temperature inputs, I/O extension
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
Environmental Disclosure
Catalog
User guide
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 temperature inputs with 14bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Products specifications

Attribute name Attribute value
Main
Product compatibility Modicon M221C
Analogue input number 2
Product or component type analogue input cartridge
Range of product Modicon M221
Complementary
Analogue input type thermocouple 0...2315 °C with thermocouple C,  thermocouple - 200...800 °C with thermocouple E,  thermocouple - 200...1300 °C with thermocouple N,  thermocouple - 200...400 °C with thermocouple T,  thermocouple 0...1820 °C with thermocouple B,  thermocouple 0...1760 °C with thermocouple S,  thermocouple 0...1760 °C with thermocouple R,  thermocouple - 200...1300 °C with thermocouple K, Pt 1000 temperature probe - 200...600 °C, Pt 100 temperature probe - 200...850 °C, Ni 100/Ni 1000 temperature probe - 60...180 °C,  thermocouple - 200...1000 °C with thermocouple J
Repeat accuracy +/- 0.5 %FS
Sampling duration 250 ms, analogue input type: temperature probe, 125 ms, analogue input type: thermocouple
Insulation non-insulated between analogue input and internal logic
Depth 15 mm
Width 35 mm
Cross talk <= 1 LSB
Temperature drift +/- 0.02 %FS/°C
Absolute accuracy error +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C, +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C, +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C, +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C, +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C, +/- 0.1 % of full scale at 25 °C for thermocouple C 0...2315 °C, +/- 0.1 % of full scale at 25 °C for thermocouple R, S 200...1760 °C, +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C, +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C, +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C, +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe
Type of cable twisted shielded pairs cable
Net weight 0.015 kg
Analogue input resolution 14 bits
LSB value 0.1 °C
Non-linearity +/- 0.01 %FS
Input impedance >= 1 MOhm
Height 41 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for input
Electrical connection 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
Environment
Immunity to microbreaks 10 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 4.500 cm
Package 1 Length 7.000 cm
Package 1 Weight 40.000 g
Unit Type of Package 2 2
Number of Units in Package 2 150
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.323 kg
Unit Type of Package 3 3
Number of Units in Package 3 2400
Package 3 Height 100.000 cm
Package 3 Width 125.000 cm
Package 3 Length 55.000 cm
Package 3 Weight 131.160 kg
