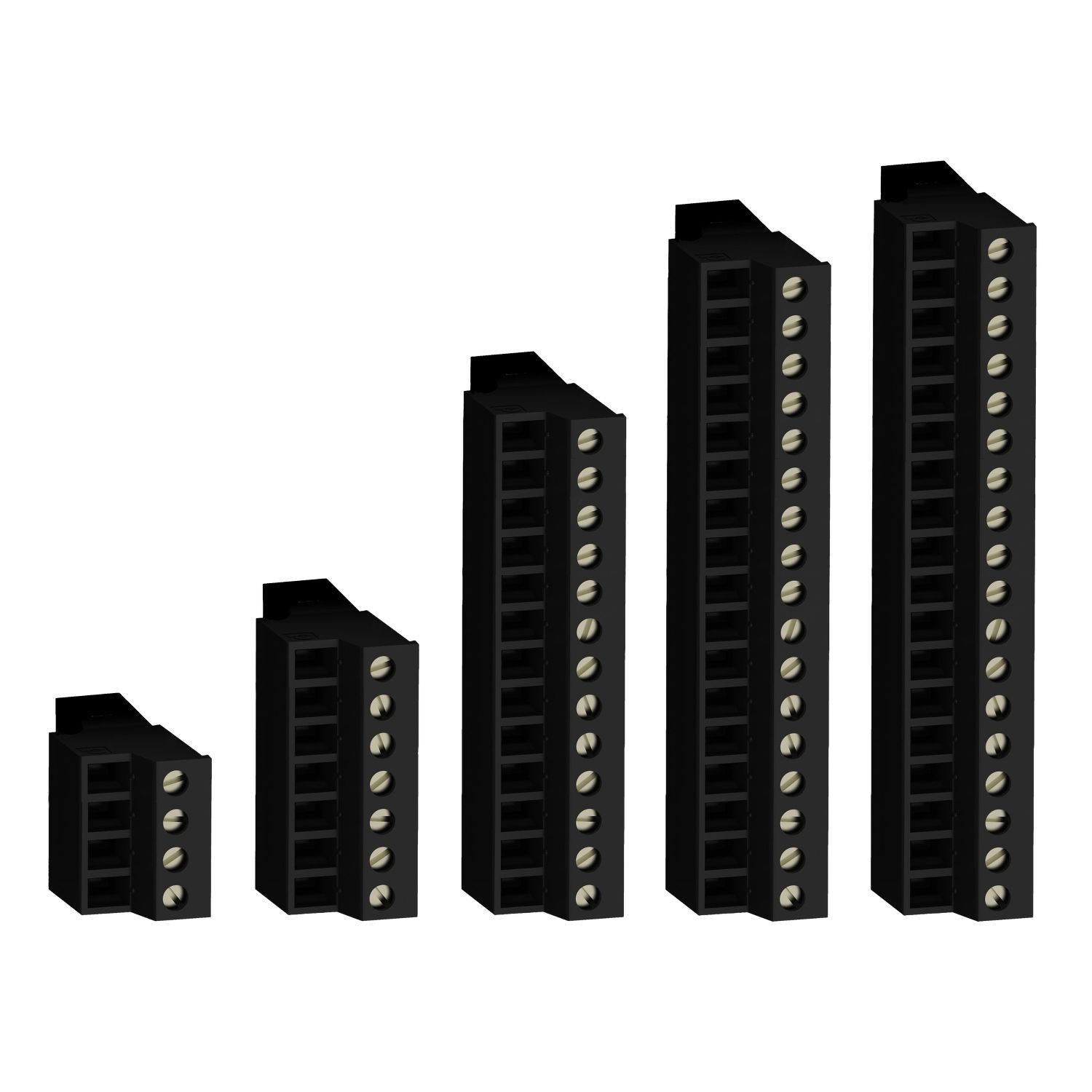

Picture of connector set for M241 - IO
SKU:

TMAT4CSET

connector set for M241 - IO

$128.02 INC GST
Available for Shipping : 12-Jan-2026
connector set for M241 - IO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
connector set for M241 - IO This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This connector set is dedicated to Modicon M241 logic controllers. It is composed of 8 removable connectors with screw terminals to connect to the serial line, to the I/O and to the CANopen bus. It weighs 0.127kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. The pack of this set contains 1 terminal block connector and 7 Molex connectors.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type screw terminal block
Product or component type terminal block
Accessory / separate part category connection accessories
Complementary
Accessory / separate part destination Modicon M241
Product compatibility logic controller
Number of connectors 7 Molex connector(s), 1 terminal block connector(s)
Range compatibility Modicon M241
Electrical connection Molex removable screw terminalsfor inputs/outputs, Molex removable screw terminalsfor serial communication,  removable screw terminal blockfor connection to the CANopen bus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 8.000 cm
Package 1 Length 10.000 cm
Package 1 Weight 140.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.055 kg
