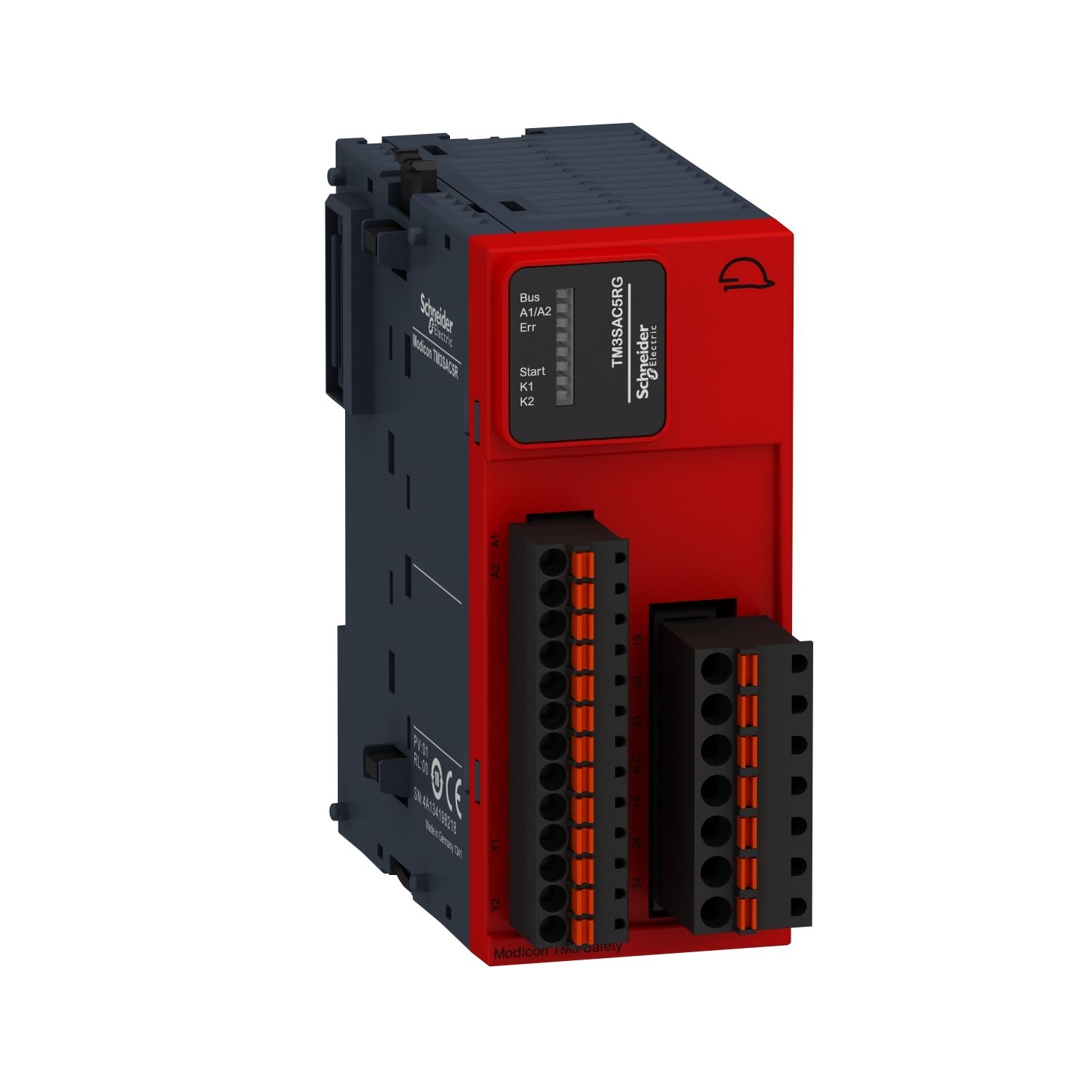

Picture of Modicon TM3, Safety module, 1 Function, Cat 3 PL d/SIL CL2 (spring) 24 VDC
SKU:

TM3SAC5RG

Modicon TM3, Safety module, 1 Function, Cat 3 PL d/SIL CL2 (spring) 24 VDC

$631.62 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Modicon TM3, Safety module, 1 Function, Cat 3 PL d/SIL CL2 (spring) 24 VDC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Declaration of conformity
Instruction sheet
Catalog
User guide
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This TM3 safety expansion module monitors emergency shutdown pushbuttons and limit switches to conform to PLd / Category 3. It meets the requirements of PL d/Category 3 conforming to EN/ISO 13849-1 and SILCL 2 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has spring terminals for fast and reliable wiring of safety circuits.

Products specifications

Attribute name Attribute value
Main
Device short name TM3SAC
Function of module monitoring of a movable guard with 2 switches and automatic start, emergency stop monitoring 2-channel wiring, emergency stop monitoring 1-channel wiring
Safety module application for emergency stop and switch monitoring
Range of product Modicon TM3 Safety
Safety level can reach SIL 2 conforming to IEC 61508: 2010, can reach SILCL 2 conforming to IEC 62061: 2005, can reach PL d/category 3 conforming to ISO 13849-2: 2012, can reach PL d/category 3 conforming to ISO 13849-1: 2008
Product or component type safety module
Complementary
Maximum response time on input open 40 ms
Input protection type internal, electronic
Safety reliability data MTTFd = 85 years conforming to ISO 13849-1, MTTFd = 500 years conforming to ISO 13849-1, PFHd = 30E-9 1/h conforming to IEC 61508-1, PFHd = 5E-9 1/h conforming to IEC 61508-1, type = A conforming to IEC 61508-1, HFT = 1 conforming to IEC 61508-1, SFF = 95 % conforming to IEC 61508-1, DC = 95 % conforming to ISO 13849-1
Maximum switching voltage 24 V utilisation category DC-13 (relay instantaneous opening), 230 V utilisation category AC-15 at 50 Hz (relay instantaneous opening)
[Us] rated supply voltage 24 V - 15...20 % DC
Associated fuse rating 6 A fast blow for relay output conforming to IEC 60947-5-1, 4 A gG or gL for relay output conforming to IEC 60947-5-1
Marking EFUP 10, TÜV, UL, RCM, CE, EAC, CSA
Electromagnetic compatibility radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011, radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4, magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
Connections - terminals captive spring terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals, captive spring terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals, captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals, captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals, captive spring terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34
Output thermal current 6 A per relay for relay output
Standards EN 50581:2012, IEC 61010-1:2010, IEC 60204-1:2009/A1, IEC 60204-1:2005, IEC 61131-2:2007, IEC 60947-5-1:2010, IEC 61508:2010, IEC 62061:2005, ISO 13849-2:2012, ISO 13849-1:2008
Height 94 mm
Breaking capacity 4 A 24 V 50 ms DC-13 relay output, 3600 VA inrush AC-15 B300 relay output, 360 VA holding AC-15 B300 relay output
Maximum cable distance between devices 30 m
Synchronisation time between inputs unlimited
Depth 73 mm
Number of safety circuits 3 NO for relay instantaneous opening
Width 43.7 mm
Electrical connection spring terminal
Local signalling 6 LEDs (green/red) for user
Mounting support wall mount using attached fasteners, top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to IEC 60647-5-1
Output type relay instantaneous opening, 3 NO circuit(s), potential free
Current consumption 100 mA at 24 V DC external supply
Net weight 0.19 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to IEC 60647-5-1
[Ith] conventional free air thermal current 18 A
Minimum output current 10 mA for relay output
[Uc] control circuit voltage 24 V DC
Power consumption in W 3.6 W at 24 V DC, 0.2 W at 5 V DC
Output voltage 10 V relay output
Product certifications RCM, ANSI Haz Loc Class 1 Division 2 (pending), CSA Haz Loc Class 1 Division 2 (pending), EAC, TÜV, CSA 61010-2-201 (pending), UL 61010-2-201
Environment
Resistance to fast transients 2 kV for I/O lines conforming to IEC 61000-4-4, 3 kV for power lines (DC) (DC) conforming to IEC 61000-4-4
Mechanical robustness bumps 6 ms 300 shocks (25 gn) conforming to IEC 60068-2-27
Resistance to electrostatic discharge 6 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
Surge withstand 1 kV power lines (DC) common mode conforming to IEC 61000-4-5 DC, 1 kV power lines (DC) differential mode conforming to IEC 61000-4-5 DC
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Resistance to magnetic fields 30 A/m 50/60 Hz conforming to IEC 61000-4-8
IP degree of protection IP20 (terminals) conforming to IEC 60529
Pollution degree 2
Ambient air temperature for operation -10-55 °C horizontal installation
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 57 dBµV/m class A ( 24 V DC) at 230-1000 Hz conforming to IEC 61131-3, radiated emissions - test level: 50 dBµV/m class A ( 24 V DC) at 30-230 Hz conforming to IEC 61131-3
Operating altitude 0...2000 m
Vibration resistance +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Storage altitude 0-3000 m
Standards IEC 60947-5-1, EN 1088/ISO 14119, ISO 13850, IEC 60204-1, IEC 60947-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 10.600 cm
Package 1 Length 12.500 cm
Package 1 Weight 269.000 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.337 kg

Related products

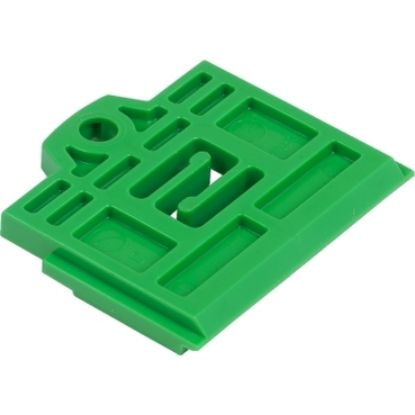

Picture of Modicon M221, Panel mounting kit, for M221 controllers and TM3 modules
