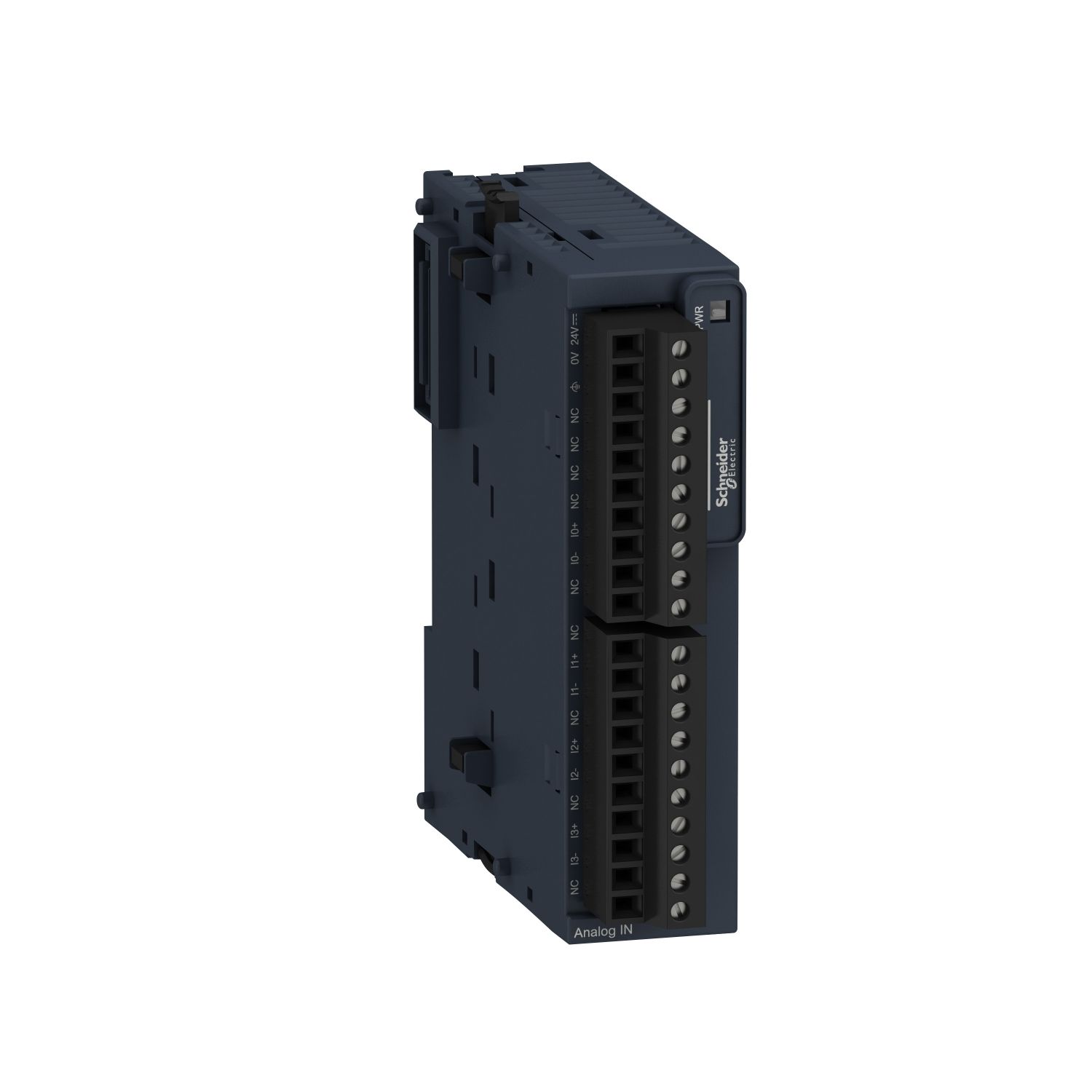

Picture of Modicon TM3, Analog input module, 4 inputs (screw) 24 VDC
SKU:

TM3AI4

Modicon TM3, Analog input module, 4 inputs (screw) 24 VDC

$545.71 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
Modicon TM3, Analog input module, 4 inputs (screw) 24 VDC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Environmental Disclosure
Circularity Profile
Catalog
Declaration of conformity
CAD
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 4 inputs with 12bit + sign and 11bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 35mA at 5V DC via bus connector no load, 45mA at 5V DC via bus connector full load, 30mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon TM3
Analogue input type voltage - 10...10 V, voltage 0...10 V, current 0...20 mA, current 4...20 mA
Range compatibility Modicon M262, Modicon M251, Modicon M241, Modicon M221
Analogue input number 4
Product or component type analog input module
Complementary
Insulation between input and internal logic at 500 V AC, between input and supply at 1500 V AC
Surge withstand 1 kV input common mode conforming to IEC 61000-4-5, 0.5 kV power supply differential mode conforming to IEC 61000-4-5, 1 kV power supply common mode conforming to IEC 61000-4-5
Supply voltage limits 20.4-28.8 V
Temperature drift +/- 0.006 %FS/°C
Conversion time 1 ms + 1 ms per channel + 1 controller cycle time
Marking CE
Permissible continuous overload 40 mA, analogue input type: current, 13 V, analogue input type: voltage
Type of cable twisted shielded pairs cable <30 m for input circuit
Height 90 mm
Electrical connection 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply
Repeat accuracy +/-0.5 %FS
Sampling duration 1 ms
[Us] rated supply voltage 24 V DC
Depth 70 mm
Width 23.6 mm
Cross talk <= 1 LSB
Local signalling 1 LED (green) for PWR
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Current consumption 30 mA at 24 V DC via external supply, 45 mA at 5 V DC via bus connector full load, 35 mA at 5 V DC via bus connector no load
Absolute accuracy error +/- 1 % of full scale, +/- 0.1 % of full scale at 25 °C
Net weight 0.11 kg
Analogue input resolution 11 bits + sign, 12 bits
LSB value 3.91 µA 4...20 mAcurrent, 4.88 µA 0...20 mAcurrent, 4.88 mV - 10...10 Vvoltage, 2.44 mV 0...10 Vvoltage
Non-linearity +/- 0.2 %FS
Input impedance >= 1 MOhm voltage, <= 50 Ohm current
Environment
Resistance to fast transients 1 kV (I/O) conforming to IEC 61000-4-4
IP degree of protection IP20
Resistance to electrostatic discharge 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Resistance to magnetic fields 30 A/m conforming to IEC 61000-4-8
Pollution degree 2
Ambient air temperature for operation -10-35 °C vertical installation, -10-55 °C horizontal installation
Immunity to microbreaks 10 ms
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Standards IEC 61131-2
Product certifications cULus HazLoc, cULus, EAC, RCM, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.585 cm
Package 1 Width 10.598 cm
Package 1 Length 12.814 cm
Package 1 Weight 210.0 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 10.08 kg
Unit Type of Package 3 3
Number of Units in Package 3 504
Package 3 Height 105 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 132 kg
