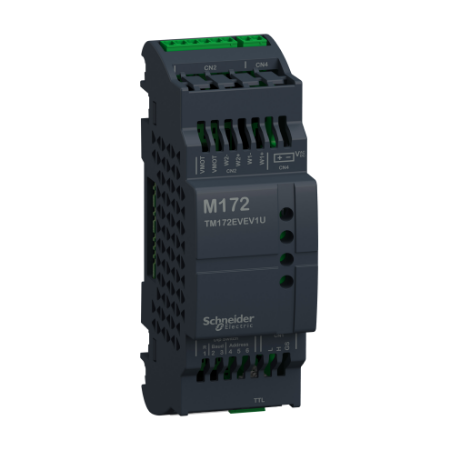

Picture of M172 Expansion 1 EEV Driver Unipolar
SKU:

TM172EVEV1U

M172 Expansion 1 EEV Driver Unipolar

$214.41 INC GST
Available for Shipping : 15-Jan-2026

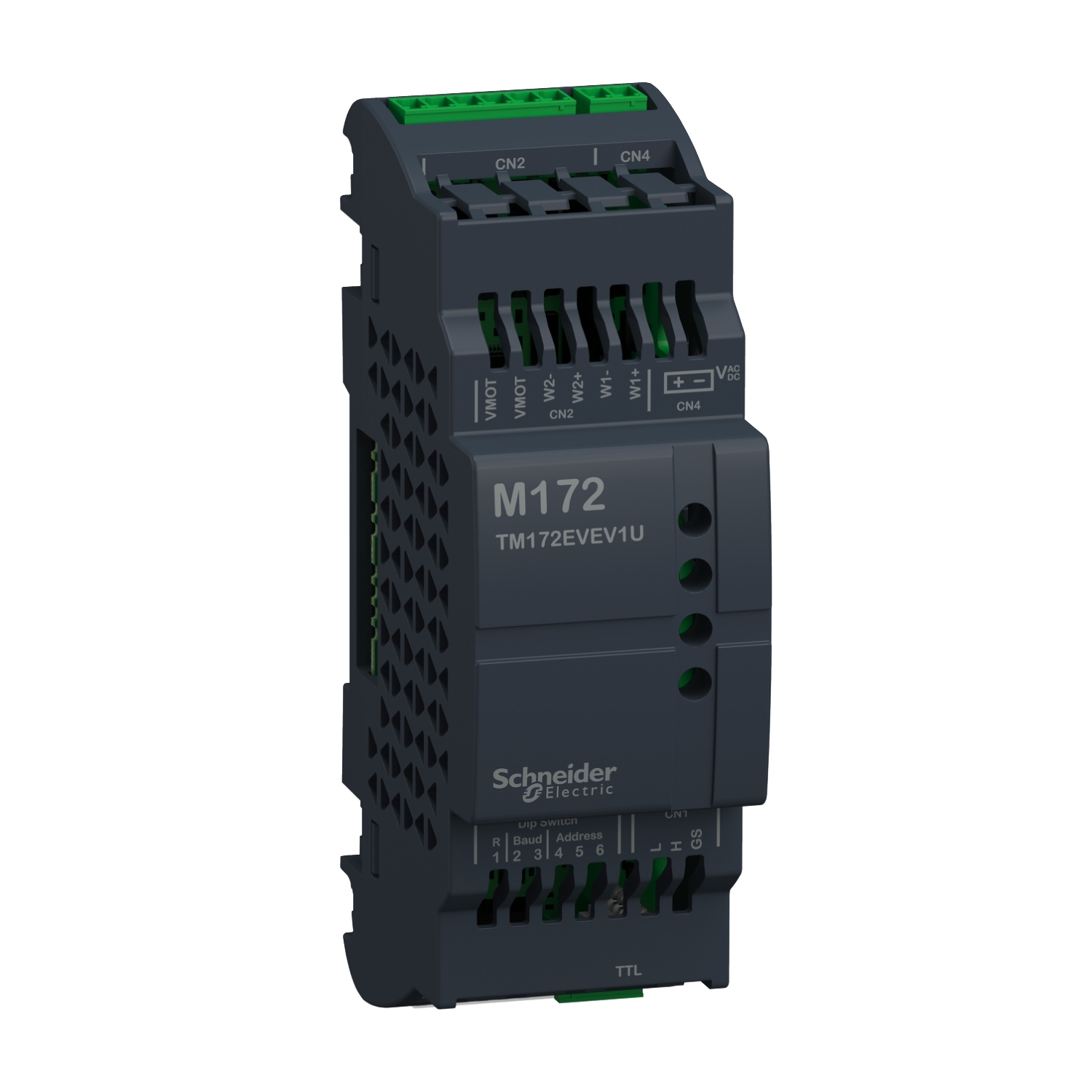

M172 Expansion 1 EEV Driver Unipolar
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Jan-2026
Brochure
Environmental Disclosure
Circularity Profile
User guide
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This driver belongs to Modicon M171/M172 range of controllers. It is an electronic expansion valve drivers for single valve, unipolar, and communicate with controllers via CAN expansion bus. It figures one CAN port and one removable 3-way screw connector. It is supplied with screw terminal blocks. its power consumption is 9W at 24V DC. It weighs 0.087kg. It measures 36mm wide, 113mm high, 60mm deep. It is designed to control electronic expansion valves used in various types of refrigeration systems. It is certified CE, UL, CSA, EAC, RoHS China. It is compatible with Modicon M172 Optimized and Modicon M172 Performance logic controllers.

Products specifications

Attribute name Attribute value
Main
Product or component type expansion unit
Range of product Modicon M171/M172
Complementary
Maximum power consumption in VA 12 VA at 24 V AC
Depth 60 mm
Overvoltage category I
Display type without display
Width 36 mm
[Us] rated supply voltage 20...38 V DC, 24 V +/- 10 % AC
Number of port 1 CAN port - 1 removable 3-way screw connector
Net weight 0.087 kg
Mounting support DIN rail
Height 113 mm
Power consumption in W 9 W at 24 V DC
Environment
IP degree of protection IP20
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -30-70 °C
Ambient air temperature for operation -20-65 °C
Pollution degree 2
Standards UL94 (material V0), EN 60068-2-6 Fc, EN 60068-2-27, IEC 6100-4-11, IEC 6100-4-6, IEC 6100-4-5, IEC 6100-4-4, IEC 6100-4-3, IEC 6100-4-2, CSA E60730-2-9, CAN/CSA-E60730-1, UL 60730-2-9, UL 60730-1, EN 60730-2-9, EN 60730-1
Product certifications cURus, RCM, EAC, CSA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.300 cm
Package 1 Width 9.000 cm
Package 1 Length 12.700 cm
Package 1 Weight 162.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.565 kg
