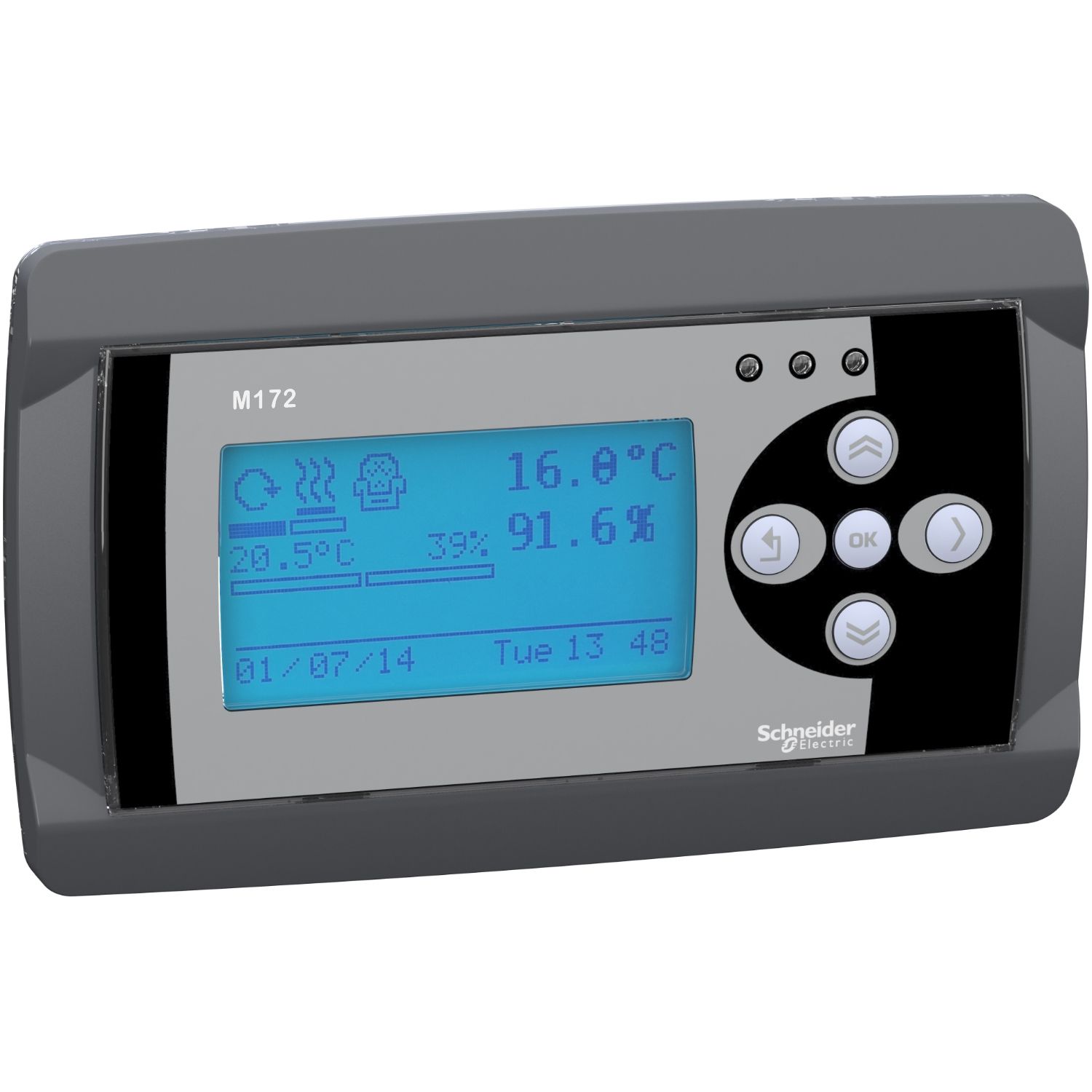

Picture of Modicon M172 Performance Display Graphic
SKU:

TM172DGRP

Modicon M172 Performance Display Graphic

$591.69 INC GST
Available for Shipping : 06-Jan-2026
Modicon M172 Performance Display Graphic
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Brochure
Instruction sheet
Catalog
Circularity Profile
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
This display belongs to Modicon M171/M172 range of HVAC controllers. This display module features a backlit LCD display with 240 x 140 pixels resolution. The number of keys in the display module is 5. This remote monochrome display is dedicated to the M172 Optimized and M172 Performance logic controllers. It has a monochrome backlit LCD screen with 240 x 140 pixels reolution. It embeds a real time clock. Its dimensions are 90mm (width) x 27mm (depth) x 160mm (height). It weighs 0.197kg. It is remote display for blind Modicon M172 logic controllers. This product is certified by CE, cURus (UL Recognized), CSA, EAC, RCM, RoHS China. This remote monochrome display is dedicated to the M172 Optimized and M172 Performance logic controllers. It mounts on 35mm DIN rail, or on panel with TM172AP12PM mounting accessory. Modicon M171/M172 controllers is the best choice for complete automation solutions for HVAC machines. Modicon M171 and M172 logic controllers are designed for HVAC OEMs and help them to maximize profitability and energy efficiency.

Products specifications

Attribute name Attribute value
Main
Display colour monochrome
Range of product Modicon M171/M172
Product or component type display module
Supply external source
Complementary
Product compatibility logic controller M171 performance
Display type backlit LCD
Number of key 5
Colour grey
[Us] rated supply voltage 24 V AC/DC
Marking CE
Power consumption in W 2 W
Height 160 mm
Depth 27 mm
Realtime clock with clock
Width 90 mm
Local signalling 3 LEDs (green)
Net weight 0.197 kg
Display resolution 128 x 64 pixels
Environment
Standards UL 94
Product certifications cURus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.400 cm
Package 1 Width 9.300 cm
Package 1 Length 18.700 cm
Package 1 Weight 262.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.823 kg
