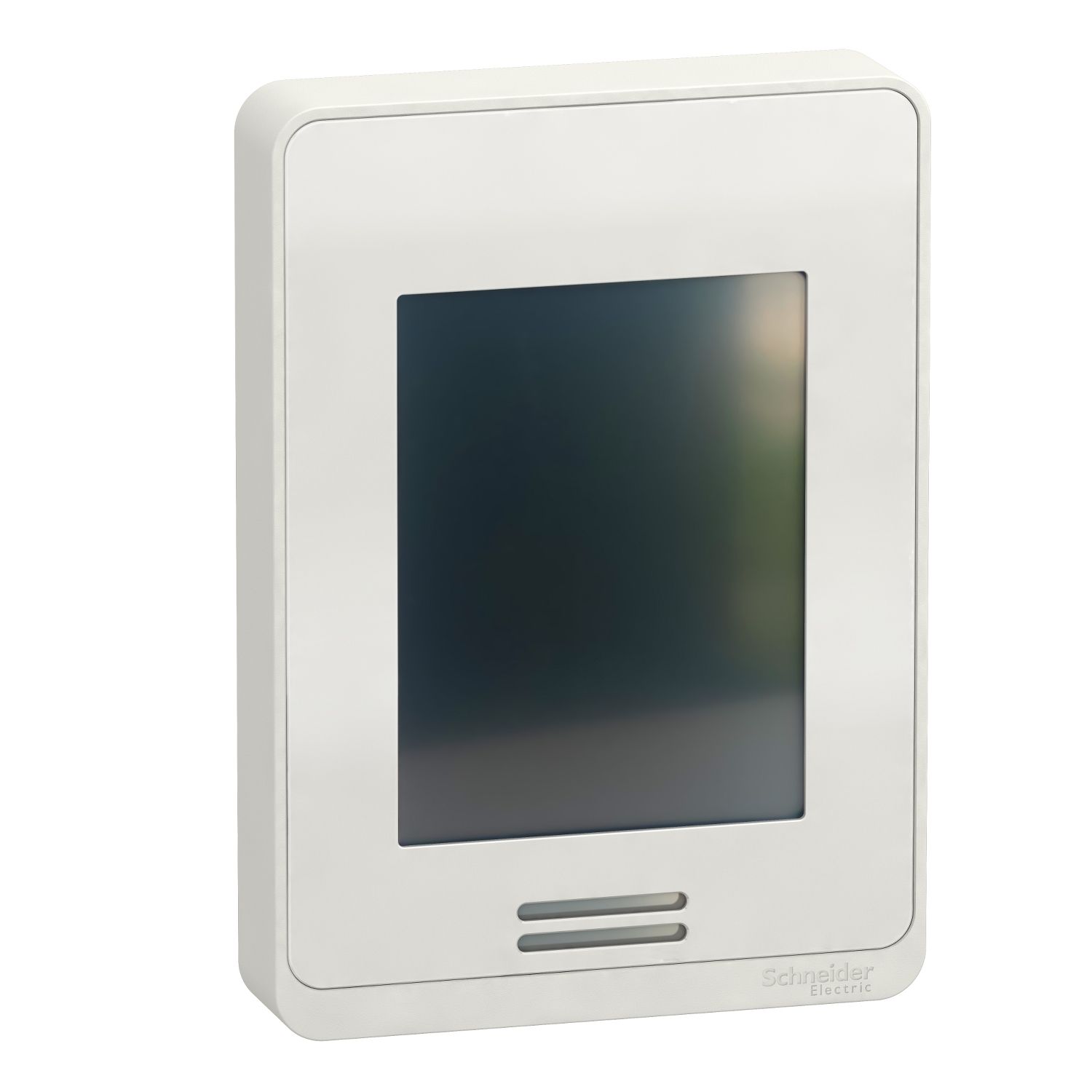

Picture of Modicon M172 Display Color TouchScreen, Temperature, Humidity, built-in sensors
SKU:

TM172DCLWTHP

Modicon M172 Display Color TouchScreen, Temperature, Humidity, built-in sensors

$1,027.90 INC GST
Available for Shipping : 11-Jan-2026
Modicon M172 Display Color TouchScreen, Temperature, Humidity, built-in sensors
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 11-Jan-2026
Brochure
Catalog
Declaration of conformity
Environmental Disclosure
Instruction sheet
User guide
Circularity Profile
Product Page Link
Product Data Sheet
This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This color touchscreen display is an accessory to the M172 Optimized and Performance controllers. It is powered with a 24VACDC supply and has a built-in sensor for temperature and Relative humidity, and Presence PIR control. It is designed for indoor use to control temperature, relative humidity, and PIR presence with a built-in sensor It figures one Communication port fRS485 Modbus serial line. Its screen size is 3.5inches, with a 320x240pixels resolution, and its Ip level is IP20. It measures 86mm wide, 25mm deep, 120mm high, and weighs 0.340kg. It is remote display for Modicon M172 logic controllers. It is certified by CE, RCM, EAC and CTUVus. It is compatible with M172 Optimized and M172 Performance logic controllers. It is sold in a 1-piece package. It is designed for wall mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon M171/M172
Product or component type display module
Supply external source
Complementary
Product compatibility logic controller M172, logic controller M171
Display type colour touchscreen, LCD display
Colour white
[Us] rated supply voltage 24 V AC/DC
Power consumption in W 1.3 W, 3.2 VA
Height 120 mm
Depth 25 mm
Analogue input type humidity probe 10...90 % without condensation 80...90 % +/- 10 %, humidity probe 10...90 % without condensation 20...80 % +/- 5 %, humidity probe 10...90 % without condensation 10...20 % +/- 10 %, NTC 10k temperature probe at 21 °C +/- 0.5 °C, NTC 10k type 2 temperature probe - 40...50 °C +/- 0.1 °C
Width 86 mm
Net weight 0.34 kg
Display resolution 320 x 240 pixels
Environment
Ambient air temperature for storage -30-50 °C
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Ambient air temperature for operation 0-50 °C
Standards UL 873, CSA C22.2 No 24, EN 55032, EN 55024, IEC 60950-1
Product certifications cTUVus, RCM, CE, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 10.6 cm
Package 1 Length 15.5 cm
Package 1 Weight 226.0 g
Unit Type of Package 2 2
Number of Units in Package 2 11
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.858 kg
