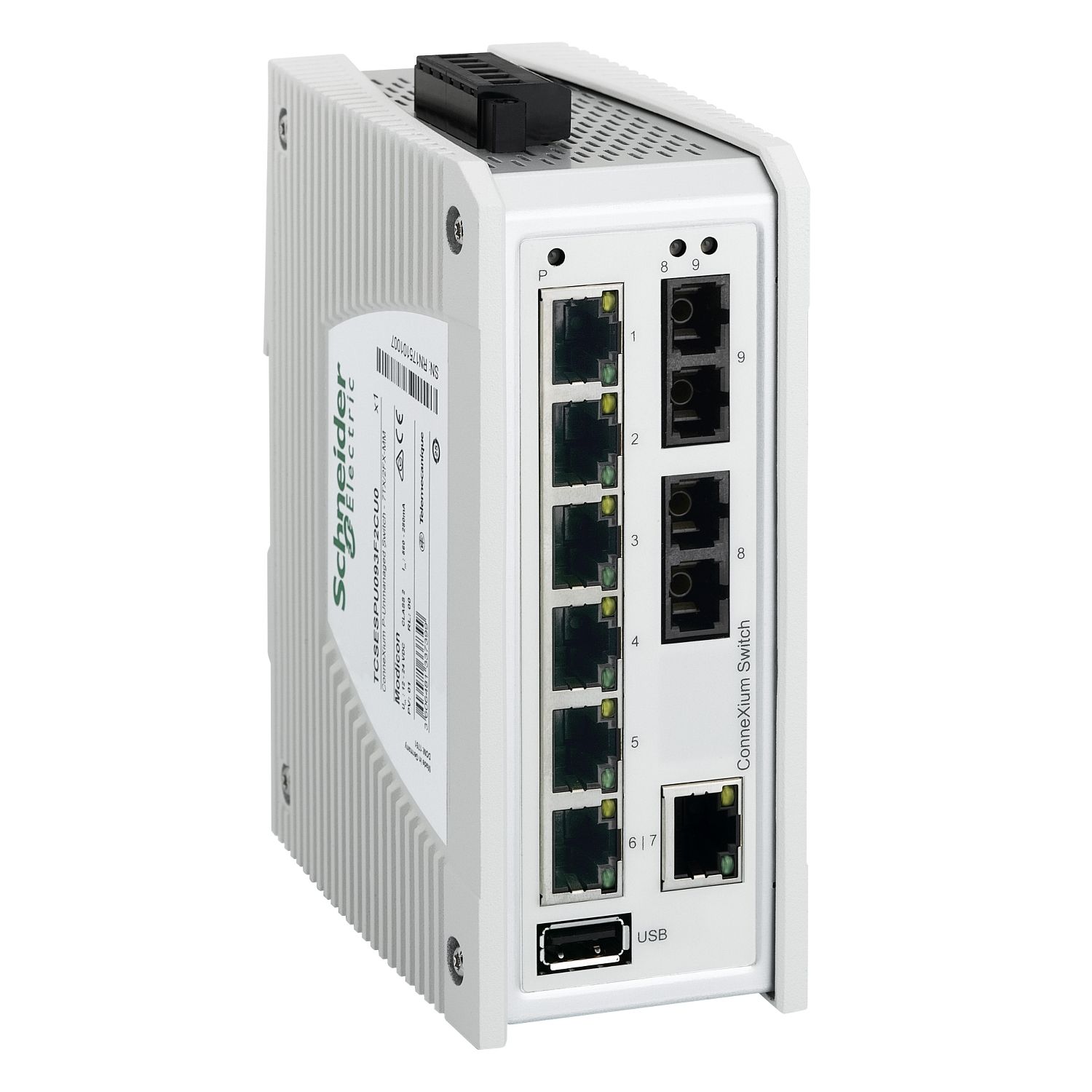

Picture of switch, Modicon Networking, premium unmanaged switch, 7 ports for copper, 2 ports for fiber optic multimode
SKU:

TCSESPU093F2CU0

switch, Modicon Networking, premium unmanaged switch, 7 ports for copper, 2 ports for fiber optic multimode

$1,399.09 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
switch, Modicon Networking, premium unmanaged switch, 7 ports for copper, 2 ports for fiber optic multimode
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Catalog
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon Networking range, an offer of Modicon Premium Unmanaged Switch. This managed switch comes with Ethernet TCP/IP protocol. It comes with 7 copper cable transmission ports and 2 ports for multi-mode fiber optic. It provides simple and complex connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features. This product works at a power consumption of 6.9W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection Its dimensions are 56mm (width) x 135mm (height) x 117mm (depth) and weighs 0.51 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Communication port protocol Ethernet TCP/IP
Product or component type Ethernet TCP/IP unmanaged switch
Port Ethernet 100BASE-FX - 2 port(s) fiber optic, 10/100BASE-TX - 7 port(s) copper cable
Range of product ConneXium
Maximum number of switches in cascade unlimited
Complementary
Depth 117 mm
Width 56 mm
Optic fiber length 5 km 50/125 µm, 4 km 62.5/125 µm
Local signalling 1 dual colour LED (green/yellow) for link status, 1 LED per channel (yellow) for data rate (ETH LINK), 1 dual colour LED (green/yellow) for P1 P2 power supplies
Supply voltage limits 9.6-32 V DC SELV
Ethernet cabling system TF switches
Ethernet service data stream control, multicast filtering
Attenuation 0-8 dB (50/125 µm), 0-11 dB (62.2/125 µm)
Electrical connection removable connector 6 ways power supply
Net weight 0.510 kg
Marking RCM, UL, CE
Communication service Quality of Service (QoS)
Power consumption in W 6.9 W
Mounting support 35 mm symmetrical DIN rail
Transmission support medium multimode optical fiber for fiber optic, twisted shielded pairs cable CAT 5E for copper cable
Integrated connection type duplex SC fiber optic, shielded RJ45 copper cable
Height 135 mm
[Us] rated supply voltage 12...24 V
Maximum cable distance between devices 100 m copper cable
Environment
IP degree of protection IP40
Relative humidity 10-95 % non-condensing
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications RCM, UL, CE
Standards EN/IEC 61131,  UL 61010
Ambient air temperature for operation -40-+70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.0 cm
Package 1 Width 16.0 cm
Package 1 Length 23.5 cm
Package 1 Weight 800.0 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 6.4 kg
