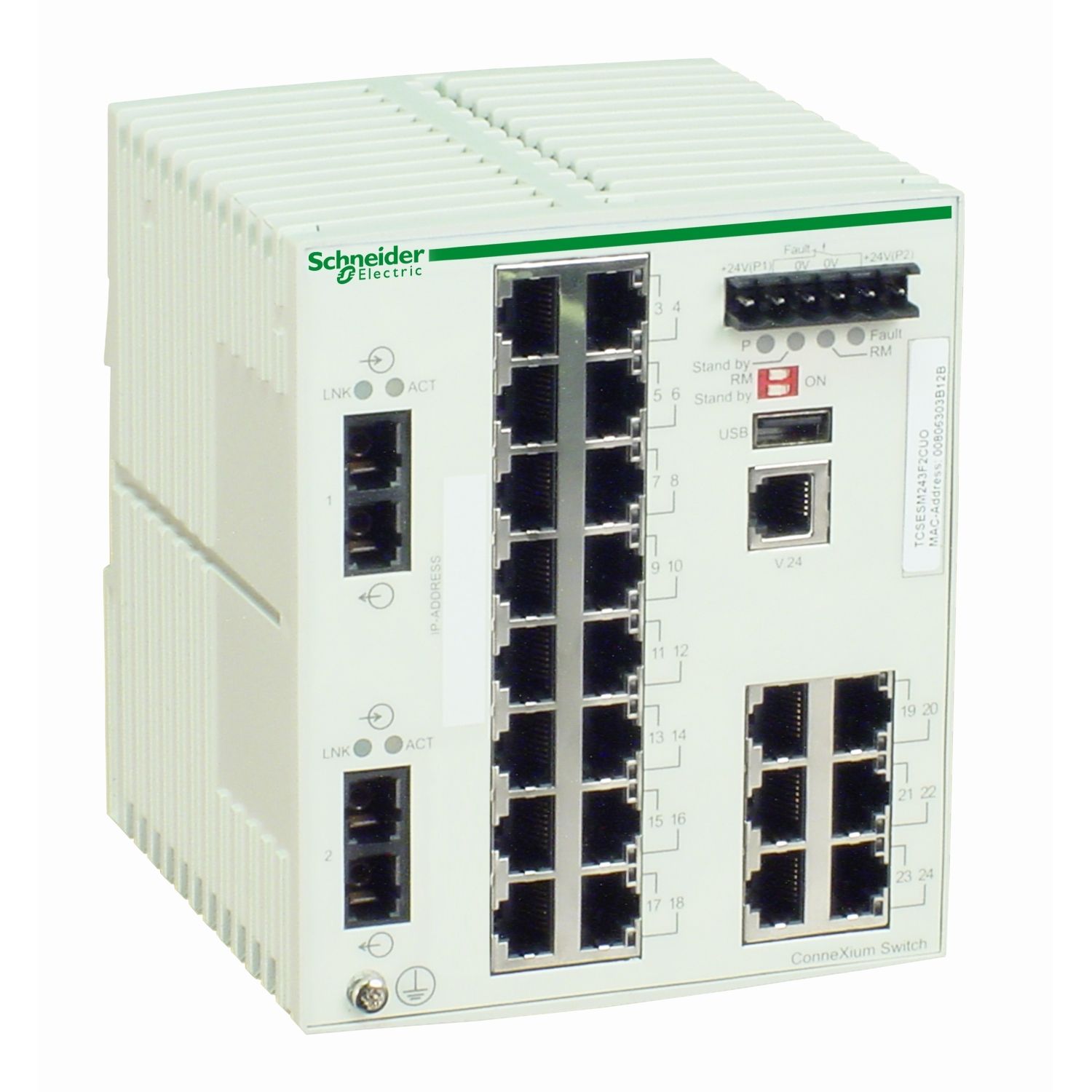

Picture of ConneXium Managed Switch - 22 ports for copper + 2 ports for fiber optic multimode
SKU:

TCSESM243F2CU0

ConneXium Managed Switch - 22 ports for copper + 2 ports for fiber optic multimode

$10,157.40 INC GST
Availability: Please contact our sales team on 1300 724 622.
ConneXium Managed Switch - 22 ports for copper + 2 ports for fiber optic multimode
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
This switch is part of the Modicon Networking range, an offer of industrial network switches. This TCP/IP extended managed switch has 2 100BASE-FX ports for fiber optic and 22 10/100BASE-TX ports for copper cable. Both copper and fiber optic cablings are supported. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 14.5W and maximum number of switches in a ring is 50. It is furnished with 6-way removable connector. The supported transmission medium is twisted shielded pair CAT 5E copper cable. It is an IP20 rated product. Its dimensions are 111mm (width) x 111mm (depth) x 131mm (height). It weighs 0.61kg. It is suitable for all industrial automation segment applications. This switch is part of the Modicon Networking range, an offer of industrial network switches. This TCP/IP extended managed switch has 2 100BASE-FX ports for fiber optic and 22 10/100BASE-TX ports for copper cable. Both copper and fiber optic cablings are supported. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 14.5W and maximum number of switches in a ring is 50. It is furnished with 6-way removable connector. The supported transmission medium is twisted shielded pair CAT 5E copper cable. It is an IP20 rated product.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Range of product ConneXium
Maximum number of switches in cascade unlimited
Cybersecurity port hardening
Communication port protocol MRP (Media Redundancy Protocol), SNTP, Telnet, LLDP, RS232, SNMP, HTTPS, HTTP, SSH, Ethernet TCP/IP
Product or component type Ethernet TCP/IP managed switch
Port Ethernet 10/100BASE-TX - 22 port(s) copper cable, 100BASE-FX - 2 port(s) fiber optic
Complementary
Diagnostics run time self test, signal contact
Optic fiber length 5 km 50/125 µm, 4 km 62.5/125 µm
Supply voltage limits 18-30 V AC SELV, 9.6-60 V DC SELV
Ethernet cabling system TF switches
Function available Trap log, report, system information, alarms (Traps)
Maximum number of switches in a ring 50
Attenuation 0-8 dB (50/125 µm), 0-11 dB (62.2/125 µm)
Marking EtherNet/IP, RCM, UL, CE
Communication service address conflict detection, port mirroring, port monitoring, Quality of Service (QoS), TFTP
Power consumption in W 14.5 W
Height 131 mm
[Us] rated supply voltage 12...48 V
Maximum cable distance between devices 100 m copper cable
Depth 111 mm
Width 111 mm
Local signalling Device status, 1 LED per channel (yellow) for ACT, 1 LED per channel (green) for link status, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for ring manager, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for P1 P2 power supplies
Ethernet service SNMP-Traps and SYSLOG, IGMP Snooping, data stream control, multicast filtering, VLAN, configuration via web server
Electrical connection removable connector 6 ways power supply
Net weight 0.61 kg
Redundancy redundant network coupling, RSTP, HiPER ring
Alarm output 1 voltfree contact 1 A
Mounting support 35 mm symmetrical DIN rail
Transmission support medium multimode optical fiber for fiber optic, twisted shielded pairs cable CAT 5E for copper cable
Integrated connection type shielded RJ45 copper cable, duplex SC fiber optic
Alarm function switch fault, redundancy ring fault, data link status, power supply fault
Environment
IP degree of protection IP20
Relative humidity 10-95 % non-condensing
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications GL, BV, ODVA EtherNet/IP, RCM, UL, CE
Ambient air temperature for operation 0-60 °C
Standards IEC 61850-3, EN/IEC 61131, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.200 cm
Package 1 Width 16.300 cm
Package 1 Length 23.300 cm
Package 1 Weight 924.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.062 kg
