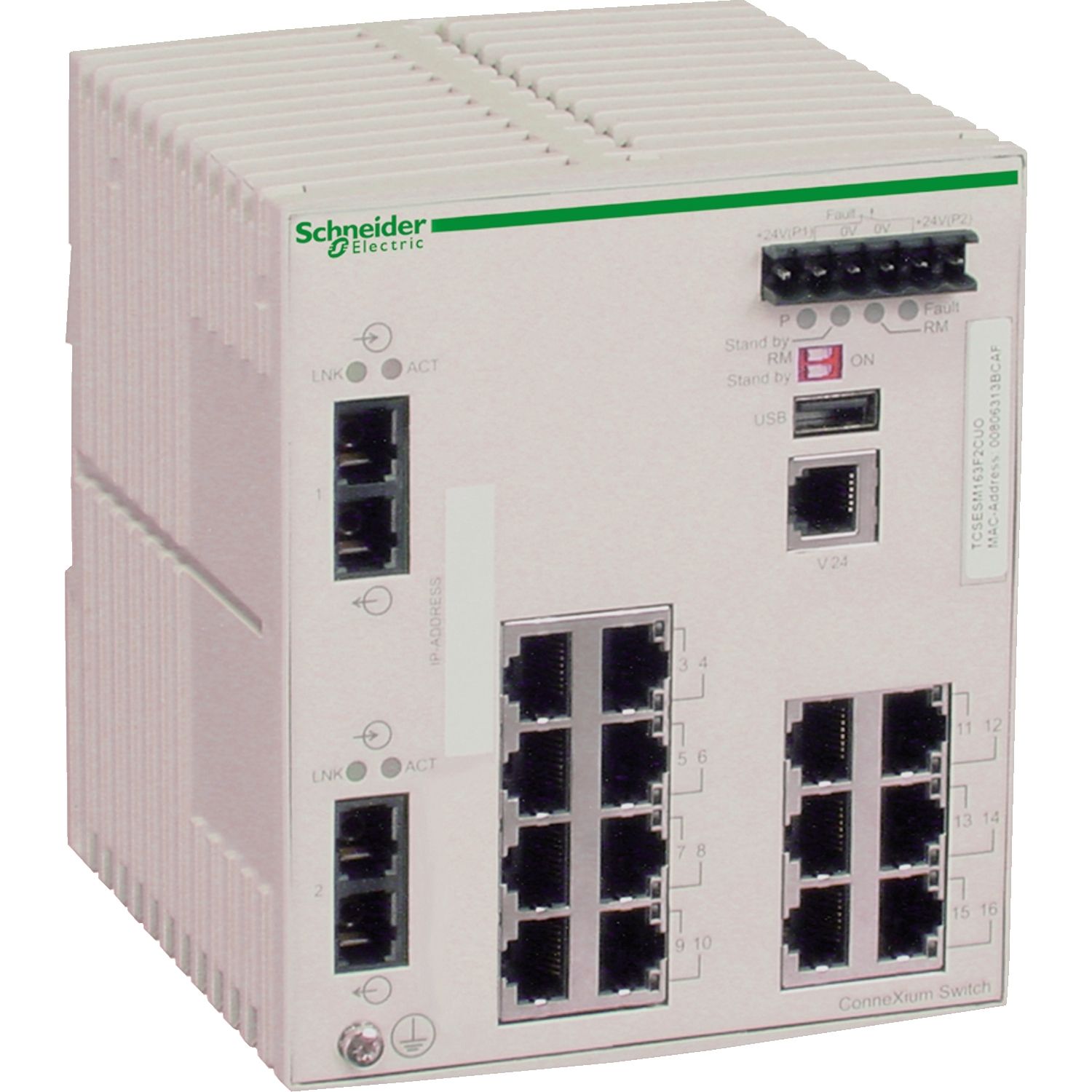

Picture of ConneXium Managed Switch - 14 ports for copper + 2 ports for fiber optic multimode
SKU:

TCSESM163F2CU0

ConneXium Managed Switch - 14 ports for copper + 2 ports for fiber optic multimode

$8,078.40 INC GST
Availability: Please contact our sales team on 1300 724 622.
ConneXium Managed Switch - 14 ports for copper + 2 ports for fiber optic multimode
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP managed switch has two 100BASE-FX ports for fibre optic and fourteen 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 24V, a power consumption of 11.8W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission mediums are twisted shielded pair category 5E copper cable and multimode fibre optic. Ethernet services are secure port, Rapid Scanning Tree Protocol (RSTP), priority port, multicast filtering, data stream control, configuration via web server, VLAN, SNTP client, SMTP V3, IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 111mm (width) x 111mm (depth) x 131mm (height) and weighs 0.6kg. This product is certified by CE, GL and C-Tick. It meets CUL 60950, UL 1604, CSA C22.2 No 213 Class I Division 2, CSA C22.2 No 142 and UL 508 standards. It supports 35mm symmetrical DIN rail mount.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Cybersecurity port hardening
Communication port protocol MRP (Media Redundancy Protocol), SNTP, Telnet, LLDP, RS232, SNMP, HTTPS, HTTP, SSH, Ethernet TCP/IP
Product or component type Ethernet TCP/IP managed switch
Port Ethernet 10/100BASE-TX - 14 port(s) copper cable, 100BASE-FX - 2 port(s) fiber optic
Range of product ConneXium
Maximum number of switches in cascade unlimited
Complementary
Depth 111 mm
Width 111 mm
Diagnostics run time self test, signal contact
Optic fiber length 5 km 50/125 µm, 4 km 62.5/125 µm
Local signalling Device status, 1 LED per channel (yellow) for ACT, 1 LED per channel (green) for link status, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for ring manager, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for P1 P2 power supplies
Supply voltage limits 18-30 V AC SELV, 9.6-60 V DC SELV
Ethernet cabling system TF switches
Ethernet service SNMP-Traps and SYSLOG, IGMP Snooping, data stream control, multicast filtering, VLAN, configuration via web server
Function available Trap log, report, system information, alarms (Traps)
Maximum number of switches in a ring 50
Electrical connection removable connector 6 ways power supply
Attenuation 0-8 dB (50/125 µm), 0-11 dB (62.2/125 µm)
Net weight 0.6 kg
Redundancy redundant network coupling, RSTP, HiPER ring
Alarm output 1 voltfree contact 1 A
Marking EtherNet/IP, RCM, UL, CE
Communication service address conflict detection, port mirroring, port monitoring, Quality of Service (QoS), TFTP
Power consumption in W 11.8 W
Mounting support 35 mm symmetrical DIN rail
Transmission support medium multimode optical fiber for fiber optic, twisted shielded pairs cable CAT 5E for copper cable
Integrated connection type shielded RJ45 copper cable, duplex SC fiber optic
Alarm function switch fault, redundancy ring fault, data link status, power supply fault
Height 131 mm
[Us] rated supply voltage 12...48 V
Maximum cable distance between devices 100 m copper cable
Environment
IP degree of protection IP20
Relative humidity 10-95 % non-condensing
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications GL, BV, ODVA EtherNet/IP, RCM, UL, CE
Standards IEC 61850-3, EN/IEC 61131, UL 508
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.0 cm
Package 1 Width 16.2 cm
Package 1 Length 23.5 cm
Package 1 Weight 874.0 g

Related products

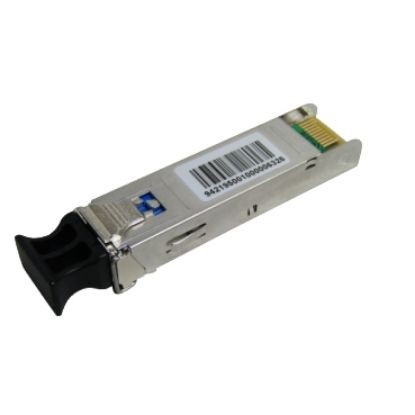

Picture of Fiber SFP module for TCSESM switches - 1000BASE-SX, multimode

Fiber SFP module for TCSESM switches - 1000BASE-SX, multimode

TCSEAAF1LFU00
$585.06 INC GST
View Detail

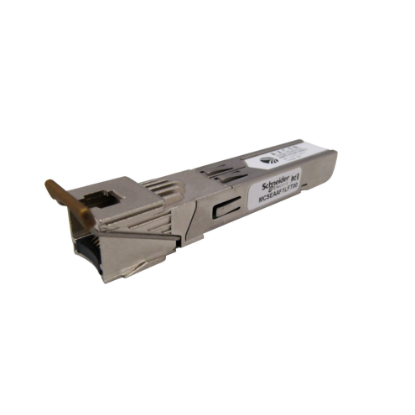

Picture of Copper SFP module for Ethernet Switch - 10/100 BASE - TX/RJ45

Copper SFP module for Ethernet Switch - 10/100 BASE - TX/RJ45

MCSEAAF1LFT00
$703.34 INC GST
View Detail

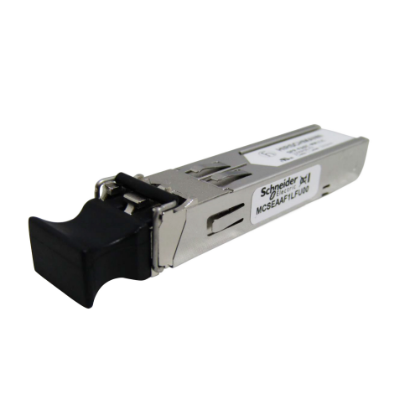

Picture of fiber optic adaptor, Modicon Networking, SFP module, for Ethernet switch, 100 BASE-SX, multimode
