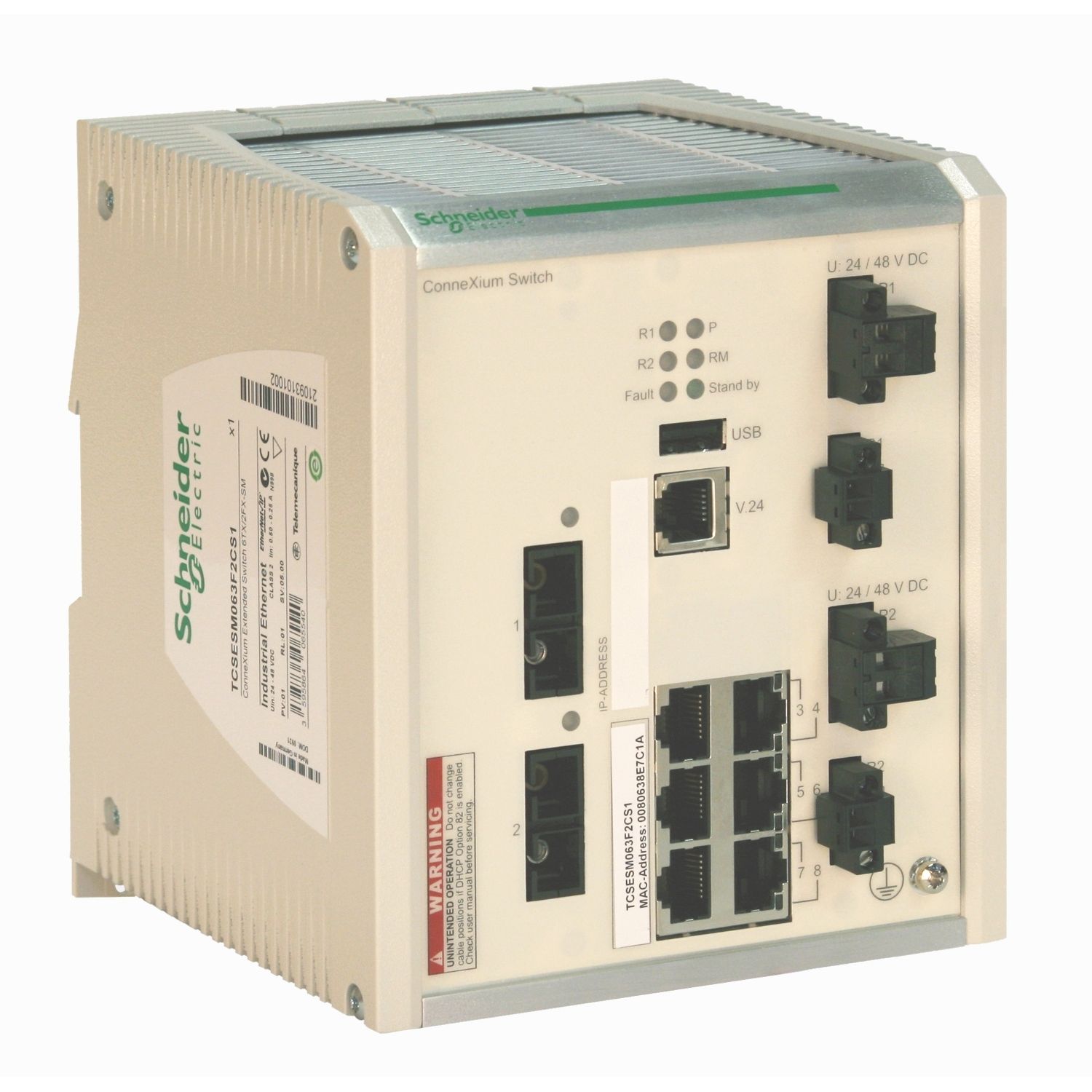

Picture of ConneXium Extended Managed Switch - 6 ports for copper + 2 ports for fiber optic single-mode
SKU:

TCSESM063F2CS1

ConneXium Extended Managed Switch - 6 ports for copper + 2 ports for fiber optic single-mode

$7,874.62 INC GST
Availability: Please contact our sales team on 1300 724 622.
ConneXium Extended Managed Switch - 6 ports for copper + 2 ports for fiber optic single-mode
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP extended managed switch has two 100BASE-FX ports for fibre optic and six 10BASE-T/100BASE-T ports for copper cable. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 12W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with two 2-way removable connectors (power supply) for electrical connection. The supported transmission mediums are twisted shielded pair category 5E copper cable and single mode fibre optic. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, VLAN, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP30 rated product. Its dimensions are 120mm (width) x 115mm (depth) x 137mm (height) and weighs 1kg. This product is certified by CE, LR, BV, GL and C-Tick. It meets IEC 61850-3, CSA C22.2 No 213 Class I Division 2, CSA C22.2 No 214, UL 1604 Class 1 Division 2, EN/IEC 61131-2 and UL 508 standards. It supports 35mm symmetrical DIN rail mount.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Range of product ConneXium
Maximum number of switches in cascade unlimited
Cybersecurity port hardening
Communication port protocol MRP (Media Redundancy Protocol), SNTP, Telnet, LLDP, RS232, SNMP, HTTPS, HTTP, SSH, Ethernet TCP/IP
Product or component type Ethernet TCP/IP managed switch
Port Ethernet 10/100BASE-TX - 6 port(s) copper cable, 100BASE-FX - 2 port(s) fiber optic
Complementary
Diagnostics run time self test, signal contact
Optic fiber length 32.5 km 9/125 µm
Supply voltage limits 18-60 V DC SELV
Ethernet cabling system TF switches
Function available Trap log, report, system information, alarms (Traps)
Maximum number of switches in a ring 50
Attenuation 0-16 dB (9/125 µm)
Marking ATEX, RCM, UL, CE
Communication service address conflict detection, port mirroring, port monitoring, Quality of Service (QoS), TFTP
Power consumption in W 12 W
Height 137 mm
[Us] rated supply voltage 24...48 V
Maximum cable distance between devices 100 m copper cable
Depth 115 mm
Width 120 mm
Local signalling Device status, 1 LED per channel (green/yellow) for channel diagnostic, 1 LED (yellow) for signal contact 2, 1 LED (yellow) for signal contact 1, 1 LED (red) for stand-by, 1 dual colour LED (green/yellow) for ring manager, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for P1 P2 power supplies
Ethernet service SNMP-Traps and SYSLOG, IGMP Snooping, data stream control, multicast filtering, VLAN, configuration via web server
Electrical connection 2 removable connectors 2 ways power supply
Net weight 1 kg
Redundancy redundant network coupling, RSTP, HiPER ring
Alarm output 2 voltfree contact 2 A
Mounting support 35 mm symmetrical DIN rail
Transmission support medium single mode optical fiber for fiber optic, twisted shielded pairs cable CAT 5E for copper cable
Integrated connection type shielded RJ45 copper cable, duplex SC fiber optic
Alarm function external memory removed, temperature threshold, data link status, power supply fault
Environment
IP degree of protection IP30
Relative humidity 10-95 % non-condensing
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications BV, GL, LR, ATEX, RCM, UL, CE
Ambient air temperature for operation 0-60 °C
Standards IEC 61850-3, EN/IEC 61131, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.000 cm
Package 1 Width 22.600 cm
Package 1 Length 23.200 cm
Package 1 Weight 1.497 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 3.948 kg

Related products

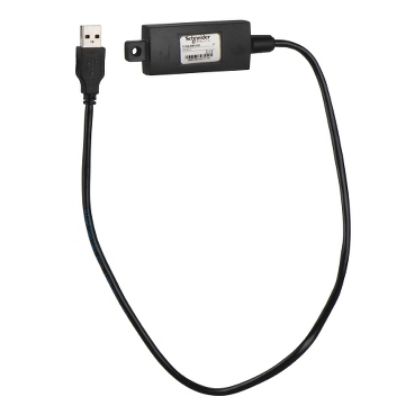

Picture of Configuration backup key - for TCSESM switches - 1 connector USB
