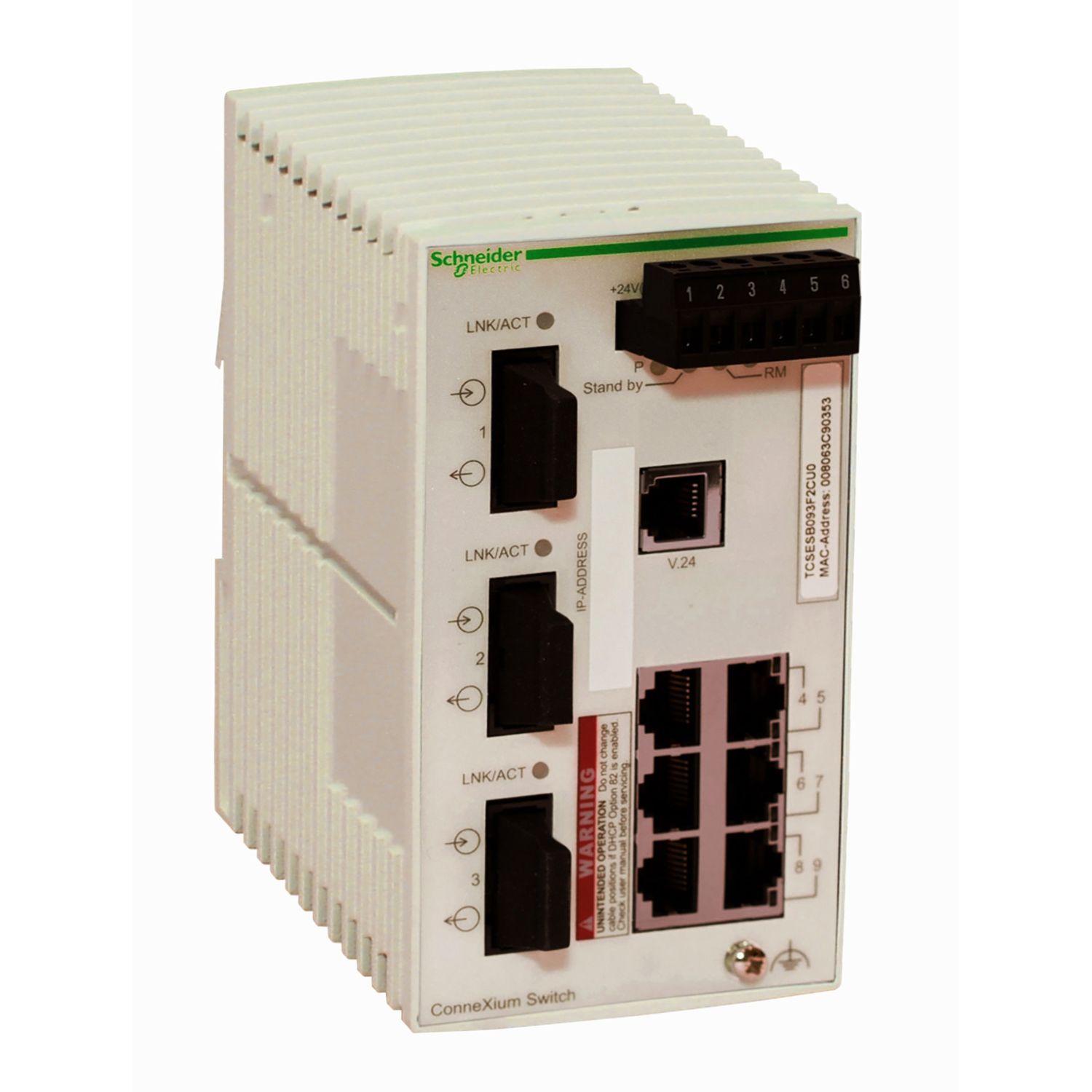

Picture of switch, Modicon Networking, basic managed switch, 6 ports for copper, 3 ports for fiber optic multimode
SKU:

TCSESB093F2CU0

switch, Modicon Networking, basic managed switch, 6 ports for copper, 3 ports for fiber optic multimode

$4,389.55 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
switch, Modicon Networking, basic managed switch, 6 ports for copper, 3 ports for fiber optic multimode
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
User guide
Circularity Profile
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This product is part of the Modicon Networking range, an offer of Modicon Basic Managed Switch. This managed switch comes with Ethernet TCP/IP protocol. It comes with 6 copper cable transmission ports and 3 ports for multi-mode fiber optic. It provides simple and complex connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features. This product works at a power consumption of 9W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection Its dimensions are 74mm (width) x 131mm (height) x 111mm (depth) and weighs 0.41 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Cybersecurity role-based access control
Communication port protocol MRP (Media Redundancy Protocol), SNTP, LLDP, RS232, SNMP, HTTPS, HTTP, Ethernet TCP/IP
Product or component type Ethernet TCP/IP managed switch
Port Ethernet 100BASE-FX - 3 port(s) fiber optic, 10/100BASE-TX - 6 port(s) copper cable
Range of product ConneXium
Maximum number of switches in cascade unlimited
Complementary
Depth 111 mm
Width 74 mm
Diagnostics run time self test, signal contact
Optic fiber length 5 km 50/125 µm, 4 km 62.5/125 µm
Local signalling Device status, 1 dual colour LED (green/yellow) for channel diagnostic, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for ring manager, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for P1 P2 power supplies
Supply voltage limits 9.6-32 V DC SELV
Ethernet cabling system TF switches
Ethernet service SNMP-Traps and SYSLOG, IGMP Snooping, data stream control, multicast filtering, configuration via web server
Function available system information
Maximum number of switches in a ring 50
Electrical connection removable connector 6 ways power supply
Attenuation 0-8 dB (50/125 µm), 0-11 dB (62.2/125 µm)
Net weight 0.41 kg
Redundancy RSTP, HiPER ring
Alarm output 1 voltfree contact 1 A
Marking RCM, UL, CE
Communication service port mirroring, port monitoring, Quality of Service (QoS), TFTP
Power consumption in W 9 W
Mounting support 35 mm symmetrical DIN rail
Transmission support medium multimode optical fiber for copper cable, twisted shielded pairs cable CAT 5E for fiber optic
Integrated connection type duplex SC fiber optic, shielded RJ45 copper cable
Alarm function temperature threshold, incorrect configuration, redundancy ring fault, switch fault, data link status, power supply fault
Height 131 mm
[Us] rated supply voltage 12...24 V
Maximum cable distance between devices 100 m copper cable
Environment
IP degree of protection IP20
Relative humidity 10-95 % non-condensing
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications RCM, UL, CE
Standards EN/IEC 61131, UL 508
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 16.000 cm
Package 1 Length 23.500 cm
Package 1 Weight 617.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.895 kg
