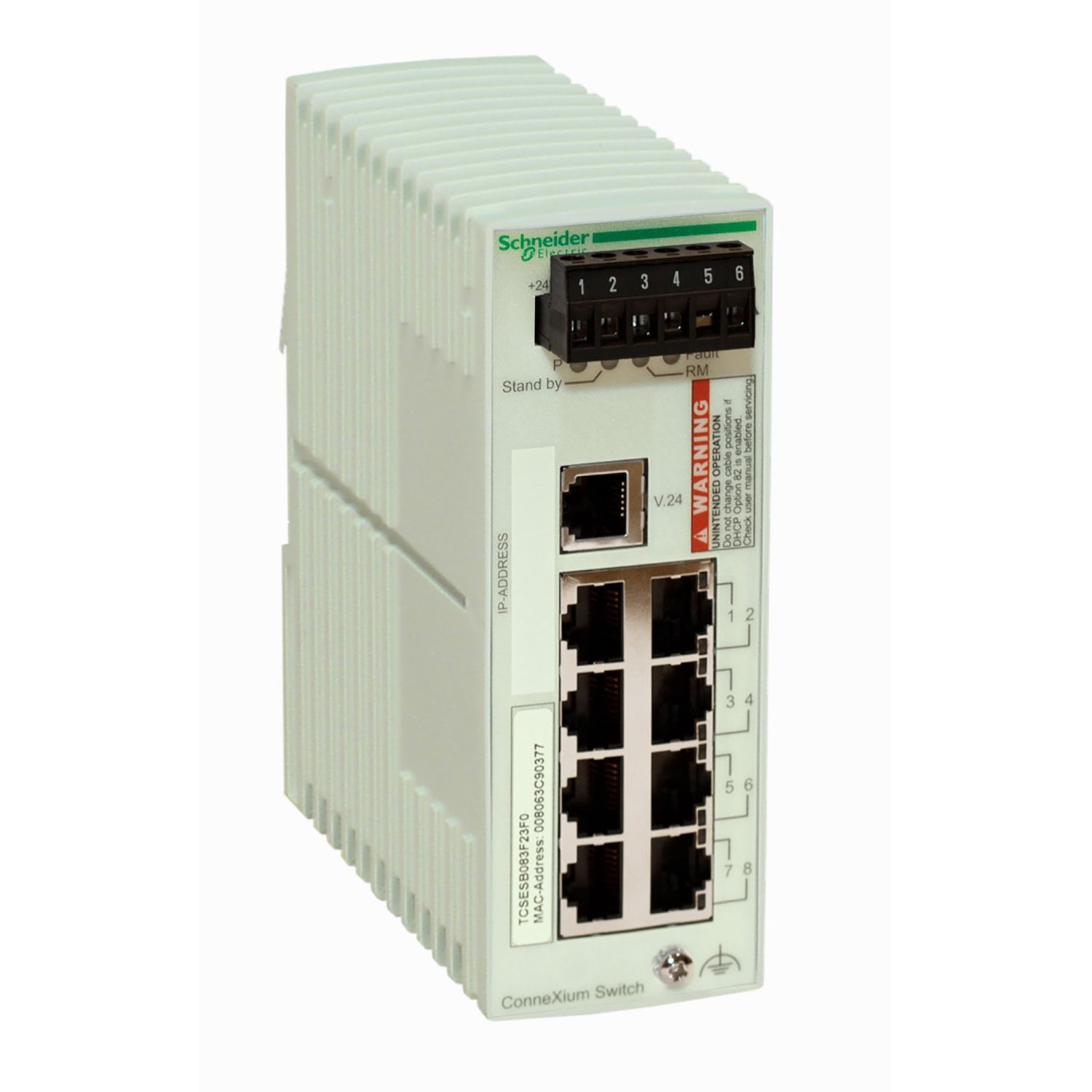

Picture of network switch, Modicon Networking, basic managed, 8 ports for copper
SKU:

TCSESB083F23F0

network switch, Modicon Networking, basic managed, 8 ports for copper

$2,261.82 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
network switch, Modicon Networking, basic managed, 8 ports for copper
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Environmental Disclosure
Declaration of conformity
Brochure
User guide
Catalog
Product Page Link
Product Data Sheet
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP basic managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 214, CSA C22.2 No 213 Class I Division 2, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Range of product ConneXium
Maximum number of switches in cascade unlimited
Cybersecurity role-based access control
Communication port protocol MRP (Media Redundancy Protocol), SNTP, LLDP, RS232, SNMP, HTTPS, HTTP, Ethernet TCP/IP
Product or component type Ethernet TCP/IP managed switch
Port Ethernet 10/100BASE-TX - 8 port(s) copper cable
Complementary
Diagnostics run time self test, signal contact
Supply voltage limits 9.6-32 V DC SELV
Ethernet cabling system TF switches
Function available system information
Maximum number of switches in a ring 50
Marking RCM, UL, CE
Communication service port mirroring, port monitoring, Quality of Service (QoS), TFTP
Power consumption in W 6 W
Height 131 mm
[Us] rated supply voltage 12...24 V
Maximum cable distance between devices 100 m copper cable
Depth 111 mm
Width 47 mm
Local signalling Device status, 1 dual colour LED (green/yellow) for channel diagnostic, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for ring manager, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for P1 P2 power supplies
Ethernet service SNMP-Traps and SYSLOG, IGMP Snooping, data stream control, multicast filtering, configuration via web server
Electrical connection removable connector 6 ways power supply
Net weight 0.4 kg
Redundancy RSTP, HiPER ring
Alarm output 1 voltfree contact 1 A
Mounting support 35 mm symmetrical DIN rail
Transmission support medium twisted shielded pairs cable CAT 5E for copper cable
Integrated connection type shielded RJ45 copper cable
Alarm function temperature threshold, incorrect configuration, redundancy ring fault, switch fault, data link status, power supply fault
Environment
IP degree of protection IP20
Relative humidity 10-95 % non-condensing
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications RCM, UL, CE
Ambient air temperature for operation 0-60 °C
Standards EN/IEC 61131, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 16.000 cm
Package 1 Length 24.000 cm
Package 1 Weight 412.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.930 kg
