SKU:

TBURMR450-M003DH0

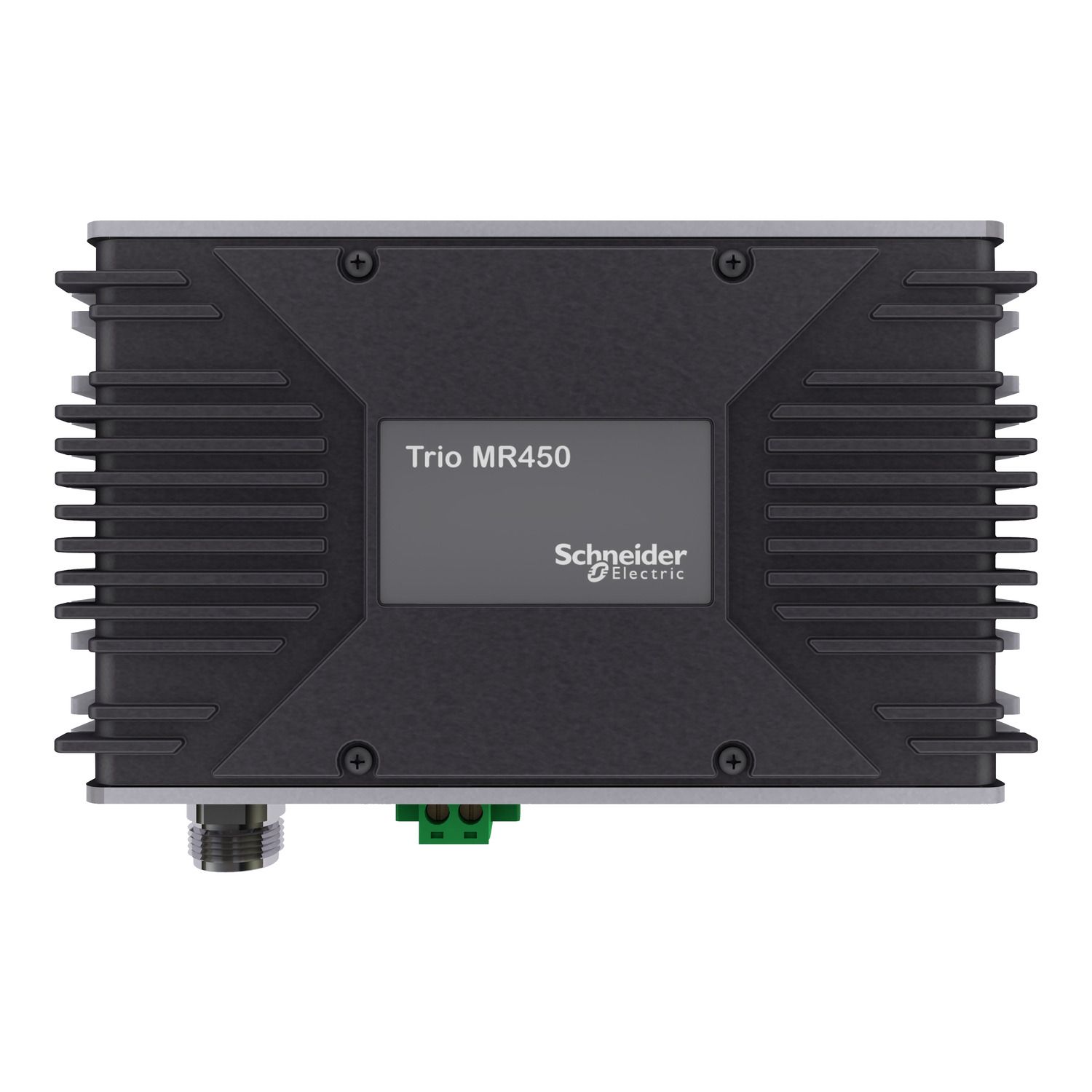

Remote radio, Trio Licensed Radios, M band, half duplex, FCC

Old price: $1,762.20 INC GST

Price: $1,674.09 INC GST

Qty:

Available for Shipping : 05-Mar-2026

Remote radio, Trio Licensed Radios, M band, half duplex, FCC

Manufacturer: Schneider Electric

Delivery date: 05-Mar-2026

User guide

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Radio power	37 dBm
Product or component type	remote radio
Transmission rate	12.5 kHz at < = 4.8 kbit/s, 25.0 kHz at < = 9.6 kbit/s
Power range	2.4 W: receive, 21 W: transmit
Range of product	Trio Licensed Radios
Network frequency	395...470 MHz (M-Band)
Complementary
Net weight	0.32 kg
Length	154.0 mm
Width	29.0 mm
Channel access management	channelshare collision avoidance
Exchange mode	half duplex
Connector type	power supply: 1.0 x screw terminal (2.0 poles)
Mounting support	direct mounting, DIN rail
Modulation Technique	GMSK
Height	102.0 mm
Function available	diagnostic via TVIEW software, configuration via TVIEW software
Integrated connection type	antenna, N socket, 1 serial port, DE-9 RS232/RS485, 300...115200 bps
Input voltage	10...16 V DC
Environment
IP degree of protection	IP41
Housing material	die cast aluminium
Relative humidity	5-95 % 40 °C
Standards	CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 213 Class I Division 2 Group A, RSS GEN, RSS 119, RSS 102, FCC CFR 47 part 90, FCC CFR 47 part 15
Ambient air temperature for storage	-40-85 °C
Ambient air temperature for operation	-40-70 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5 cm
Package 1 Width	11.5 cm
Package 1 Length	18.5 cm
Package 1 Weight	450 g
