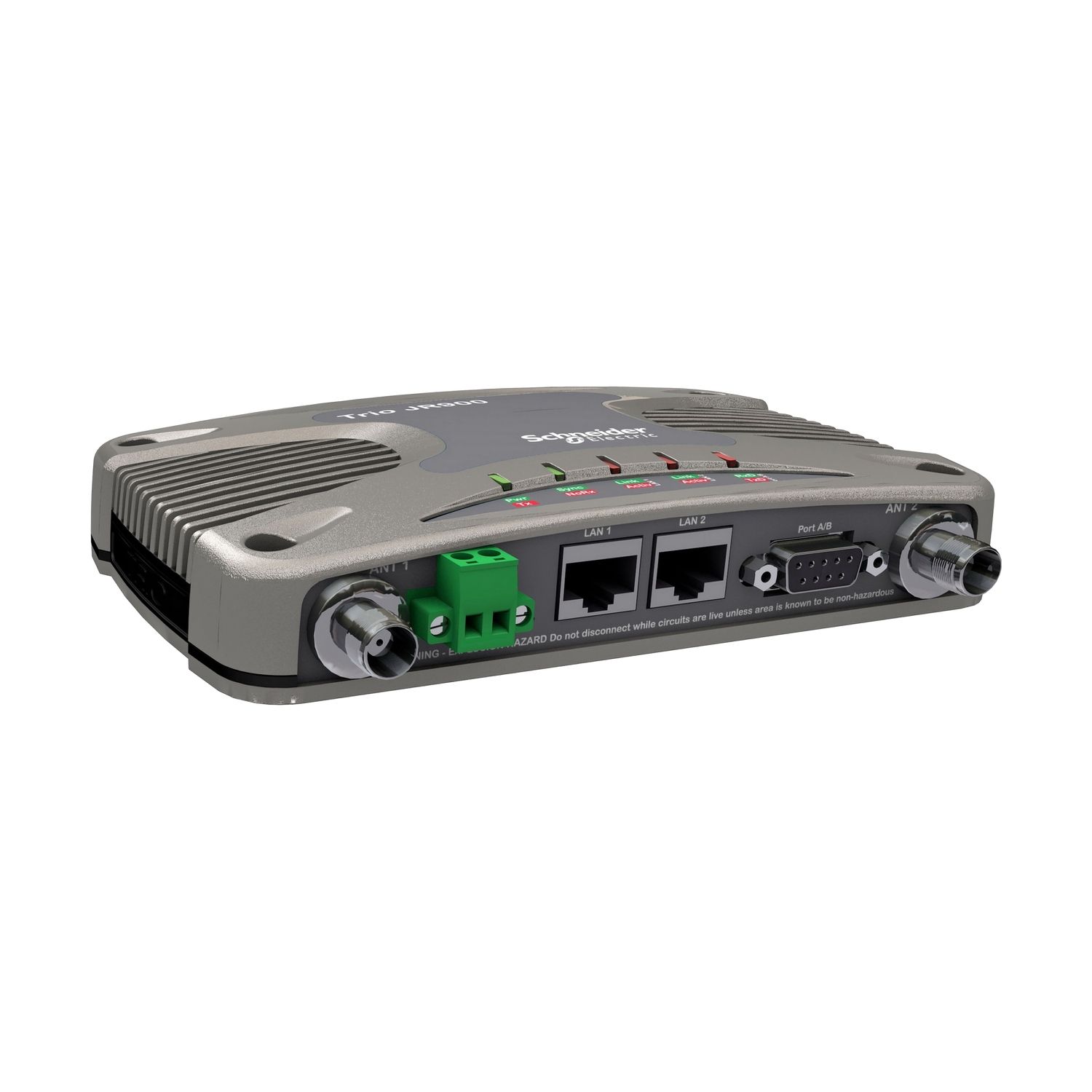

Picture of Remote radio, Trio License Free Radios, J Series, Ethernet, 921…928 MHz, NZ, CSA
SKU:

TBURJR900-05002DH0

Remote radio, Trio License Free Radios, J Series, Ethernet, 921…928 MHz, NZ, CSA

Old price: $2,725.80 INC GST
$2,589.51 INC GST
Available for Shipping : 02-Jul-2026
Remote radio, Trio License Free Radios, J Series, Ethernet, 921…928 MHz, NZ, CSA
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Jul-2026
Environmental Disclosure
Circularity Profile
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Transmission rate <= 512 kbits/s
Product or component type remote radio
Range of product Trio License Free Radios
Network frequency 921...928 MHz (New Zealand)
Complementary
Radio power 30.0 dBm
Net weight 0.5 kg
Length 100.0 mm
Width 165.0 mm
Operating mode layer-2 ethernet bridge mode
Channel access management channelshare collision avoidance
Housing material die cast aluminium
Connector type power supply: 1.0 x screw terminal (2.0 poles)
Communication service time stamped events management, TCP/UDP serial server, SNMP client/server, NTP client/server
Communication gateway Modbus gateway
Power range 2.1 W: receive
Mounting support direct mounting, DIN rail
Communication port protocol SSH, Telnet, HTTPS, HTTP, ICMP, SNMP v2, SNMP v1, UDP (User Datagram Protocol), TCP (Transmission Control Protocol)
Height 34.0 mm
Function available diagnostic with Telnet/SSH, diagnostic via web server, remote configuration with Telnet/SSH, configuration via web server
Integrated connection type antenna, TNC socket, 2 serial port, DE-9 RS232/RS485, 300...115200 bps, Ethernet port, 2 RJ45, 10/100 Mbps
Input voltage 10...30 V DC
Environment
IP degree of protection IP41
Relative humidity 5-95 % 40 °C
Standards CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 213 Class I Division 2 Group A, AS/NZS 4268
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -40-70 °C
Product certifications CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5 cm
Package 1 Width 11.5 cm
Package 1 Length 18.5 cm
Package 1 Weight 600 g
