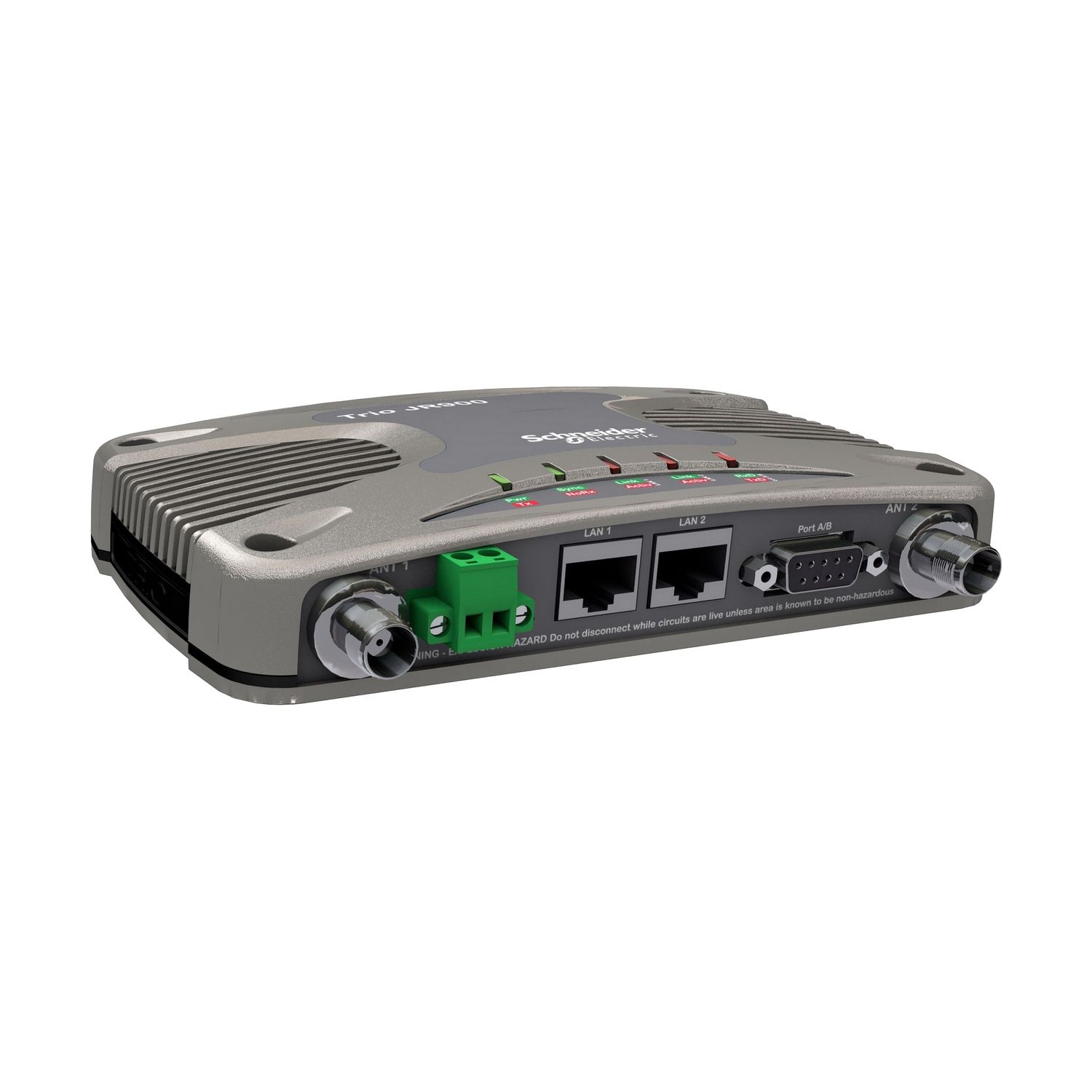

Picture of Remote radio, Trio License Free Radios, J Series, Ethernet, 902…928 MHz, FCC , USA/Canada
SKU:

TBURJR900-00002EH0

Remote radio, Trio License Free Radios, J Series, Ethernet, 902…928 MHz, FCC , USA/Canada

Old price: $2,725.80 INC GST
$2,589.51 INC GST
Available for Shipping : 02-Jul-2026
Remote radio, Trio License Free Radios, J Series, Ethernet, 902…928 MHz, FCC , USA/Canada
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Jul-2026
Environmental Disclosure
Brochure
Circularity Profile
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Transmission rate <= 512 kbits/s
Network frequency 902...928 MHz (US/Canada)
Product or component type remote radio
Range of product Trio License Free Radios
Complementary
Radio power 30.0 dBm
Width 165.0 mm
Housing material die cast aluminium
Communication gateway Modbus gateway
Encryption protocol AES 256
Communication port protocol SSH, Telnet, HTTPS, HTTP, ICMP, SNMP v2, SNMP v1, UDP (User Datagram Protocol), TCP (Transmission Control Protocol)
Function available diagnostic with Telnet/SSH, diagnostic via web server, remote configuration with Telnet/SSH, configuration via web server
Integrated connection type antenna, TNC socket, 2 serial port, DE-9 RS232/RS485, 300...115200 bps, Ethernet port, 2 RJ45, 10/100 Mbps
Input voltage 10...30 V DC
Net weight 0.5 kg
Length 100.0 mm
Operating mode layer-2 ethernet bridge mode
Channel access management channelshare collision avoidance
Connector type power supply: 1.0 x screw terminal (2.0 poles)
Communication service time stamped events management, TCP/UDP serial server, SNMP client/server, NTP client/server
Power range 2.1 W: receive
Mounting support direct mounting, DIN rail
Height 34.0 mm
Environment
IP degree of protection IP41
Relative humidity 5-95 % 40 °C
Ambient air temperature for storage -40-85 °C
Standards CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 213 Class I Division 2 Group A, AS/NZS 4268, RSS 210, FCC CFR 47 part 15
Ambient air temperature for operation -40-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 11.5 cm
Package 1 Length 18.5 cm
Package 1 Weight 1.814 kg
