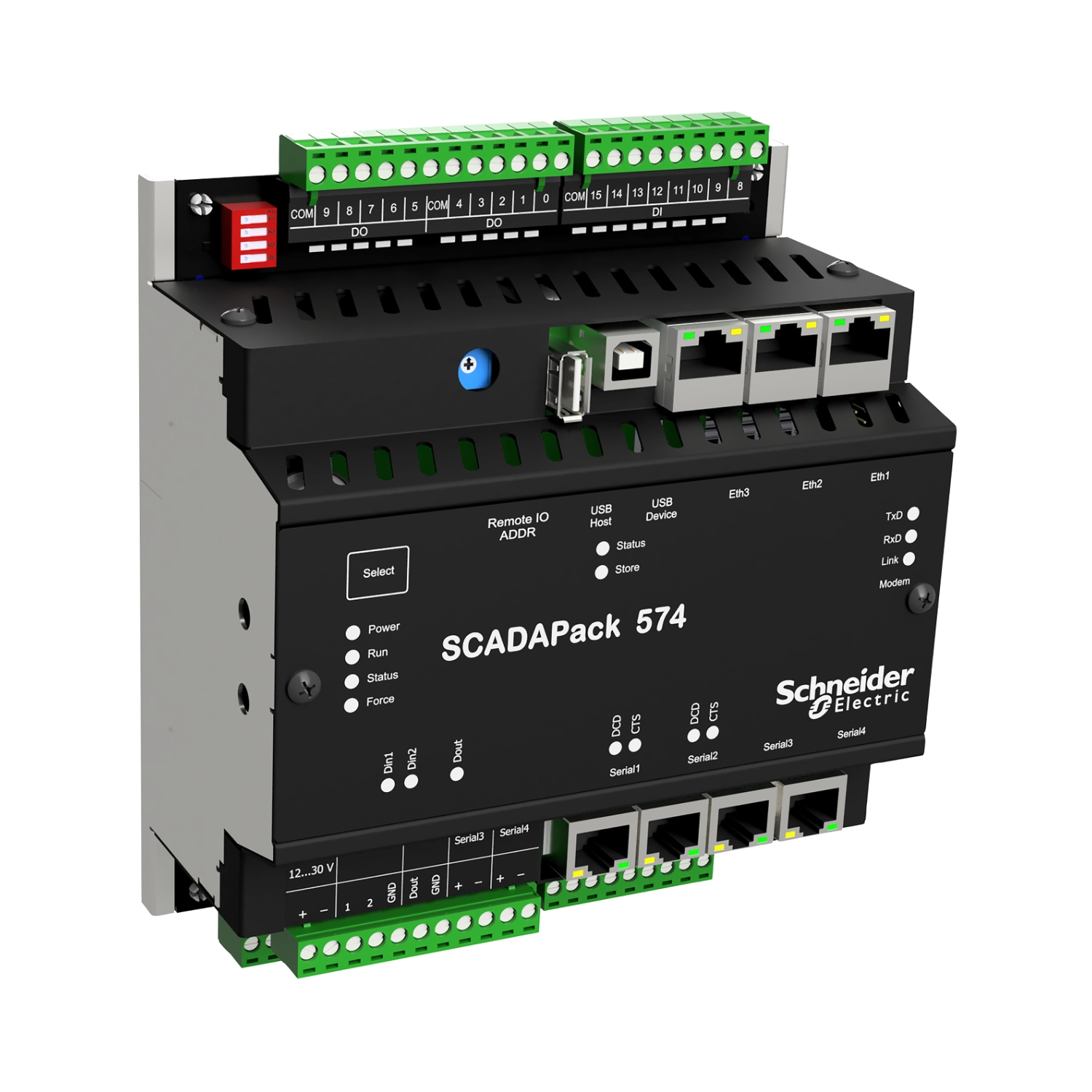

Picture of Smart RTU, SCADAPack57x, no flowrun license, 18 DI, 8 AI, 11 DO
SKU:

TBUP574-UA56-AB00S

Smart RTU, SCADAPack57x, no flowrun license, 18 DI, 8 AI, 11 DO

Old price: $7,727.50 INC GST
$7,341.12 INC GST
Available for Shipping : 26-Feb-2026
Smart RTU, SCADAPack57x, no flowrun license, 18 DI, 8 AI, 11 DO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Feb-2026
Circularity Profile
Brochure
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Market segment water and waste water, oil and gas
Range compatibility EcoStruxure Geo SCADA Expert
Memory type 70 MB data storage, 128 MB NAND flash, 128 MB RAM DDR3, 4 MB SRAM
Processor name ARM Cortex-A9 dual core at 500 MHz
Type of license 0 flowrun license
Input voltage 12...30 V DC
Product or component type remote terminal unit
Range of product SCADAPack 57x
Complementary
Analogue input type voltage, input range: 1...5 V, voltage, input range: 0...5 V, current, input range: 4...20 mA, current, input range: 0...20 mA
Counting frequency 2 x 10 kHz
Width 181.7 mm
Integrated connection type 1 USB 2.0 port USB type B, 1 USB 2.0 port USB type A - 115.2 kbit/s, 2 serial port for RS232/RS485 - 115.2 kbit/s, 2 serial port for RS232 - 115.2 kbit/s, 3 Ethernet RJ45, 10/100BASE-T
Communication port protocol HART, Telnet server, FTP server, IEC 60870-5-104, DNP3 level 4, Modbus TCP server, Modbus TCP client, Modbus RTU server, Modbus RTU client
Output type 10 digital for dry contact/solid state relay, 1 digital, 30 V, 0.5 A
Input type counter x2 inputs,, analog x8 inputs,, digital x18 inputs,, 12-24 V DC
Application structure 2 auxiliary tasks, 1 fast task, 1 master task
Net weight 1.2 kg
Length 150.5 mm
Maximum number of I/O expansion module 6607 for expansion I/O, 6602 for HART I/O, 6601 for expansion I/O, 5607 for expansion I/O, 5606 for expansion I/O, 5506 for analog input, 5415 for digital output, 5414 for digital input, 5405 for digital input, 5304 for analog output
Power consumption in W 6.5 W
Height 91.0 mm
Environment
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -40-185 °F, -40-85 °C
Pollution degree 2
Vibration resistance 1 gn constant acceleration, 7 mm constant amplitude
Marking UL, FCC, EAC, RCM, CE
Shock resistance 15 gn conforming to IEC 61131-2
Product certifications cCSAus OL, CSA, CE
Ambient air temperature for operation -40-149 °F when the unit is mounted in any other position, -40-158 °F when the unit is mounted horizontally on a vertical surface, -40-65 °C when the unit is mounted in any other position, -40-70 °C when the unit is mounted horizontally on a vertical surface
Standards ICES-003, UL 61010-1, UL 61010-2-020, IEC 61010-2-201, FCC CFR 47 part 15, CSA C22.2 No 61010-2-201, CSA C22.2 No 61010-1-12
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.43 cm
Package 1 Width 18.23 cm
Package 1 Length 16.1 cm
Package 1 Weight 1.2 kg
