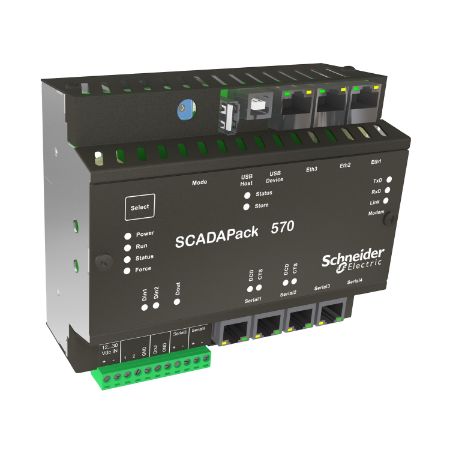

Picture of Smart RTU, SCADAPack57x, no flowrun license, 2 DI, 1 DO
SKU:

TBUP570-UA56-AA00S

Smart RTU, SCADAPack57x, no flowrun license, 2 DI, 1 DO

Old price: $6,528.50 INC GST
$6,202.08 INC GST
Available for Shipping : 17-Dec-2025
Smart RTU, SCADAPack57x, no flowrun license, 2 DI, 1 DO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-Dec-2025
Brochure
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Market segment water and waste water, oil and gas
Range compatibility EcoStruxure Geo SCADA Expert
Memory type 70 MB data storage, 128 MB NAND flash, 128 MB RAM DDR3, 4 MB SRAM
Processor name ARM Cortex-A9 dual core at 500 MHz
Input voltage 12...30 V DC
Product or component type remote terminal unit
Range of product SCADAPack 57x
Complementary
Counting frequency 2 x 10 kHz
Width 135.0 mm
Integrated connection type 1 USB 2.0 port USB type B, 1 USB 2.0 port USB type A - 115.2 kbit/s, 2 serial port for RS232/RS485 - 115.2 kbit/s, 2 serial port for RS232 - 115.2 kbit/s, 3 Ethernet RJ45, 10/100BASE-T
Communication port protocol HART, Telnet server, FTP server, IEC 60870-5-104, DNP3 level 4, Modbus TCP server, Modbus TCP client, Modbus RTU server, Modbus RTU client
Output type 1 digital, 30 V, 0.5 A
Input type counter x2 inputs,, digital x2 inputs,, 12-24 V DC
Application structure 2 auxiliary tasks, 1 fast task, 1 master task
Net weight 0.8 kg
Length 150.5 mm
Maximum number of I/O expansion module 6607 for expansion I/O, 6602 for HART I/O, 6601 for expansion I/O, 5607 for expansion I/O, 5606 for expansion I/O, 5506 for analog input, 5415 for digital output, 5414 for digital input, 5405 for digital input, 5304 for analog output
Power consumption in W 4.3 W
Height 75.0 mm
Environment
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -40-185 °F, -40-85 °C
Pollution degree 2
Vibration resistance 1 gn constant acceleration, 7 mm constant amplitude
Marking UL, FCC, EAC, RCM, CE
Shock resistance 15 gn conforming to IEC 61131-2
Product certifications cCSAus OL, CSA, CE
Ambient air temperature for operation -40-149 °F when the unit is mounted in any other position, -40-158 °F when the unit is mounted horizontally on a vertical surface, -40-65 °C when the unit is mounted in any other position, -40-70 °C when the unit is mounted horizontally on a vertical surface
Standards ICES-003, FCC CFR 47 part 15, UL 61010-2-020, UL 61010-1, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.28 cm
Package 1 Width 12.33 cm
Package 1 Length 15.05 cm
Package 1 Weight 850.0 g
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.7 kg
