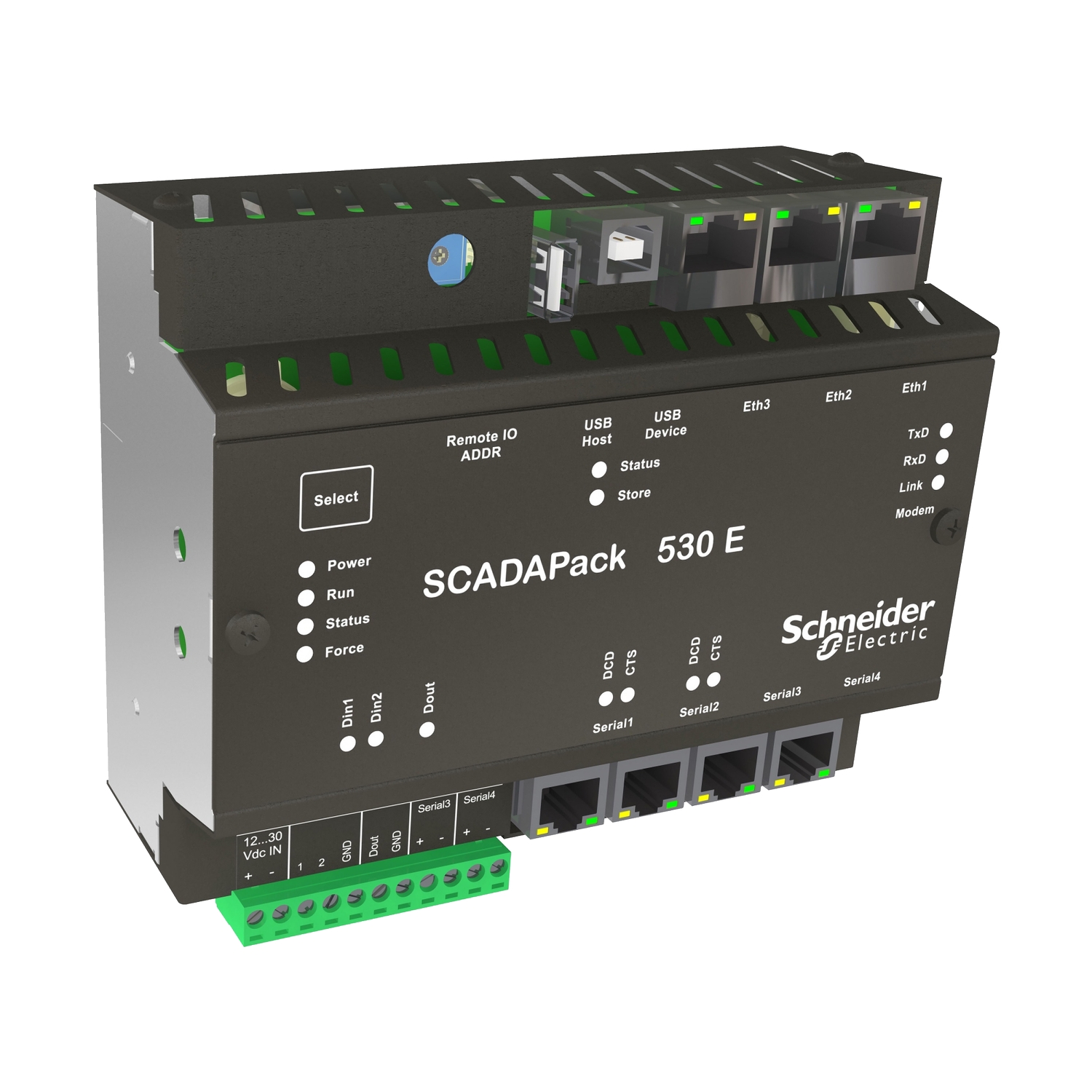

Picture of Smart RTU, SCADAPack 500E, with DNP3 SAv2, ATEX/ IECEx certification, 2 DI , 1 DO
SKU:

TBUP530-EC56-AA00X

Smart RTU, SCADAPack 500E, with DNP3 SAv2, ATEX/ IECEx certification, 2 DI , 1 DO

Old price: $7,089.50 INC GST
$6,735.02 INC GST
Available for Shipping : 26-Feb-2026
Smart RTU, SCADAPack 500E, with DNP3 SAv2, ATEX/ IECEx certification, 2 DI , 1 DO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Feb-2026
Brochure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Market segment water and waste water
Range compatibility EcoStruxure Geo SCADA Expert
Memory type 10 MB data storage, 128 MB NAND flash, 128 MB RAM DDR3, 4 MB SRAM
Processor name ARM Cortex-A9 dual core at 600 MHz
Product or component type remote terminal unit
Range of product SCADAPack 500E
Complementary
Counting frequency 2 x 10 kHz
Width 135 mm
Integrated connection type 1 USB 2.0 port USB type B, 1 USB 2.0 port USB type A, 2 serial port for RS232/RS485 - 115.2 kbit/s, 2 serial port for RS232 - 115.2 kbit/s, 3 Ethernet RJ45, 10/100BASE-T
Communication port protocol UDP server, UDP client, BOOTP server, DF1 client, Telnet server, FTP server, NTP server, NTP client, DNP3 level 4, Modbus TCP server, Modbus TCP client, Modbus RTU
Input voltage 12...30 V DC
Output type 1 digital, 30 V, 0.5 A sinking MOSFET output
Input type counter x2 inputs,, digital x2 inputs,, 12-24 V DC
Net weight 0.8 kg
Length 150.5 mm
Maximum number of I/O expansion module 6607 for expansion I/O, 6602 for HART I/O, 6601 for expansion I/O, 5607 for expansion I/O, 5606 for expansion I/O, 5506 for analog input, 5415 for digital output, 5414 for digital input, 5405 for digital input, 5304 for analog output
Communication service DNP3 secure authentication SAv2
Power consumption in W 5 W
Height 75 mm
Environment
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -40-185 °F, -40-85 °C
Pollution degree 2
Vibration resistance 1 gn constant acceleration, 7 mm constant amplitude
Marking FCC, UL, EAC, RCM, CE
Shock resistance 15 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -40-149 °F when the unit is mounted in any other position, -40-158 °F when the unit is mounted horizontally on a vertical surface, -40-65 °C when the unit is mounted in any other position, -40-70 °C when the unit is mounted horizontally on a vertical surface
Standards ICES-003, FCC CFR 47 part 15, UL 61010-2-020, UL 61010-1, UL 508
Product certifications cCSAus OL, CE, CSA, ATEX class1 zone 2, IECEx
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.28 cm
Package 1 Width 12.33 cm
Package 1 Length 15.05 cm
Package 1 Weight 0.8 kg
