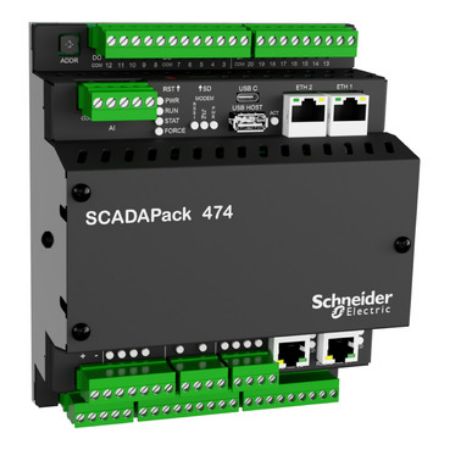

Picture of Smart RTU, SCADAPack 47x | 47xi, supporting DNP3/Modbus/IEC 60870, 3 flowrun license, 2 analog output
SKU:

TBUP474-UA50-BB03S

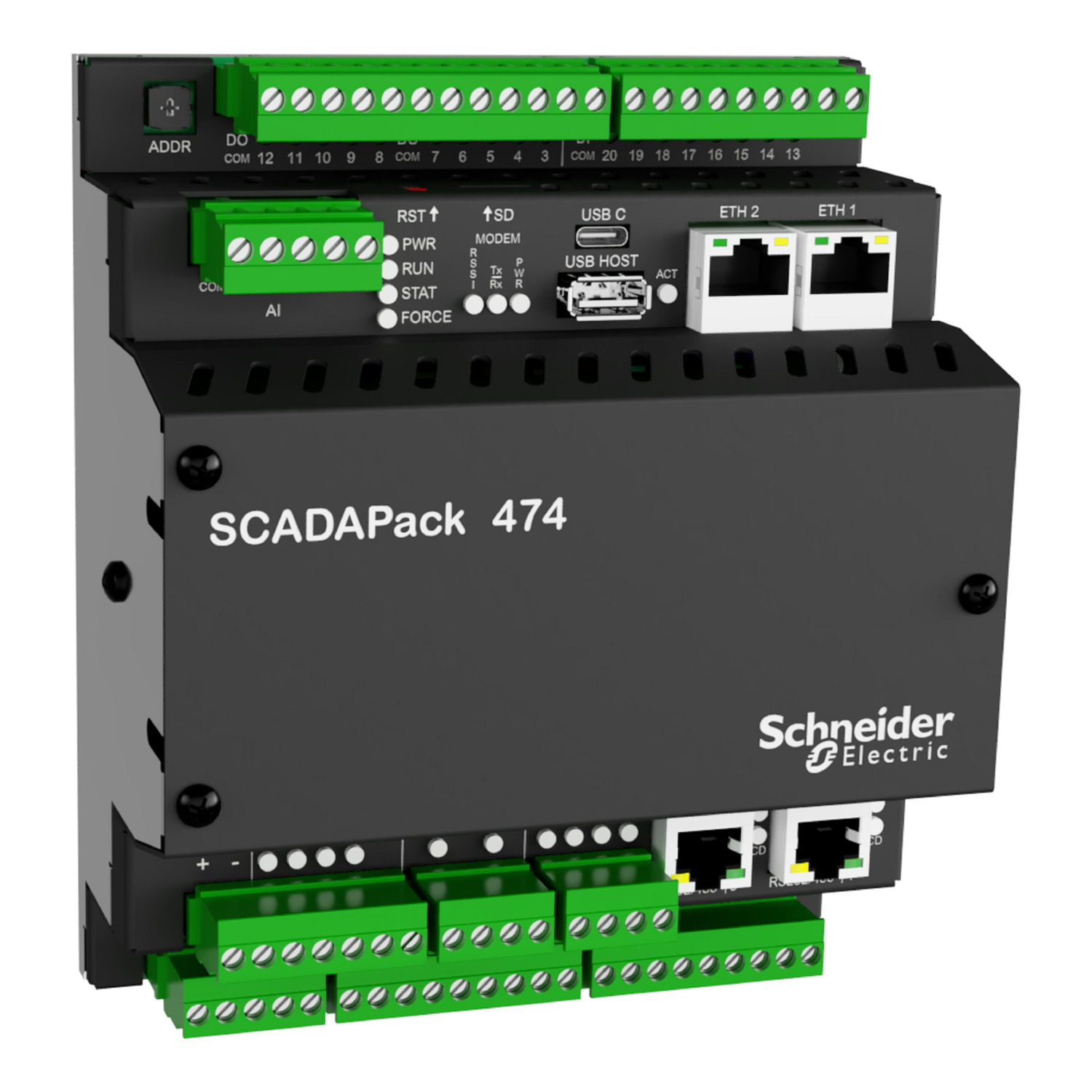

Smart RTU, SCADAPack 47x | 47xi, supporting DNP3/Modbus/IEC 60870, 3 flowrun license, 2 analog output

Old price: $7,062.00 INC GST
$6,708.90 INC GST
Available for Shipping : 28-Jan-2026
Product Selector
Smart RTU, SCADAPack 47x | 47xi, supporting DNP3/Modbus/IEC 60870, 3 flowrun license, 2 analog output
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Circularity Profile
Environmental Disclosure
Brochure
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Market segment water and waste water, oil and gas
Range compatibility Realift
Sensor type ARM Cortex-M3 at 500 MHz, ARM Cortex-A7 dual core at 500 MHz
Type of license 20 flowrun license
Memory type data storage 70 MB, NAND flash 256 MB, RAM DDR3 256 MB, SRAM 4 MB
Product or component type remote terminal unit
Range of product SCADAPack 47x | 47xi
Complementary
Analogue input type voltage, input range: 1...5 V, voltage, input range: 0...5 V, current, input range: 4...20 mA, current, input range: 0...20 mA
Counting frequency 4 x 150 Hz, 4 x 1.5 kHz, 4 x 10 kHz
Width 166.0 mm
Integrated connection type 1 USB 2.0 port USB type C, 1 USB 2.0 port USB type A, 1 serial port for RS232, 2 serial port for RS232/RS485 - 115.2 kbps, 2 serial port for RS485 - 115.2 kbps, 2 Ethernet 8-pin modular, RJ45 - 10/100 Mbps
Communication port protocol Telnet, FTP server, IEC 60870-5-104, DNP3 level 4, Modbus RTU client, Modbus RTU server, Modbus TCP server, Modbus TCP client
Input voltage 12...28 V DC
Output type 2 analog, 12 digital, 30 V, 2 A
Input type counter x12 inputs,, analog x12 inputs,, digital x20 inputs,, 12-24 V DC
Net weight 1.2 kg
Length 142.0 mm
Maximum number of I/O expansion module 5505 for RTD input, 6607 for expansion I/O, 6601 for expansion I/O, 5607 for expansion I/O, 5606 for expansion I/O, 5506 for analog input, 5415 for digital output, 5414 for digital input, 5304 for analog output
Communication service data logging in DNP3/ IEC 104
Power consumption in W 4 W
Analogue output type current 4...20 mA, current 0...20 mA
Height 88.0 mm
Environment
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -40-185 °F, -40-85 °C
Pollution degree 2
Vibration resistance 1 gn constant acceleration, 7 mm constant amplitude
Marking EAC, RCM, CE
Shock resistance 15 gn for 15 ms conforming to IEC 61131-2
Ambient air temperature for operation -40-149 °F when the unit is mounted in any other position, -40-158 °F when the unit is mounted horizontally on a vertical surface, -40-65 °C when the unit is mounted in any other position, -40-70 °C when the unit is mounted horizontally on a vertical surface
Standards FCC part 15 Subpart B class A, UL 61010-2-201, UL 61010-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 61010-1-12
Product certifications ICES-003, cULus HazLoc Class I Division 2 Group D, cULus HazLoc Class I Division 2 Group C, cULus HazLoc Class I Division 2 Group B, cULus HazLoc Class I Division 2 Group A, ACMA, CE, ATEX zone 2, ATEX II 3g Ex ec nC IIC T4 Gc, FCC part 15 class B
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.8 cm
Package 1 Width 16.6 cm
Package 1 Length 14.2 cm
Package 1 Weight 1.2 kg
