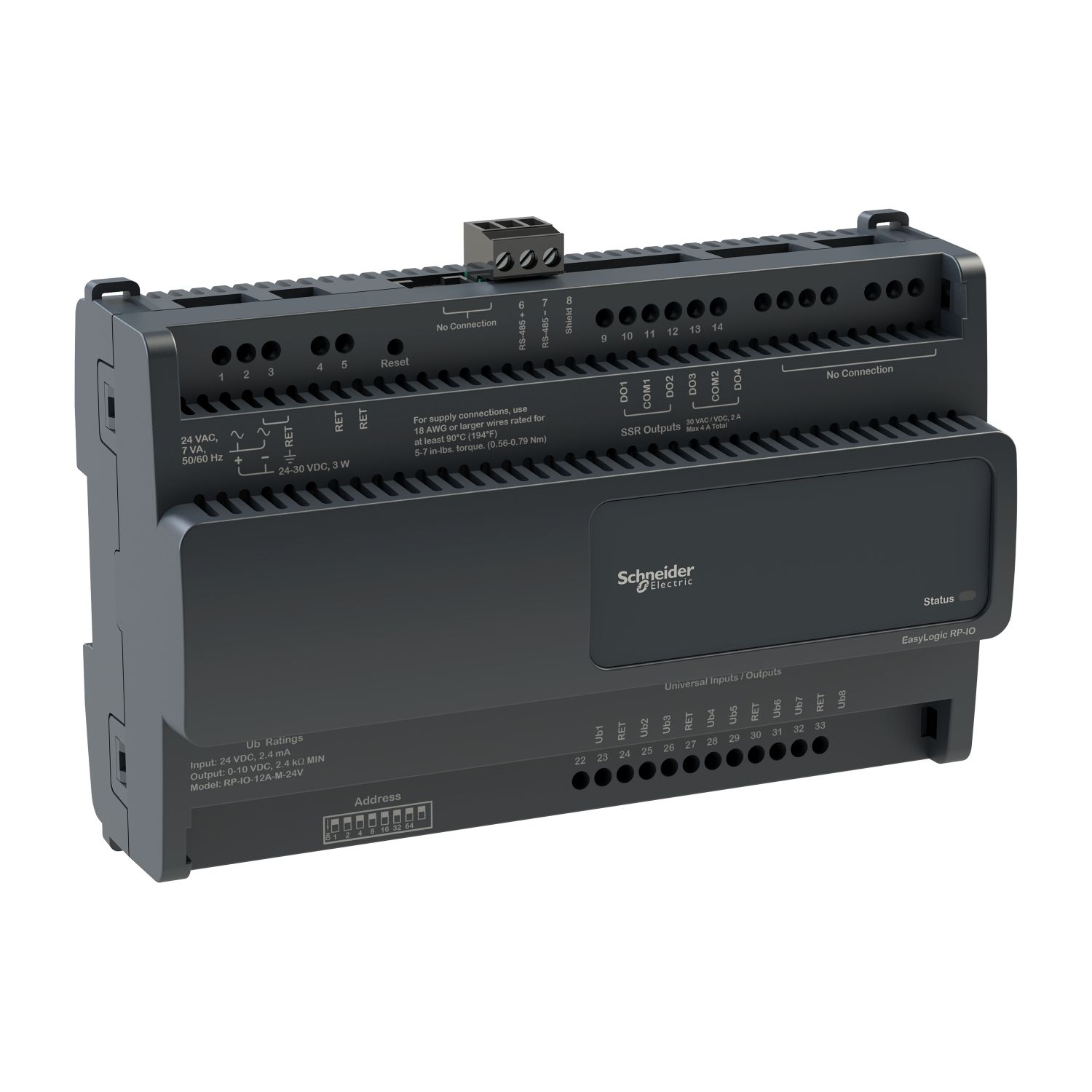

Picture of Controller, EasyLogic, RP-IO, BACnet MS/TP, 8 universal input/output, 4 solid state relay outputs
SKU:

SXWRIOF12AM10001

Controller, EasyLogic, RP-IO, BACnet MS/TP, 8 universal input/output, 4 solid state relay outputs

$726.38 INC GST
Available for Shipping : 06-Feb-2025
Controller, EasyLogic, RP-IO, BACnet MS/TP, 8 universal input/output, 4 solid state relay outputs
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
End of life manual
CAD
Product environmental
Product Page Link
Product Data Sheet

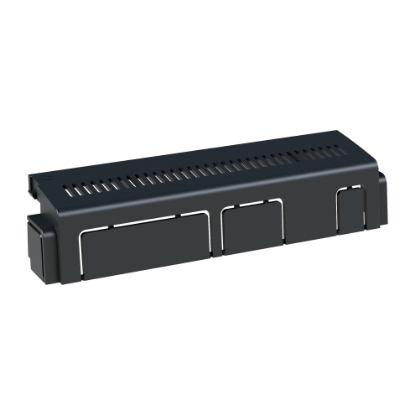

EasyLogic RP-IO is an I/O expansion module for HVAC applications over BACnet MS/TP. The RP-IO can either be used as a standalone field controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server as the parent server. The RP-IO is a BACnet Advanced Application controller (B-AAC) that can be installed as a 3rd party BACnet device in any BACnet BMS, or as natively part of an EcoStruxure Building BMS system. The RP-IO module can share its IO resources across applications running in SpaceLogic devices or third-party systems BACnet devices. The RP-IO-12A and -16E models provide 12 or 16 I/O points, consisting of two different sets of I/O point types. The versatile mix of I/O point types match a wide variety of applications. The RP-C-12A has 8 Universal IO Type and 4 Solid-state relay outputs. Its dimensions are 110 mm (4.3 in.) in height, 180 mm (7.1 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available optional IO terminal covers (SXWRPCCOV10001), DIN-RAIL clip/end clip (SXWDINEND10001).

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device application HVAC
Display type without display
Width 180 mm
Input voltage 0...10 V DC for universal input
Relative humidity 0-95 % RH, non-condensing
Power consumption in VA 7 VA
Ambient air temperature for storage -40-70 °C
Colour black
Mounting mode DIN rail mount
Memory type 32 MB flash, 6 MB internal
Topology daisy chain
Height 110 mm
Depth 64 mm
Range EasyLogic
Input/output type 8 universal I/O
Protection type MOV suppression, internal fuse
Power consumption in W 3 W
Ambient air temperature for operation 0-50 °C at normal operation
Number of outputs 4 form A relay output
Range of product EasyLogic
[Us] rated supply voltage 24...30 V DC, 24 V AC +/- 15 %
Network frequency 60 Hz, 50 Hz
Product certifications RCM
Complementary
Product compatibility BACnet field controller
Processor name ARM Cortex-A7 single core
Flame retardance UL94-V0
Backup time 7 days
Communication port protocol BACnet MS/TP
Range compatibility EasyLogic module
Standards ICES-003, UL 916, EN 50491-3, EN 60730-2-11, EN 60730-1, EN 50491-5-3, EN 61000-6-2, UL 2043, EN 50491-5-2, EN 61000-6-3
Switching frequency 25 Hz
Product brand Schneider Electric
Output voltage 0...10 V DC for universal output
Range EasyLogic
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.2 cm
Package 1 Width 6.6 cm
Package 1 Length 18 cm
Package 1 Weight 376 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 39.8 cm
Package 2 Width 29.9 cm
Package 2 Length 15 cm
Package 2 Weight 3.062 kg
Unit Type of Package 3 3
Number of Units in Package 3 168
Package 3 Height 60 cm
Package 3 Width 80 cm
Package 3 Length 103 cm
Package 3 Weight 84 kg
