Relay module, SpaceLogic RP Expansion Modules, 4 Channel

$1,117.20 INC GST
Available for Shipping : 13-Feb-2025
Relay module, SpaceLogic RP Expansion Modules, 4 Channel
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Declaration of conformity
CAD
Product environmental
Product Page Link
Product Data Sheet

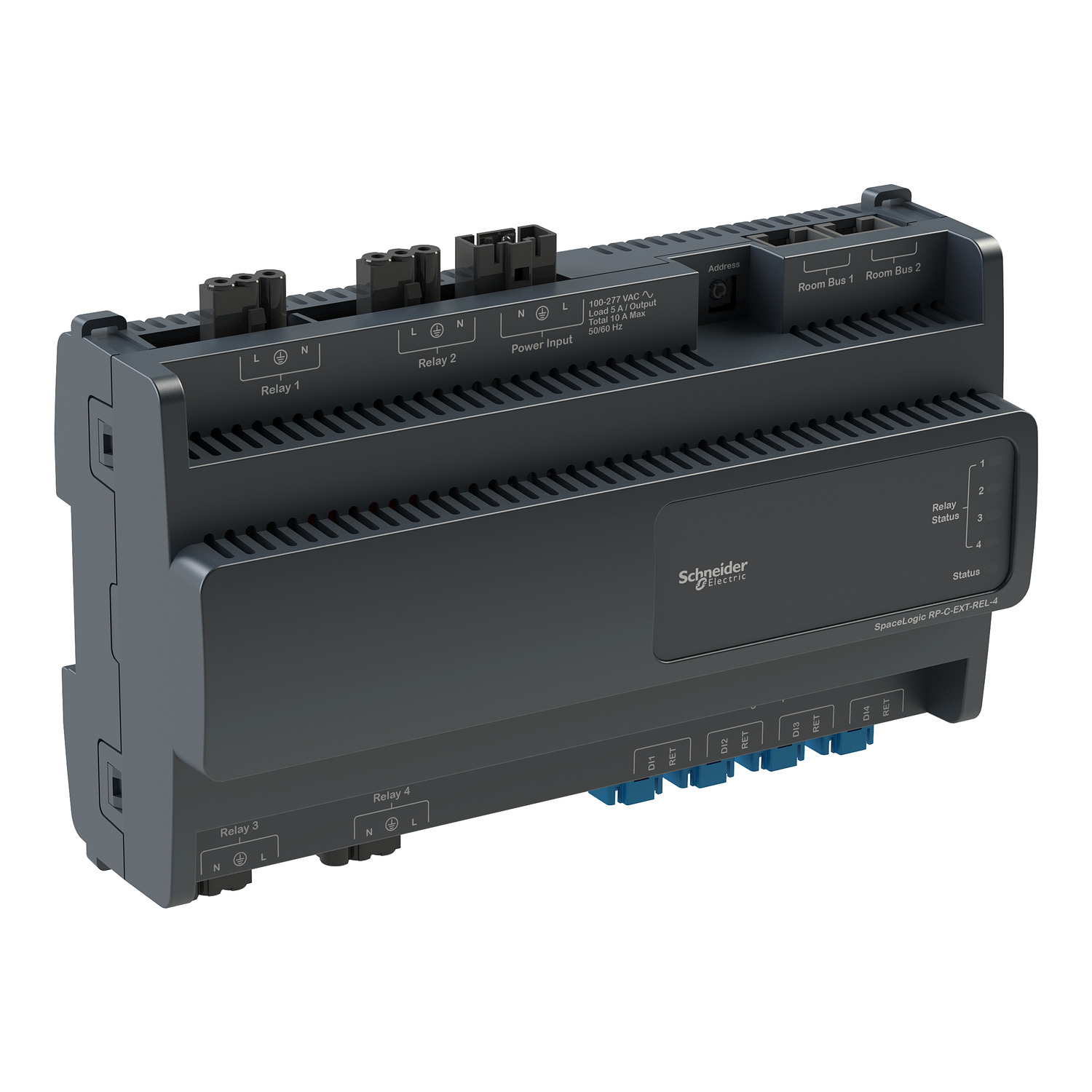

The SpaceLogic RP-C-EXT-REL-4 is a 4-channel relay module that connects to the RP room controllers, enables power supply and control of lights. It features four relay outputs for power supply and control of lights. Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP20. This module is part of the RP Series expansion modules for connected room solution and can be combined with other modules from this product range.

Products specifications

Attribute name Attribute value
Main
Device short name RP-C-EXT-REL-4
Discrete input number 4 , dry contact
[Us] rated supply voltage 100...277 V AC
Discrete output voltage 100...277 V AC for power supply output
Range EcoStruxure Building Operation
Discrete output current 5 A for per output (L-N)
Product name SmartX Room Purpose Controller
Product or component type I/O expansion module
Discrete output number 4 relay
Product brand Schneider Electric
Complementary
Memory description internal RAM 320 kB, flash 512 KB
Supply mains, <10 A
Depth 64 mm
Range compatibility EcoStruxure Building Operation software
Width 198 mm
Measurement accuracy 1 %
Local signalling LED (green) for output relay state, LED (green/red) for status indication
Mounting support surface mount, DIN rail
Colour black
Control type ADDRESS, range: 0-9 with rotary switch(es)
Supply voltage limits 90-304 V
Power supply input current 2.2 mA at 5 V
Processor name ARM Cortex-M4
Function available light control
Input type digital
Protection type external fuse at 16 A
Communication port protocol RS485, Ethernet Modbus TCP/IP daisy chain
Maximum current per output common 10 A at L-N
Port Ethernet 10/100BASE-T 2 port RJ45
Measurement range 1…3000 W
Height 110 mm
Electrical connection 3-pin terminal block, 1 terminal(s) power supply, 3-pin terminal block, 4 terminal(s) output, 2-pin terminal block, 4 terminal(s) input circuit
Data backed up 16 MB flash memory
Network frequency 60 Hz, 50 Hz
Environment
Overvoltage category III
IP degree of protection IP20
Relative humidity 20-90 %, non-condensing
Ambient air temperature for storage -20-70 °C
Flame retardance UL94-V0
Electromagnetic compatibility immunity to electromagnetic emissions conforming to EN 61000-6-2, immunity to electromagnetic emissions conforming to EN 50491-5-3, electromagnetic emission class B conforming to FCC part 15 Subpart B, electromagnetic emission conforming to EN 50491-5-2, electromagnetic emission conforming to EN 61000-6-3
Ambient air temperature for operation 0-50 °C
Product certifications RCM
Pollution degree 2
Standards UL 916, EN 50491-3, EN 60730-2-11, EN 60730-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 21.2 cm
Package 1 Width 7.0 cm
Package 1 Length 13.5 cm
Package 1 Weight 468.0 g
