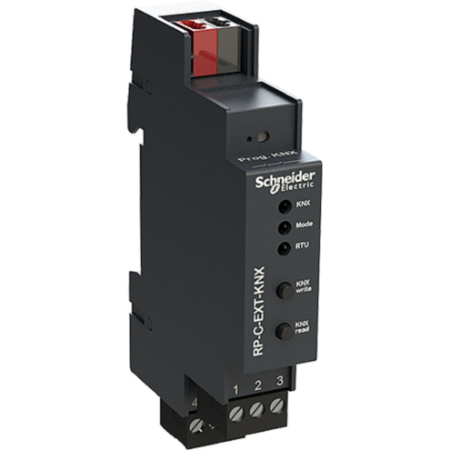

Picture of KNX interface module, SpaceLogic RP Expansion Modules
SKU:

SXWREKNX10001

KNX interface module, SpaceLogic RP Expansion Modules

$769.20 INC GST
Available for Shipping : 13-Feb-2025
KNX interface module, SpaceLogic RP Expansion Modules
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
CAD
Product Page Link
Product Data Sheet

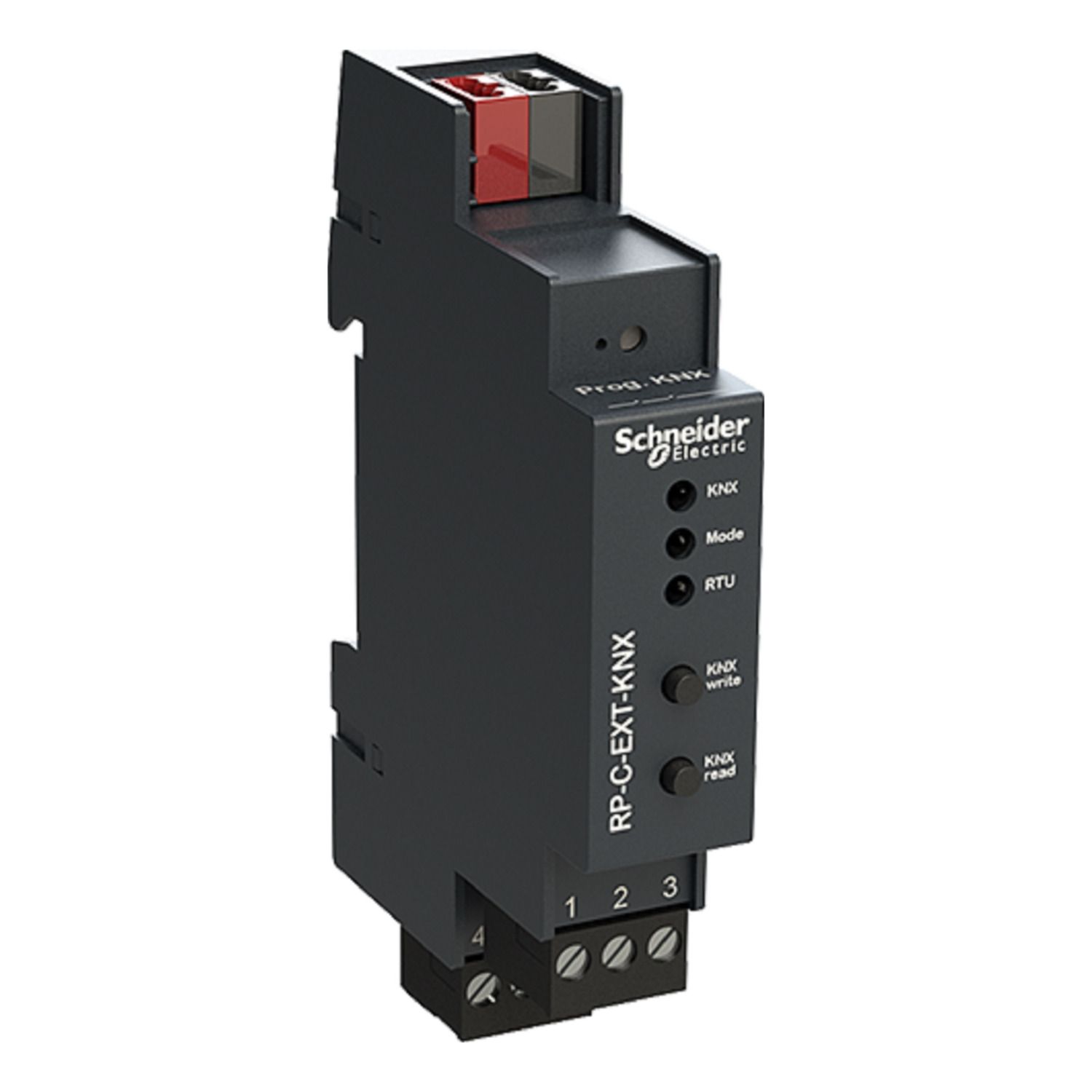

The SpaceLogic RP-C-EXT-KNX is a KNX Modbus gateway that connects to the RP controller for interfacing with KNX pushbuttons and sensors It connects to the RP-C room controllers and provides an interface with KNX devices such as control units for lights, blinds, and room temperature. It allows bi-directional control and monitoring of all parameters of the connected KNX devices, for control lights and blinds in a room. The gateway has two push-buttons and three LEDs on the front to enable local operation of the device and status indication. Its dimensions are 90 mm (3.5 in.) in height, 18 mm (0.7 in.) in width and 60 mm (2.4 in.) in depth. The ingress protecton rating is IP20. The KNX Modbus gateway is designed for installation on a DIN rail with a width of 1 unit (18 mm or 0.7 inch). The gateway connects to one of the SpaceLogic RP-C controller's configurable RS-485 ports.

Products specifications

Attribute name Attribute value
Main
Device short name RP-C-EXT-KNX
[Us] rated supply voltage 24 V DC
Range EcoStruxure Building Operation
Product name SmartX Room Purpose Controller
Product or component type bus extension module
Product brand Schneider Electric
Complementary
Depth 60 mm
Range compatibility EcoStruxure Building Operation software
Width 18 mm
Local signalling 3 LEDs (multi-colour) for status indication
Mounting support DIN rail
Processor name ARM Cortex-M4
Function available blind control, light control
Net weight 50 g
Communication port protocol RS485, Modbus RTU
Height 90 mm
Electrical connection 2-pin spring terminal, 1 terminal(s) KNX device, 3-pin terminal block, 1 terminal(s) for serial communication, 3-pin terminal block, 1 terminal(s) power supply
Environment
IP degree of protection IP20
Relative humidity 5-93 %, non-condensing
Ambient air temperature for storage -25-70 °C
Flame retardance UL94-V0
Electromagnetic compatibility immunity to electromagnetic emissions conforming to EN 61000-6-2, immunity to electromagnetic emissions conforming to EN 50491-5-3, electromagnetic emission conforming to EN 50491-5-2, electromagnetic emission conforming to EN 61000-6-3
Ambient air temperature for operation -5-45 °C
Standards EN/IEC 63044-3:2018
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.0 cm
Package 1 Width 9.0 cm
Package 1 Length 1.8 cm
Package 1 Weight 50.0 g
