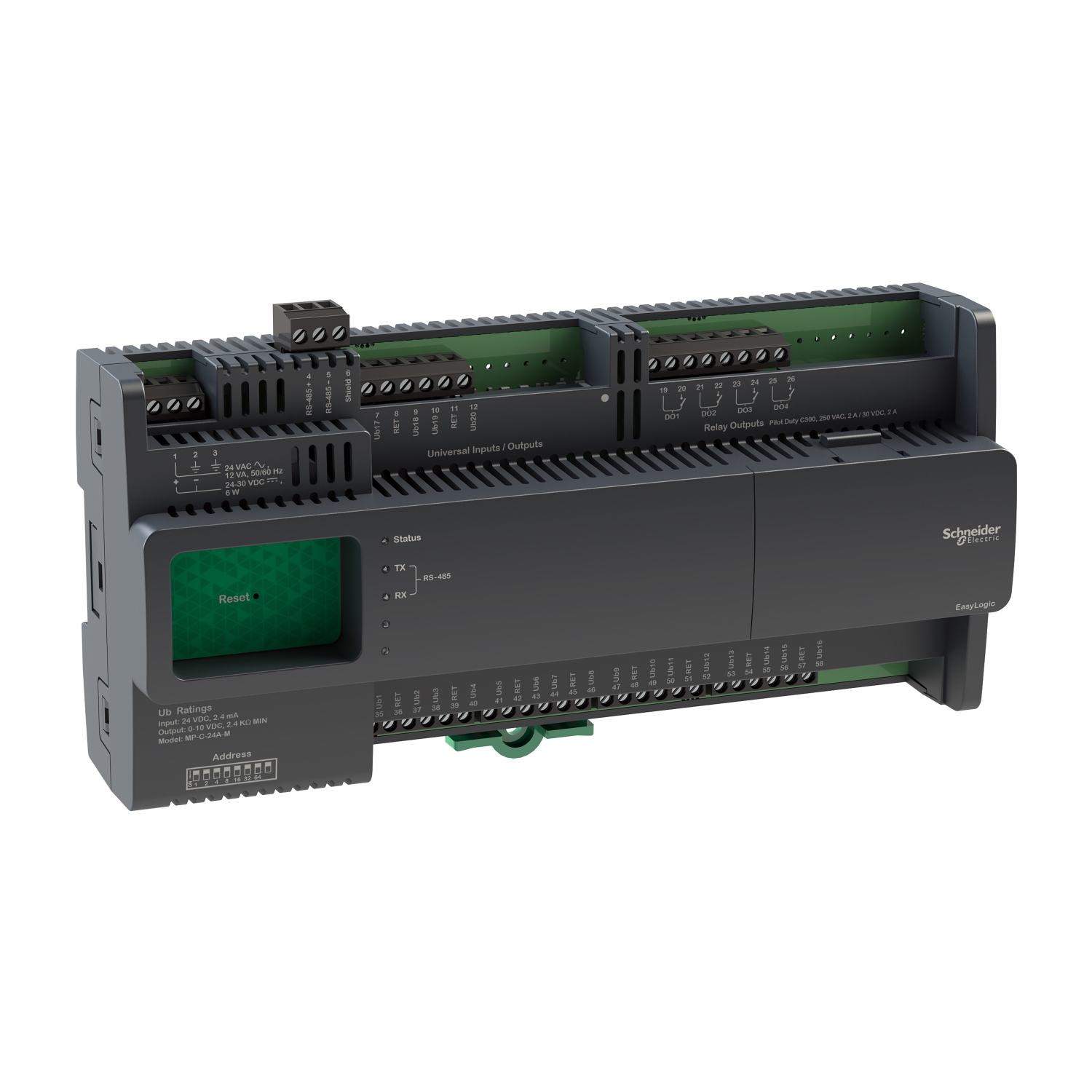

Picture of Controller, EasyLogic, MP-C, BACnet MS/TP, 20 universal input/output, 4 relay outputs
SKU:

SXWMPC24AM10001

Controller, EasyLogic, MP-C, BACnet MS/TP, 20 universal input/output, 4 relay outputs

$2,289.88 EXCL GST
Available for Shipping : 23-Jan-2025
Controller, EasyLogic, MP-C, BACnet MS/TP, 20 universal input/output, 4 relay outputs
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
End of life manual
CAD
Instruction sheet
Product Page Link
Product Data Sheet
EasyLogic MP-C is a multi-purpose, fully programmable, BACnet MS/TP based field controller. The MP-C can either be used as a standalone field controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server as the parent server. The MP-C is a BACnet Advanced Application controller (B-AAC) that can be installed as a 3rd party BACnet device in any BACnet BMS, or as natively part of an EcoStruxure Building BMS system. The MP-C has a wide range of flexible IO that enable control of large HVAC plant in a standalone manner whilst being part of a wider EcoStruxure Building BMS system. MP-C can either be used as a standalone field controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server as the parent server. The MP-C-24A has 20 Universal I/O Type and 4 Form A Relay I/O points. Its dimensions are 110 mm (4.3 in.) in height, 234 mm (9.2 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available DIN-RAIL clip/end clip (SXWDINEND10001).

Related products

Picture of DIN-rail end clip, SpaceLogic, package of 25 pieces

DIN-rail end clip, SpaceLogic, package of 25 pieces

SXWDINEND10001
$206.40 EXCL GST
View Detail
