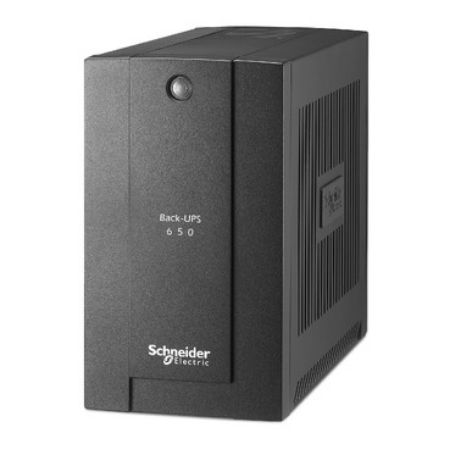

Picture of Back-UPS, Schneider Electric Back-UPS, 650VA, 230V, AVR, 5 IEC outlets
Picture of Back-UPS, Schneider Electric Back-UPS, 650VA, 230V, AVR, 5 IEC outlets
Picture of Back-UPS, Schneider Electric Back-UPS, 650VA, 230V, AVR, 5 IEC outlets
SKU:

SX3650CI

Back-UPS, Schneider Electric Back-UPS, 650VA, 230V, AVR, 5 IEC outlets

$163.68 EXCL GST
Available for Shipping : 14-Apr-2025
Product Selector
Back-UPS, Schneider Electric Back-UPS, 650VA, 230V, AVR, 5 IEC outlets
Be the first to review this product
Manufacturer: Schneider Electric
User guide
End of life manual
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Rated power in W 390 W
Battery type lead-acid battery
Main Input Voltage 230 V
Rated power in VA 650 VA
Cable length 3.81 ft
Curve proportional loss 0
UPS type line interactive
Output voltage 230 V
Number of tare power 12 W
Curve load minimum 3 %
Number of battery free slots 0
Curve square loss 0.011
Curve X-axis title load
Curve X-axis minimum 0 %
Curve Y-axis maximum 100 %
Curve Y-axis units percentage
Output connection type 1 IEC Jumpers , 4 IEC 60320 C13
Liquid value 0
Wave type stepped approximation to a sinewave
Mounting preference no preference
Battery charger power 10 W rated
Maximum input current 7 A
Output frequency 50/60 Hz +/- 1 Hz unsynchronised , 50/60 Hz +/- 3 Hz sync to mains
Number of battery filled slots 0
Surge energy rate 273 J
Curve Y-axis minimum 50 %
Battery power in VAH 77 VAh runtime
Curve fixed loss 0.0265
Curve X-axis maximum 100 %
Curve X-axis units percentage
Curve load maximum 100 %
Curve test cond ID Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
Battery recharge time 8 h
UPS size WS
Number of power module filled slots 0
Two post mountable 0
Redundant No
Battery curve B
Curve Y-axis title efficiency
Extended runtime 0
Transfer time 6 ms typical : 10 ms maximum
Show note OP temperature No
Maximum configurable power in VA 650 VA
Maximum configurable power in W 390 W
Curve equation efficiency
Number of power module free slots 0
Environmental
Operating altitude 0...10000 ft
Acoustic level 45 dBA
Relative humidity 0-95 %
Ambient air temperature for storage -15-45 °C
Storage altitude 0-30000 ft
Ambient air temperature for operation 0-40 °C
Physical
Depth 25.7 cm
Width 11.5 cm
Colour black
Mounting mode not rack-mountable
Net weight 6.2 kg
USB compatible No
Height 20 cm
Input
Input voltage limits 140...300 V
Network frequency 45...65 Hz
Switching current capacity 7 A
Output
Graph display 1
Conformance
Standards EN/IEC 62040-2:2018, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-1:2019/A11:2021
Product certifications NEMKO, GOST, CE
Batteries & Runtime
Battery life 3-5 year(s)
Communications & Management
Control panel LED Status display with on line : on battery
Alarm alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
General
Provided equipment user manual
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 27 cm
Package 1 Width 19.8 cm
Package 1 Length 34 cm
Package 1 Weight 7 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 80 cm
Package 2 Width 80 cm
Package 2 Length 120 cm
Package 2 Weight 72 kg
