Picture of Reader, Security Expert, Smartcard, 13.56MHz, mullion, black, Bluetooth
SKU:

SX-RD-SB-BT

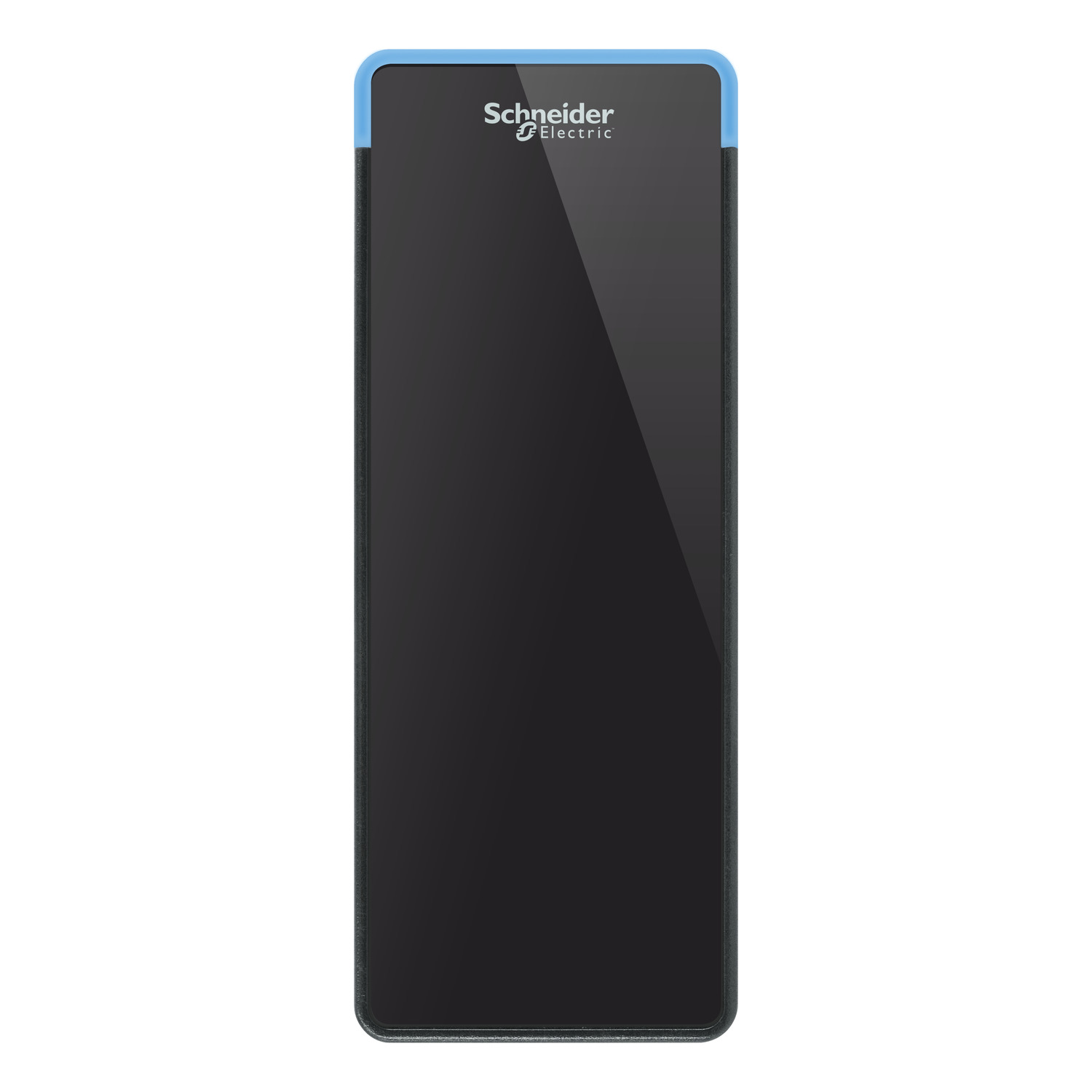

Reader, Security Expert, Smartcard, 13.56MHz, mullion, black, Bluetooth

$422.40 INC GST
Available for Shipping : 13-Feb-2025
Reader, Security Expert, Smartcard, 13.56MHz, mullion, black, Bluetooth
Be the first to review this product
Manufacturer: Schneider Electric
Product Page Link
Product Data Sheet
The Security Expert SX Mullion reader provides a complete multi-technology smart card RFID solution. It is compatible with all Wiegand capable control systems and incorporating RS-485 communication. Security Expert card readers allow rapid deployment of secure technology in any environment. This reader is white and equipped with a keypad. It is compatible with 13.56 MHz and Bluetooth wireless technology. Dimensions are 117 mm (4.61") in height, 46 mm (1.81") in width and 18 mm (0.71") in depth. This product is certified RSM, RCM, AS/NZS 2201.1 Class 5, CE, UKCA, UL/ULC, ICES-003, FCC, OSDP. This model is suited for mullion-mount.

Products specifications

Attribute name Attribute value
Main
Depth 18 mm
Width 45 mm
[In] rated current 130 mA
Technology type RFID
Ambient air temperature for storage -10-85 °C
Colour black
Mounting mode wall-mounted
Net weight 110 g
Product or component type access control card reader
Standards CAN/ULC-S319-05, EN 50131-6:2008, EN 50131-3:2009, EN 50131-1:2006, UL 294, ICES-003, FCC CFR 47 part 15:class A
Communication port protocol Bluetooth, RS485, Wiegand
Maximum cable distance between devices 150 m
Height 115 mm
Ambient air temperature for operation -35-65 °C
[Us] rated supply voltage 9.5...14 V DC
Product certifications CE, RCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1

Related products

Picture of ISO Card, EcoStruxure Security Expert, Fast Track credentials, 2KB memory

ISO Card, EcoStruxure Security Expert, Fast Track credentials, 2KB memory

SX-ISO-FT-2K
$10.32 INC GST
View Detail
Picture of ISO Card, EcoStruxure Security Expert, Fast Track credentials, 4KB memory

ISO Card, EcoStruxure Security Expert, Fast Track credentials, 4KB memory

SX-ISO-FT-4K
$11.64 INC GST
View Detail

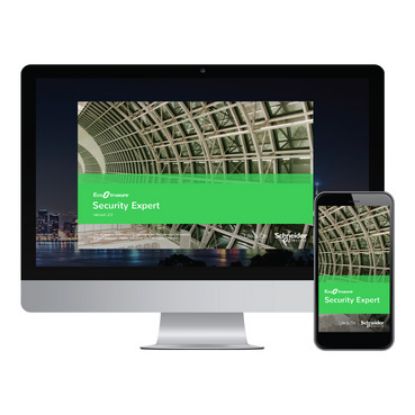

Picture of Security Expert Mobile Credential
