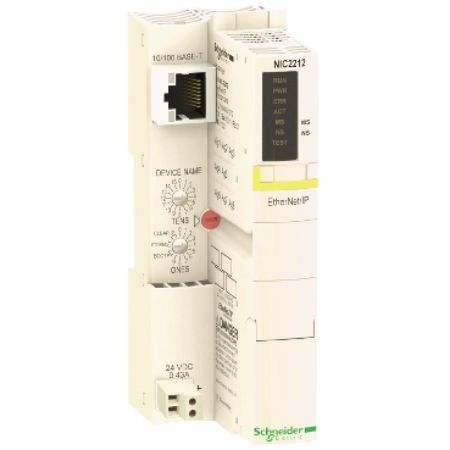

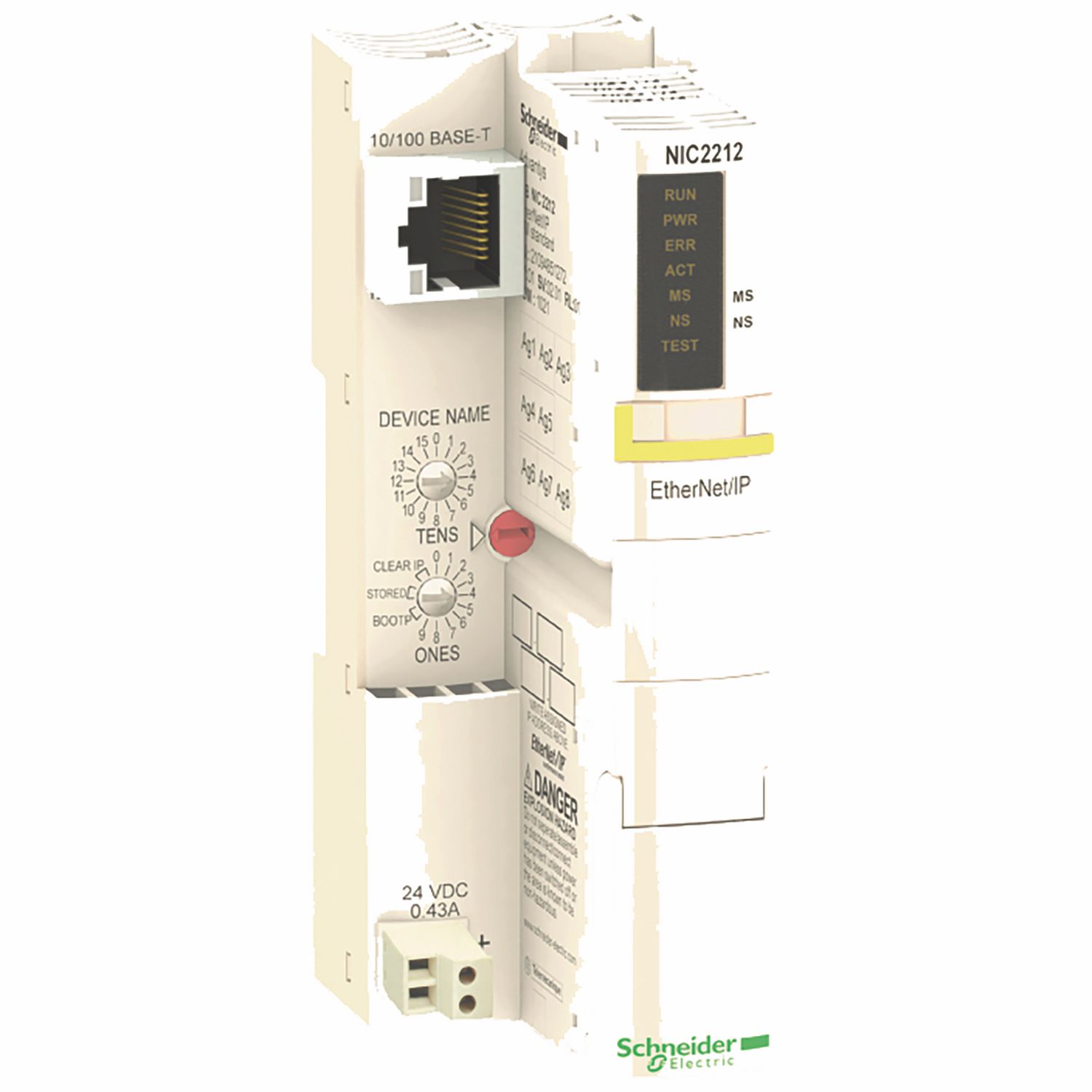

Picture of network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s
SKU:

STBNIC2212

network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s

$1,313.07 INC GST
Available for Shipping : 12-Jan-2026
network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
Environmental Disclosure
User guide
Catalog
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol and SNMP agent. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Products specifications

Attribute name Attribute value
Main
Transmission rate 10/100 Mbit/s
Exchange mode half or full duplex
Range of product Modicon STB distributed I/O solution
Number of devices per segment 0-256
Port Ethernet 10BASE-T/100BASE-T
Integrated connection type Ethernet/IP conforming to IEEE 802.3 8-way female (RS232 port), Ethernet/IP conforming to IEEE 802.3 HE-13 (RS232 port), Ethernet/IP conforming to IEEE 802.3 female RJ45 double shielded twisted pair via Ethernet (network)
Product or component type standard Network Interface Module
Number of segments 1 primary, maximum 6 extensions
Complementary
Maximum supply current 700 A
Supply voltage limits 19.2-30 V
Input current 430 mA for supply circuit
Marking CE
Communication service SNMP agent, BootP/DHCP protocol, embedded web (configuration,diagnostics and access to variable)
Output voltage 5.25 V DC (tolerance: +/- 0.21 %) for logic bus
Status LED 1 LED test mode (TEST), 1 LED power supply (PWR), 1 LED NS, 1 LED MS, 1 LED module error (ERR), 1 LED island state (RUN), 1 LED ACT
Height 40 mm
Nominal output current 1.2 A, 0.575 A at 60-70 °C
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Net weight 0.145 kg
Power supply type SELV
Number of addressable I/O module 0-32 per island
Environment
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Ambient air temperature for operation -25-70 °C (with derating factor), 0-60 °C (without derating)
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Standards IEC 61131-2 : 2003, FM Class 1 division 2, groups A, B, C and D T4A with 70 °C
Product certifications CSA, C-Tick, ODVA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.300 cm
Package 1 Width 7.200 cm
Package 1 Length 13.000 cm
Package 1 Weight 165.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.345 kg
