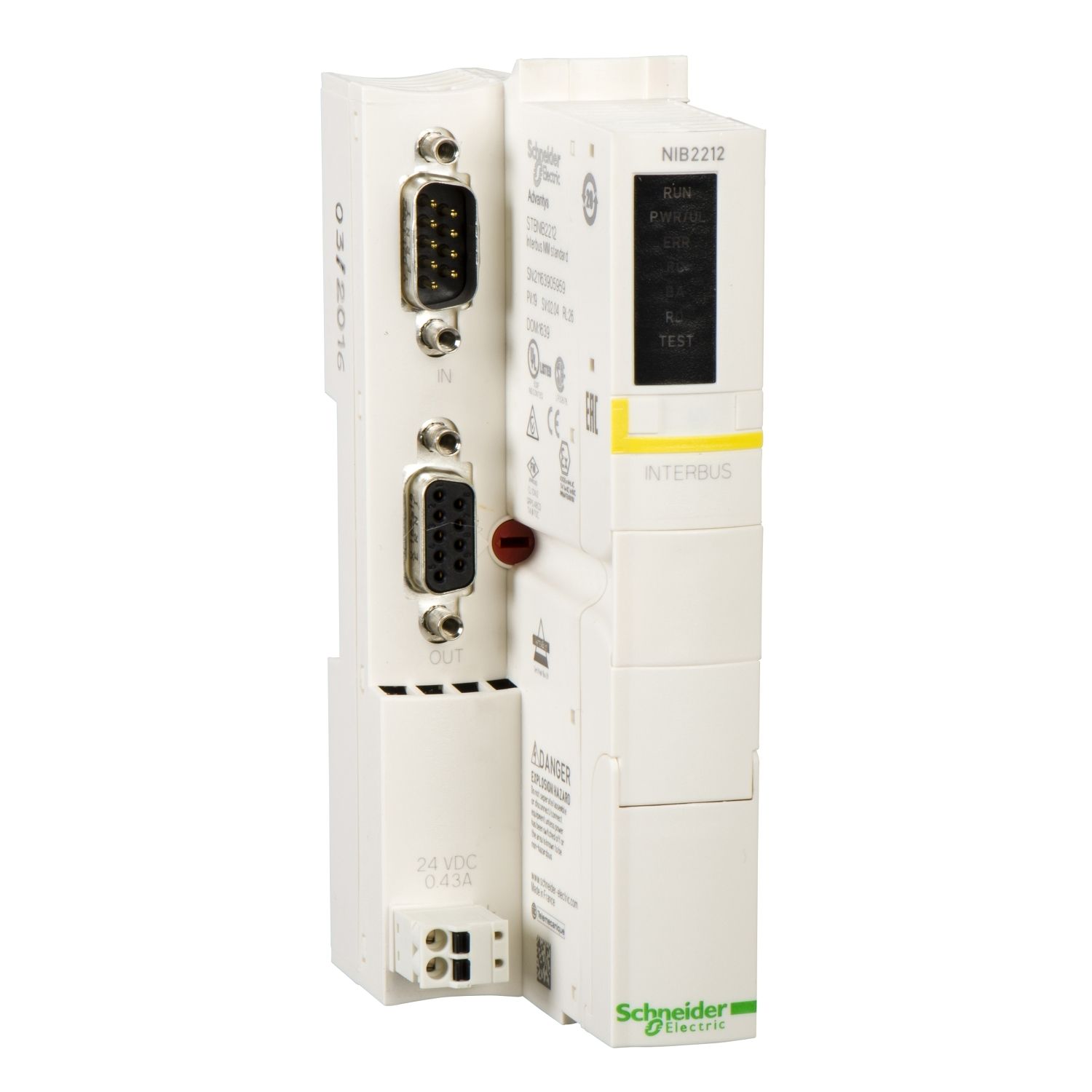

Picture of standard Network Interface Module STB - Interbus - 500 kbit/s
SKU:

STBNIB2212

standard Network Interface Module STB - Interbus - 500 kbit/s

$1,905.09 INC GST
Available for Shipping : 26-Jan-2026
standard Network Interface Module STB - Interbus - 500 kbit/s
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Jan-2026
User guide
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Number of slave 512
Structure type industrial field bus (Generation4)
Transmission rate 500 kbit/s for bus length of 0-50 m for the installation bus, 500 kbit/s for bus length of 0-400 m per bus segment between stations, 500 kbit/s for bus length of 0-12800 m for the bus between stations
Range of product Modicon STB distributed I/O solution
Integrated connection type Interbus conforming to InterBus Club 8-way female (RS232 port), Interbus conforming to InterBus Club HE-13 (RS232 port), Interbus conforming to InterBus Club 9-way female isolated RS485 SUB-D 1 twisted shielded pair (output bus), Interbus conforming to InterBus Club 9-way male isolated RS485 SUB-D 1 twisted shielded pair (input bus)
Product or component type standard Network Interface Module
Number of segments 1 primary, maximum 6 extensions
Complementary
Maximum output impedance 0.05 Ohm at 100000 kHz
Maximum supply current 700 A
Supply voltage limits 19.2-30 V
Input current 430 mA for supply circuit
Marking CE
Communication service diagnostics, logical addressing, implicit exchange of process data
Output voltage 5.25 V DC (tolerance: +/- 0.21 %) for logic bus
Status LED 1 LED (yellow) test mode, 1 LED (red) RD, 1 LED (red) module error (ERR), 1 LED (green) RC, 1 LED (green) power supply (PWR), 1 LED (green) island state (RUN), 1 LED (green) BA
Height 40 mm
Nominal output current 1.2 A, 0.575 A at 60-70 °C
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Net weight 0.155 kg
Power supply type SELV
Number of addressable I/O module 0-32 per island
Environment
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Electromagnetic compatibility immunity to electromagnetic interference conforming to IEC 61131-2
Ambient air temperature for operation -25-70 °C (with derating factor), 0-60 °C (without derating)
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications ATEX Cat 3G, FM Class 1 Division 2, UL, C-Tick, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 8.000 cm
Package 1 Length 13.000 cm
Package 1 Weight 178.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.669 kg
