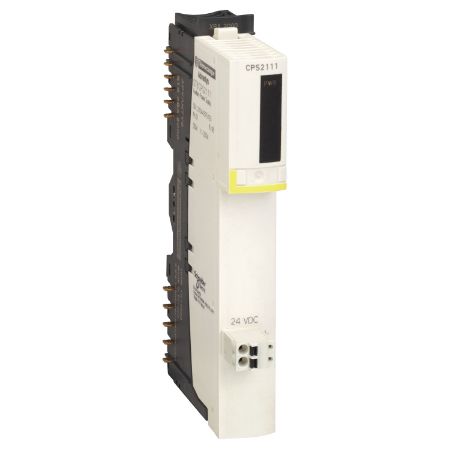

Picture of auxiliary power supply kit, Modicon STB, for logic of IO module
SKU:

STBCPS2111K

auxiliary power supply kit, Modicon STB, for logic of IO module

$516.75 INC GST
Available for Shipping : 12-Jan-2026
auxiliary power supply kit, Modicon STB, for logic of IO module
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Environmental Disclosure
User guide
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This auxiliary power supply kit is for logic I/O module. It is an auxiliary power supply kit with a rated supply voltage of 24V DC, an output current of 1.2A, an input current of 400mA and output voltage of 5.25V ±0.21% logic bus. This product is compatible with most major fieldbus networks. It is furnished with 2-pin removable connector for power supply. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, FM Class 1 Division 2, CSA and UL. The kit includes terminal spring clamp connector, terminal screw type connector, STBXBA2100 base and STBCPS2111 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon STB distributed I/O solution
Product specific application supply for logic of I/O module
Product or component type auxiliary power supply kit
Complementary
Supply voltage limits 19.2-30 V
Electrical connection 2 pins for removable connector for power supply
Marking CE
Output voltage type DC
Output voltage 5.25 V +/- 0.21 % logic bus
[Us] rated supply voltage 24 V
Kit composition terminal screw type connector, STBCPS2111 module, STBXBA2100 base, terminal spring clamp connector
Overvoltage category II
Supply circuit type DC
Power supply output current 1.2 A
Input current 400 mA
Environment
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Electromagnetic compatibility immunity to electromagnetic interference conforming to IEC 61131-2
Ambient air temperature for operation -25-70 °C (without derating)
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications FM Class 1 Division 2, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.600 cm
Package 1 Width 8.000 cm
Package 1 Length 13.100 cm
Package 1 Weight 122.000 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.458 kg

Related products

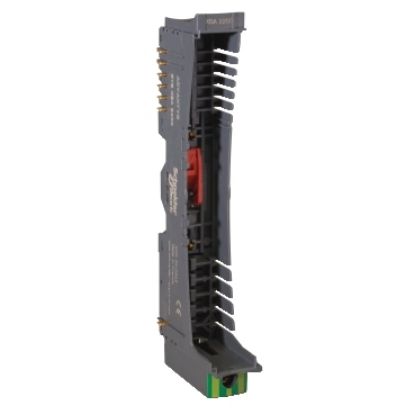

Picture of Modicon STB - mounting base - for auxiliary power supply
