SKU:

SSM3A325BDR

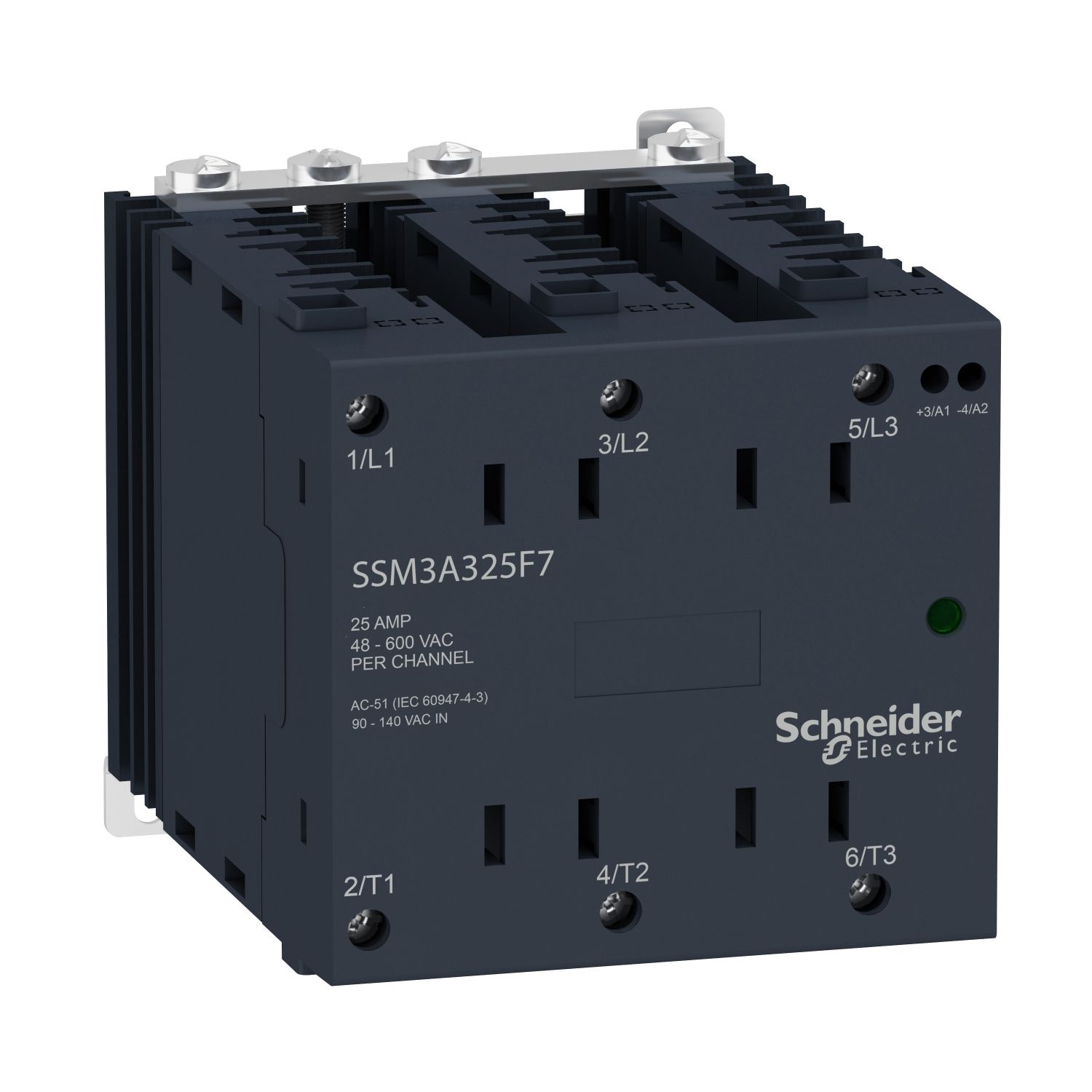

pre Assembled, Harmony Solid State Relays, 25A, DIN rail mount, random switching, input 4...32V DC, output 48...600V AC

Old price: $372.90 INC GST
$354.26 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
pre Assembled, Harmony Solid State Relays, 25A, DIN rail mount, random switching, input 4...32V DC, output 48...600V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026

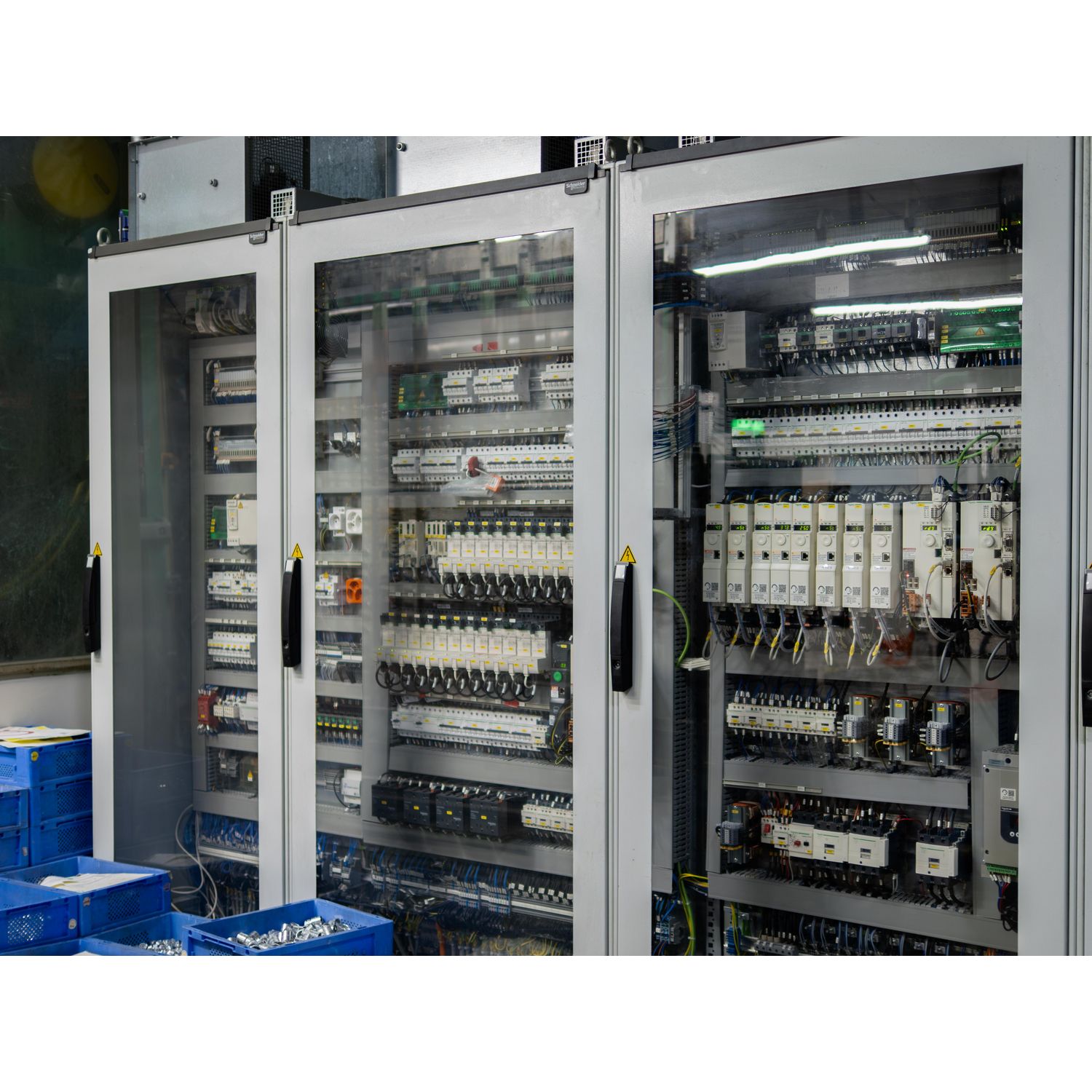

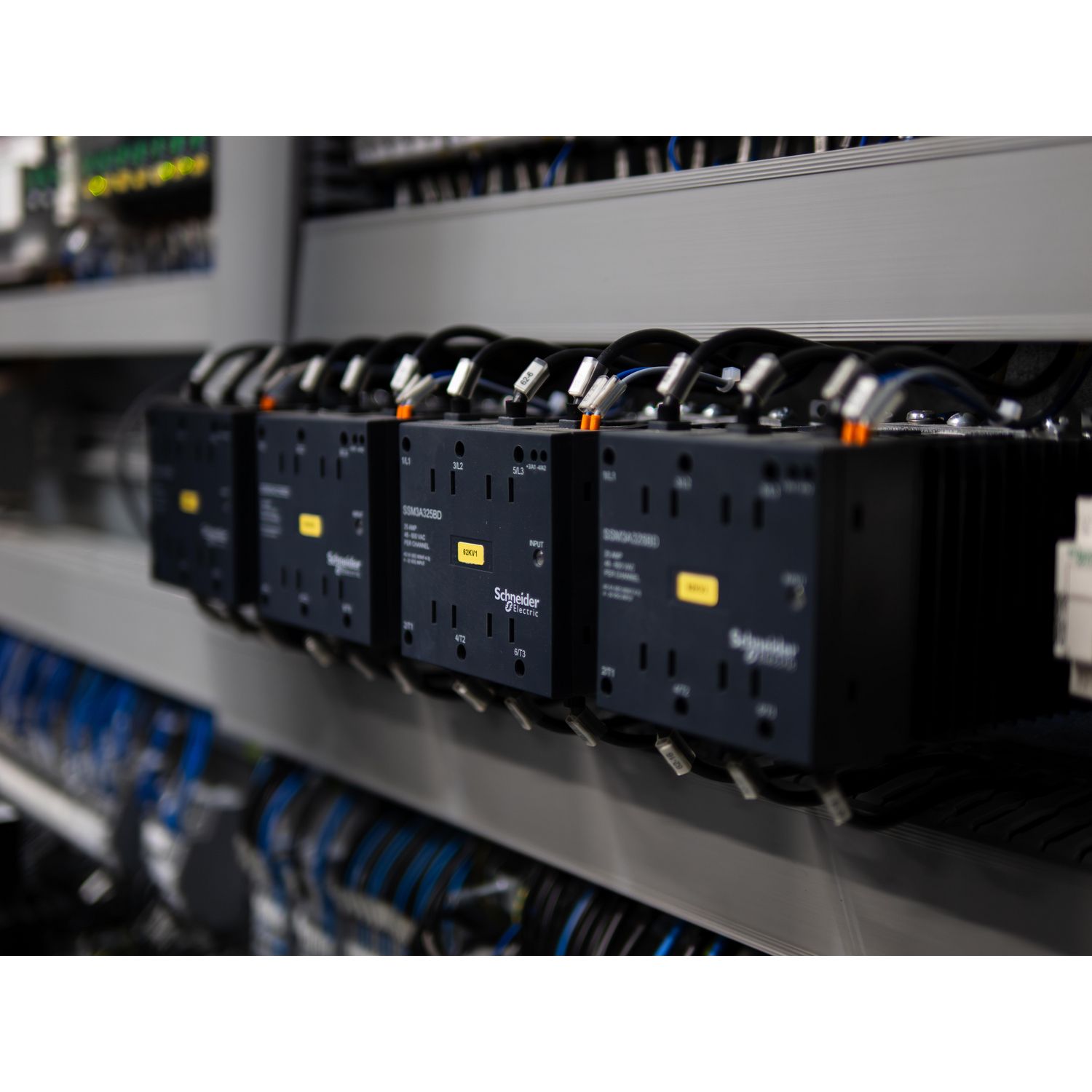

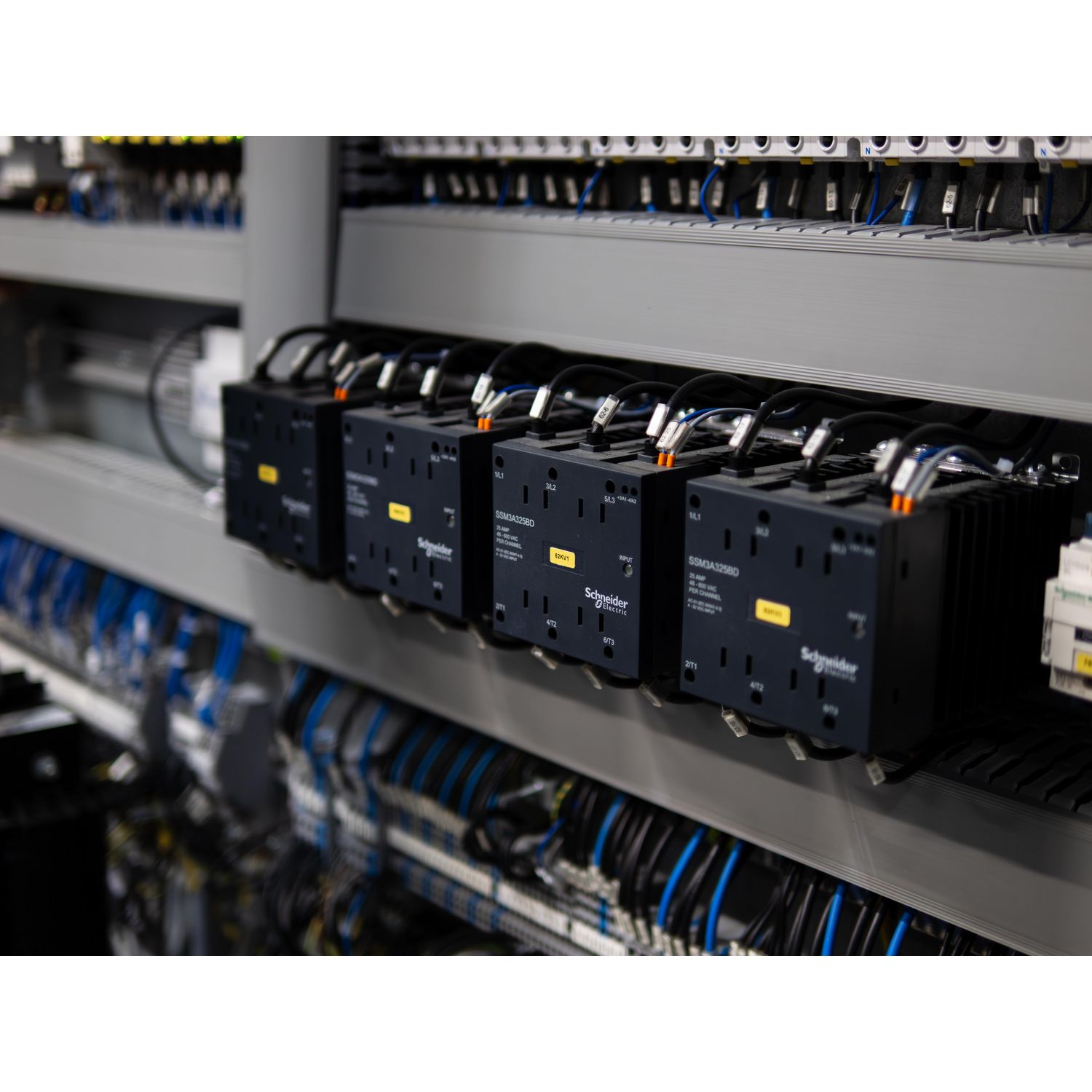

Image of product in real life situation
Environmental Disclosure
Image of product in real life situation
Catalog
Image of product in real life situation
Circularity Profile
Image of product in real life situation
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name SSM3
[Uc] control circuit voltage 4...32 V
Number of channels 3
Network number of phases 3 phases
Product or component type solid state relay up to 30 A
Output switching mode random voltage switching
Range of product Harmony Solid State Relays
Connections - terminals screw connectors
Complementary
Overvoltage category III
Input current limits 22-28 mA
Switching voltage 1 V DC turn-off, 4 V DC turn-on
[In] rated current 25 A
Capacitance unbalance 8 pF for input/output
Solid state output type random voltage switching
Local signalling LED (green) for input status
DV/dt 500 V/µs off-state at maximum voltage
Absolute maximum voltage 1100 V
Device presentation complete product
Maximum leakage current 0.25 mA off-state
Net weight 0.74 kg
Load current 0.1-25 A
Response time 0.02 ms (turn-on), 0.5 cycle (turn-off)
Surge current 300 A for 16.6 ms at 60 Hz, 286 A for 20 ms at 50 Hz
Connections - terminals screw terminals: 1.3...5.3 mm², (AWG 16...AWG 10) for output, screw terminals: 0.2...1.3 mm², (AWG 24...AWG 16) for input
Maximum voltage drop <1.35 V on-state
Maximum I²t for fusing 374 A².s for 8.3 ms at 60 Hz, 410 A².s for 10 ms at 50 Hz
Mounting support symmetrical DIN rail
Insulation resistance 1000 MOhm
Tightening torque 1.36...1.7 N.m for output, 0.6...0.7 N.m for input
Motor power hp 3 hp 40 °C 480 V AC, 2 hp 40 °C 380 V AC, 1 hp 40 °C 240 V AC
Output voltage 48...600 V AC
[Uc] control circuit voltage 4...32 V DC
Cos phi 0.5-0.5 (with maximum load)
Environment
Ambient air temperature for storage -40-100 °C
IP degree of protection IP20
Marking UL, CE, EAC, CSA
Dielectric strength 4 kV AC for input or output to case, 4 kV AC for input/output
Pollution degree 2
Standards CSA C22.2 No 14, IEC 60950-1, UL 508
Ambient air temperature for operation -20-80 °C
Product certifications CSA, EAC, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.0 cm
Package 1 Width 11.0 cm
Package 1 Length 11.0 cm
Package 1 Weight 803.0 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.362 kg
