SKU:

SSM1A112BD

Harmony Solid State Relays, Solid state modular relay, 12A, DIN rail mount, zero voltage switching, input 4...32V DC, output 24...280V AC

Old price: $112.64 INC GST
$107.01 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Harmony Solid State Relays, Solid state modular relay, 12A, DIN rail mount, zero voltage switching, input 4...32V DC, output 24...280V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Circularity Profile
Catalog
Environmental Disclosure

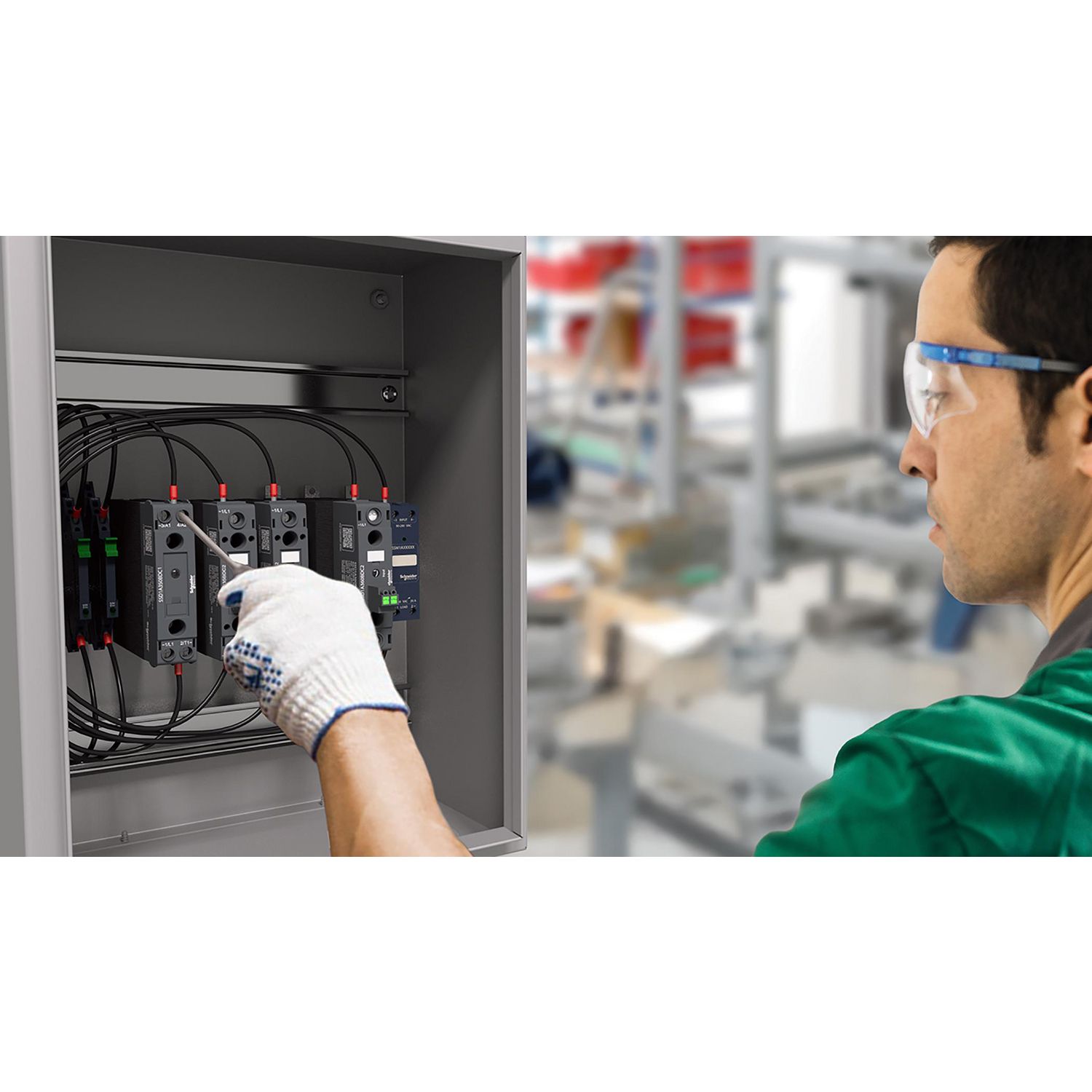

Image of product in real life situation
CAD
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet

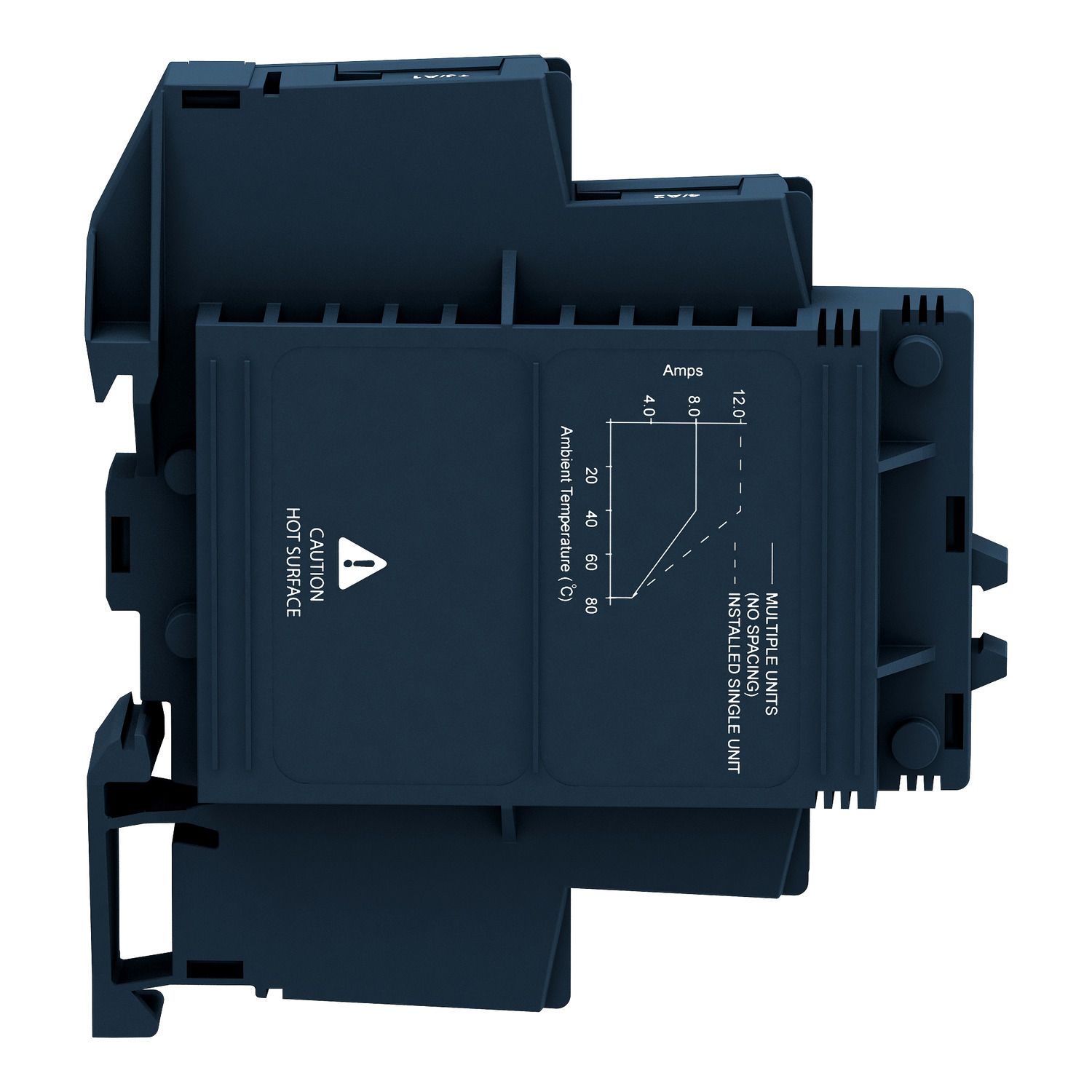

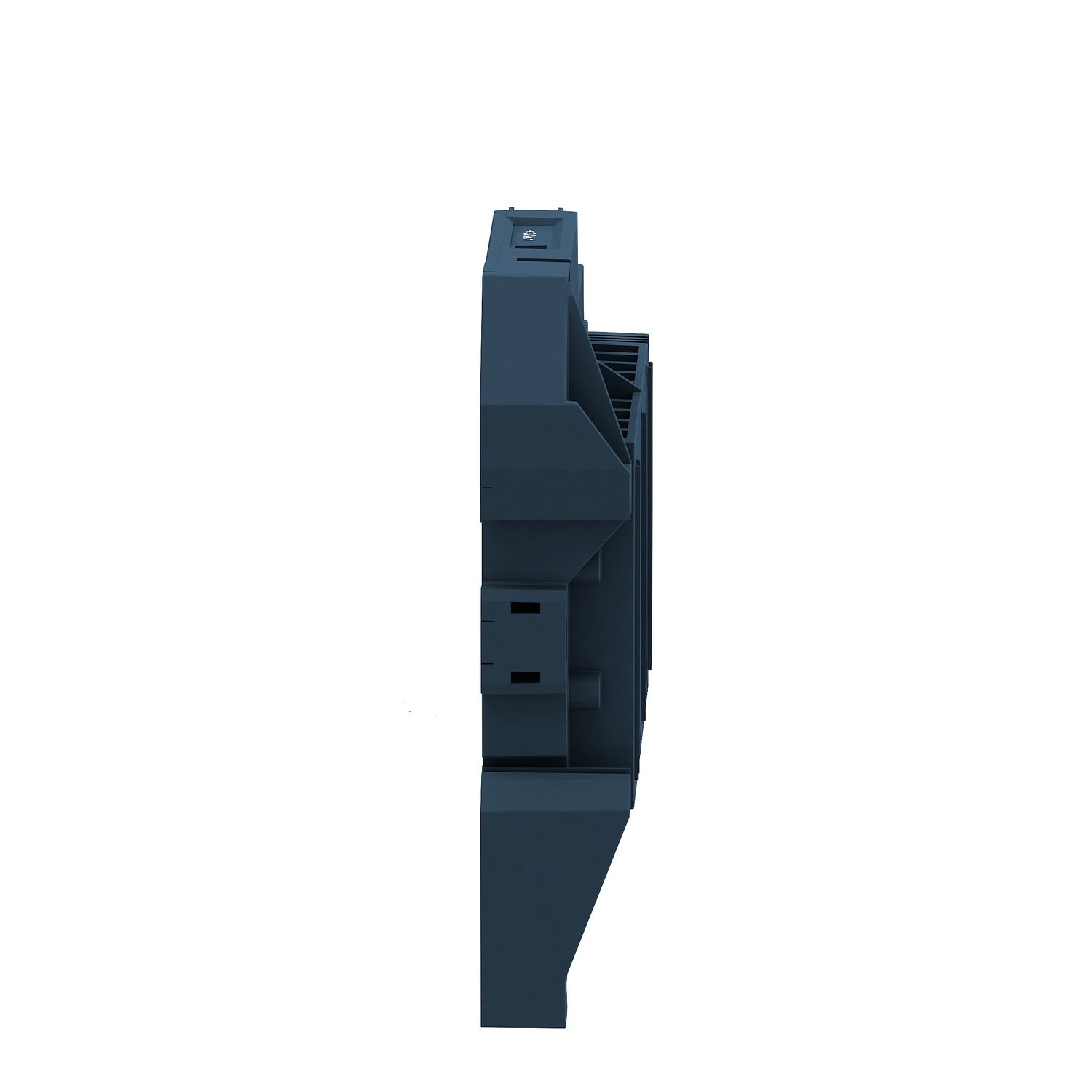

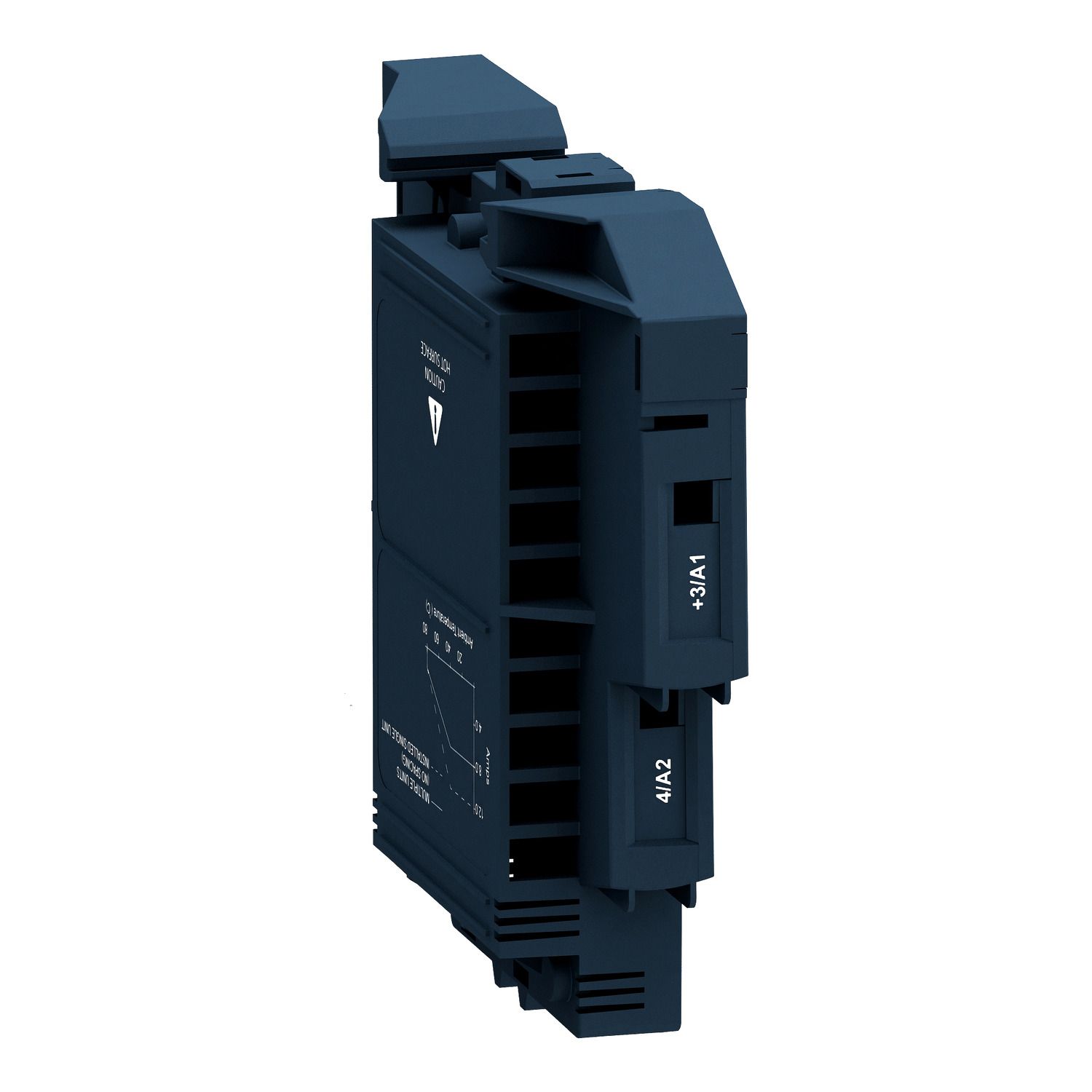

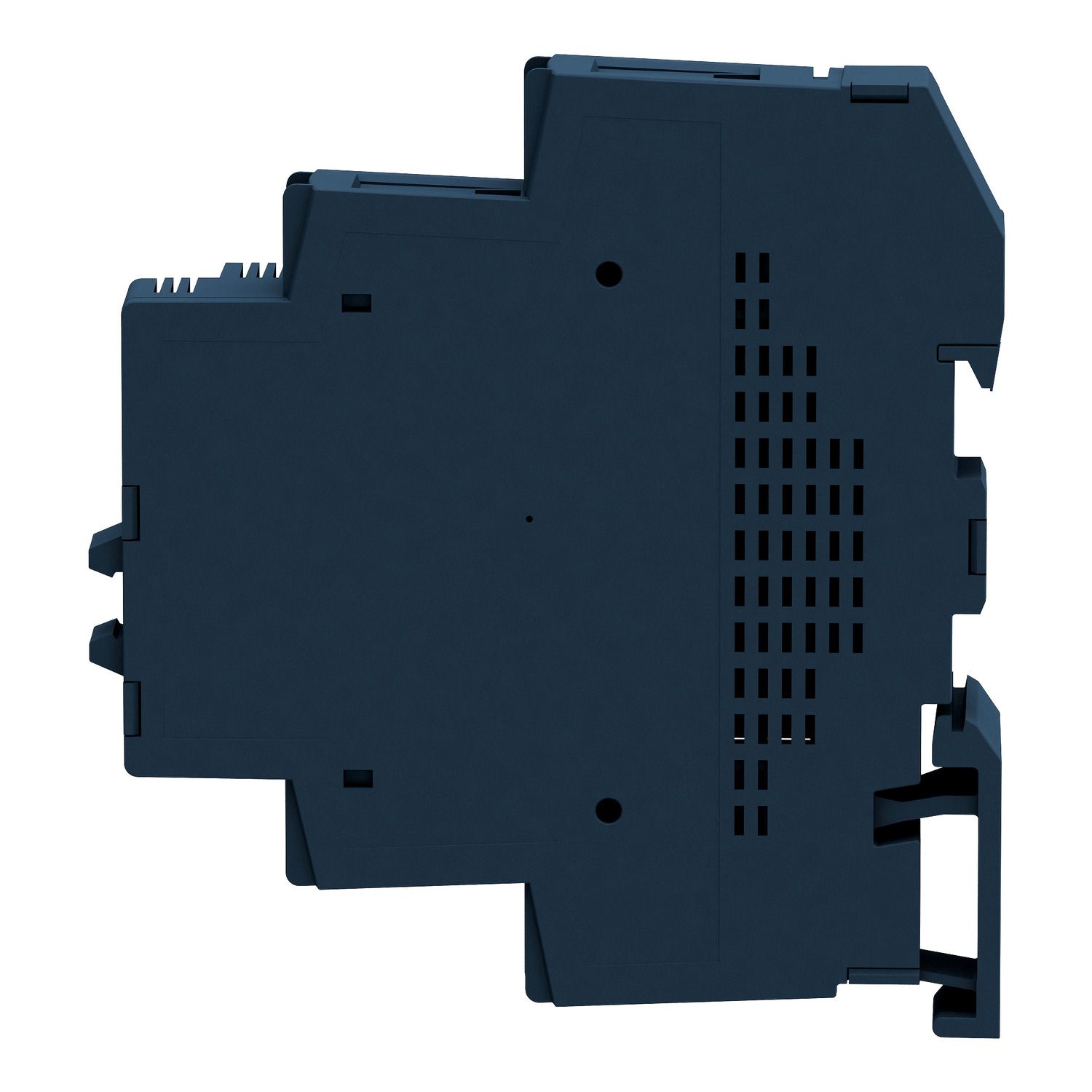

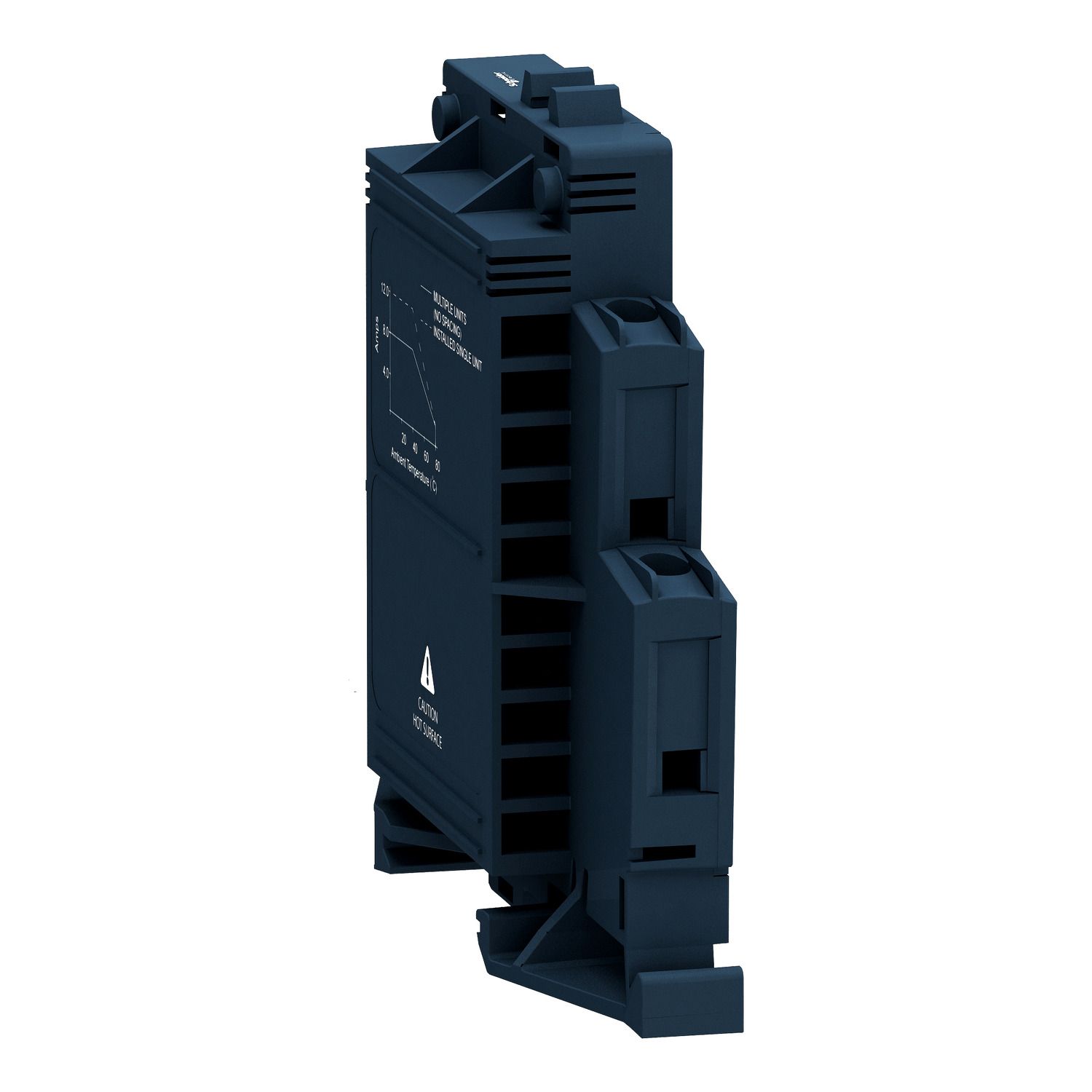

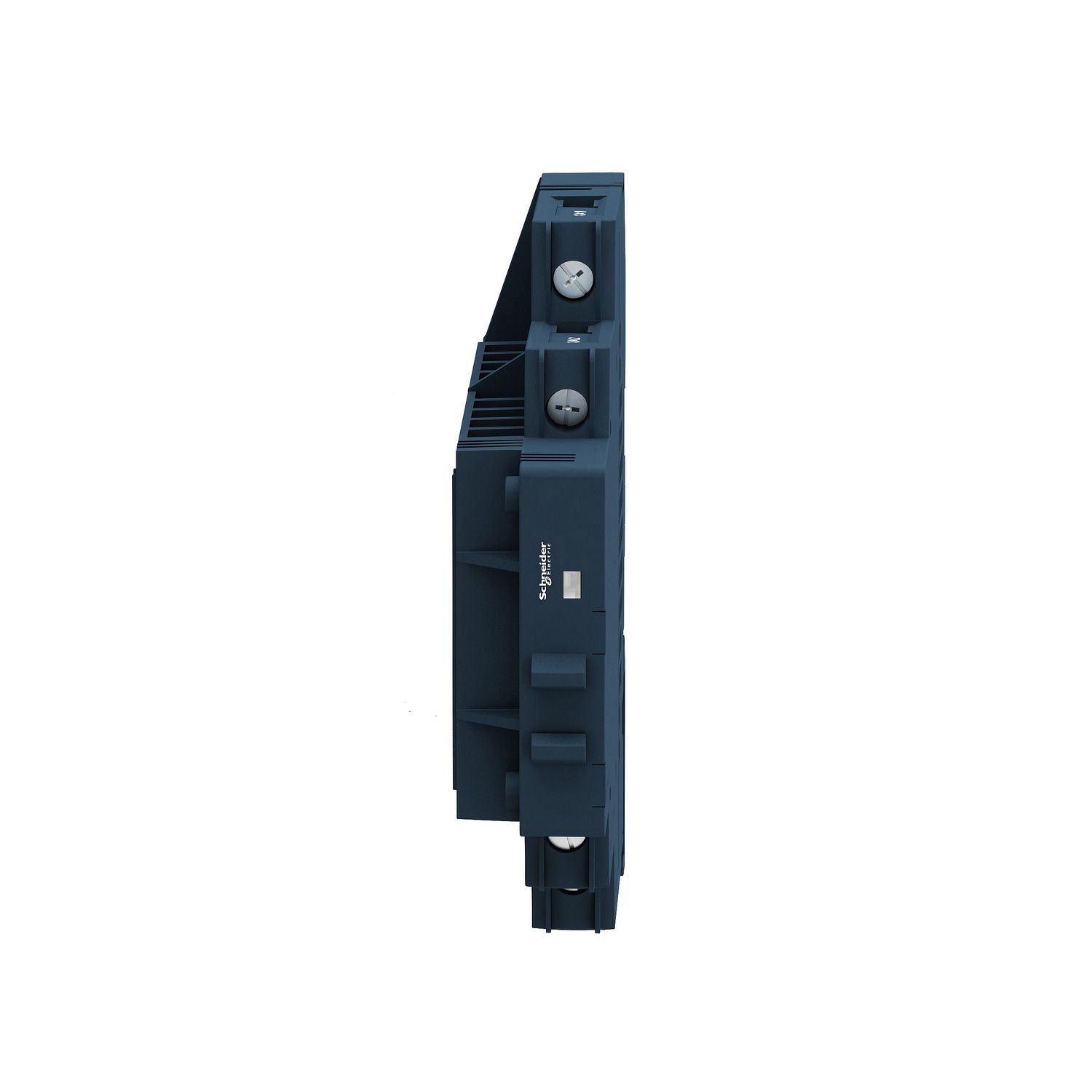

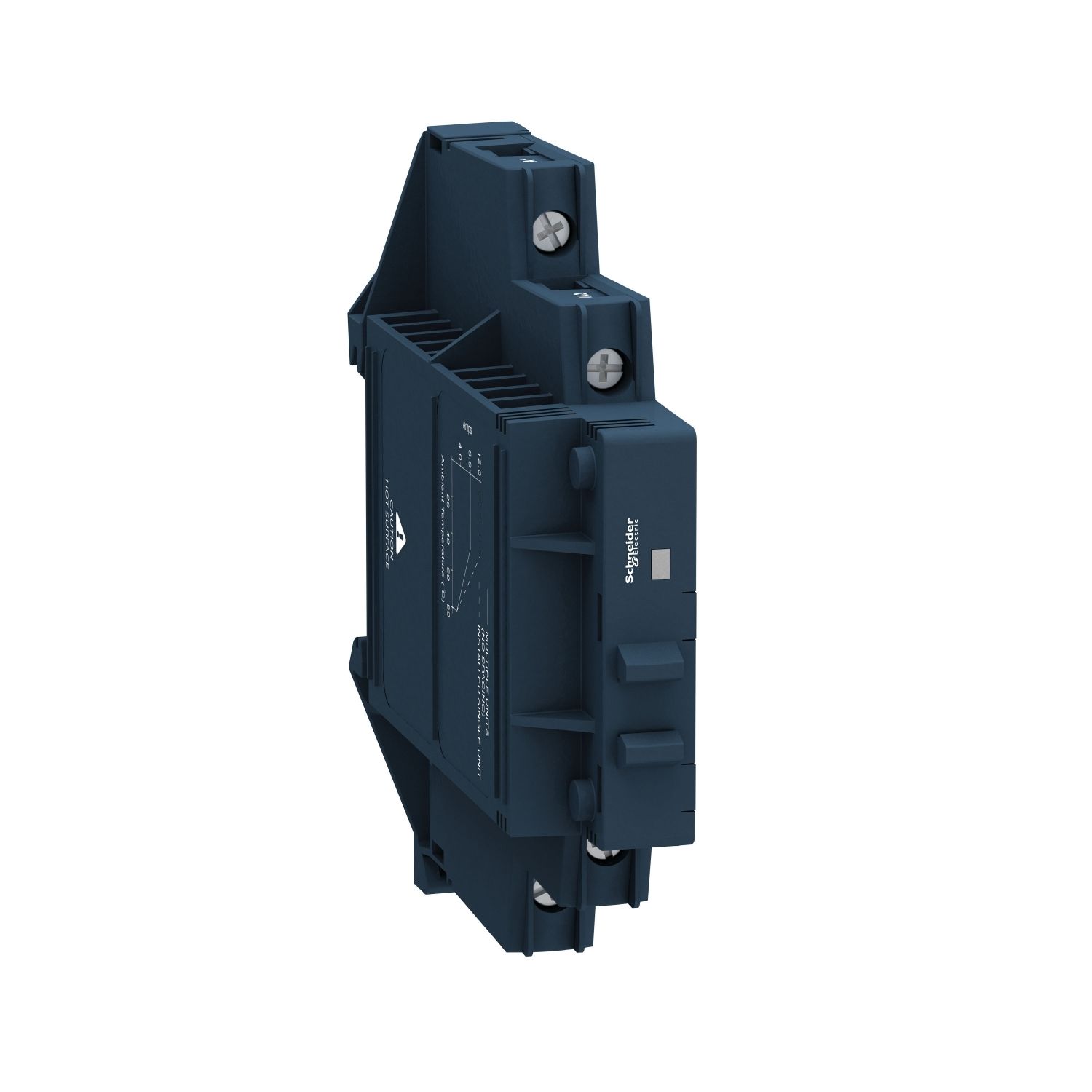

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSM
[Uc] control circuit voltage 4...32 V
Number of channels 1
Range of product Harmony Solid State Relays
Network number of phases 1 phase
Product or component type solid state relay up to 20 A
Output switching mode zero voltage switching
Connections - terminals screw connectors
Complementary
Input current limits 9-11 mA
Maximum switching voltage 1 V DC turn-off
DV/dt 500 V/µs off-state at maximum voltage
Device presentation complete product
Minimum switching voltage 4 V DC turn-on
Connections - terminals screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output, screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input
Maximum voltage drop <1.3 V on-state
Insulation resistance 1000 MOhm at 500 V DC
Motor power hp 0.33 hp 40 °C 240 V AC
Output voltage 24...280 V AC
Height 90.3 mm
Cos phi 0.5-0.5 (with maximum load)
Depth 83.7 mm
Overvoltage category III
Width 18 mm
[In] rated current 12 A
Capacitance unbalance 10 pF for input/output
Solid state output type SCR output, zero voltage switching
Local signalling LED (green) for input status
Absolute maximum voltage 600 V
Maximum leakage current 0.1 mA off-state
Net weight 0.09 kg
Load current 0.15-12 A
Response time 0.5 cycle (turn-off), 0.5 cycle (turn-on)
Surge current 750 A for 20 ms, 715 A for 16.6 ms
Maximum I²t for fusing 2330 A².s for 8.33 ms at 60 Hz, 2560 A².s for 10 ms at 50 Hz
Mounting support symmetrical DIN rail
Tightening torque 0.5...0.8 N.m for output, 0.5...0.8 N.m for input
[Uc] control circuit voltage 4...32 V DC
Environment
Ambient air temperature for storage -30-100 °C
IP degree of protection IP20
Marking CE
Pollution degree 2
Ambient air temperature for operation -30-80 °C
Flame retardance V0 conforming to UL 94
Dielectric strength 4 kV AC for input or output to case, 4 kV AC for input/output
Standards IEC 62314, IEC 61000, IEC 60950-1
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 9.000 cm
Package 1 Length 9.500 cm
Package 1 Weight 90.000 g
Unit Type of Package 2 2
Number of Units in Package 2 72
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.989 kg
