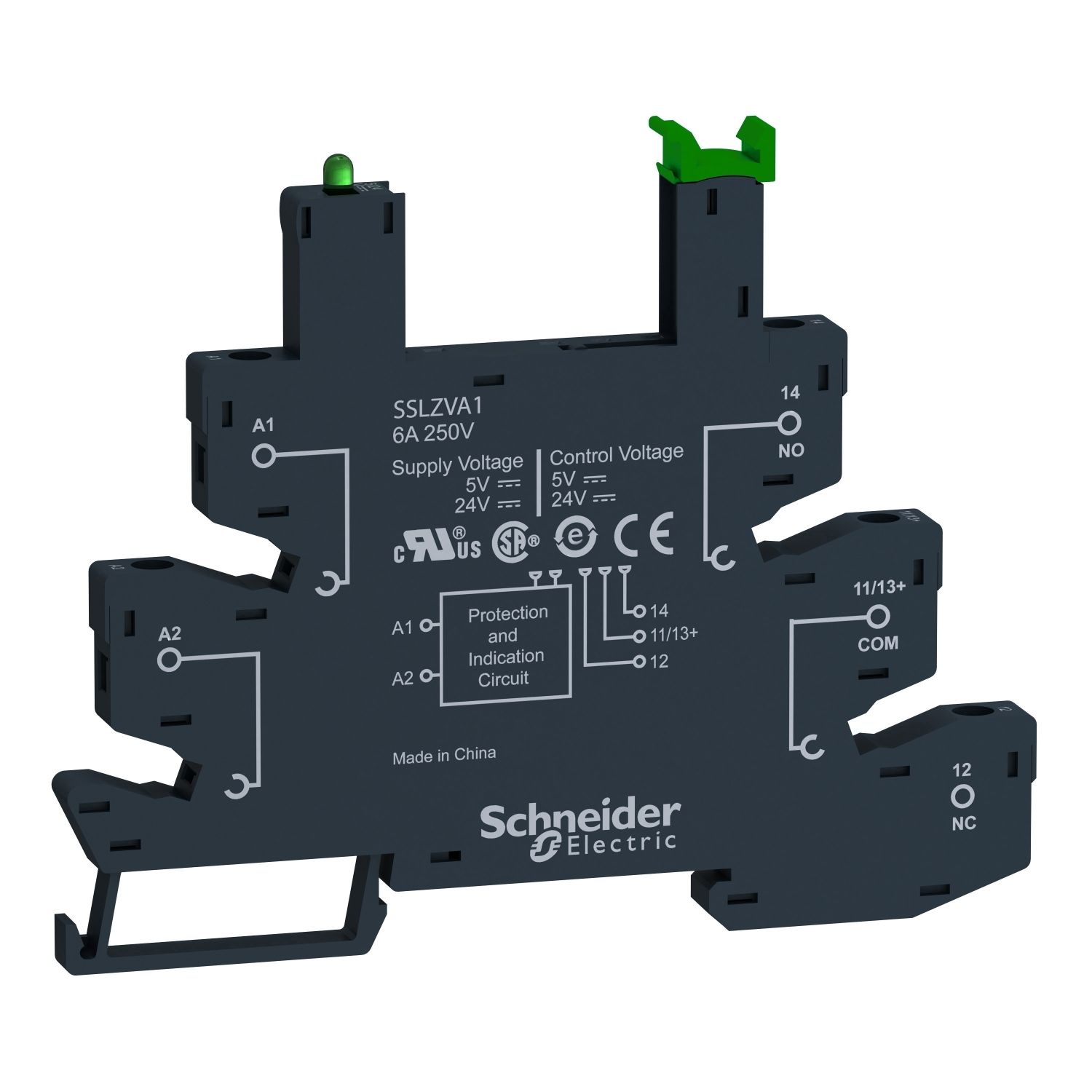

Picture of Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, spring terminals, 5 24V DC
Picture of Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, spring terminals, 5 24V DC
Picture of Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, spring terminals, 5 24V DC
SKU:

SSLZRA1

Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, spring terminals, 5 24V DC

Old price: $19.69 INC GST
$18.71 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, spring terminals, 5 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025

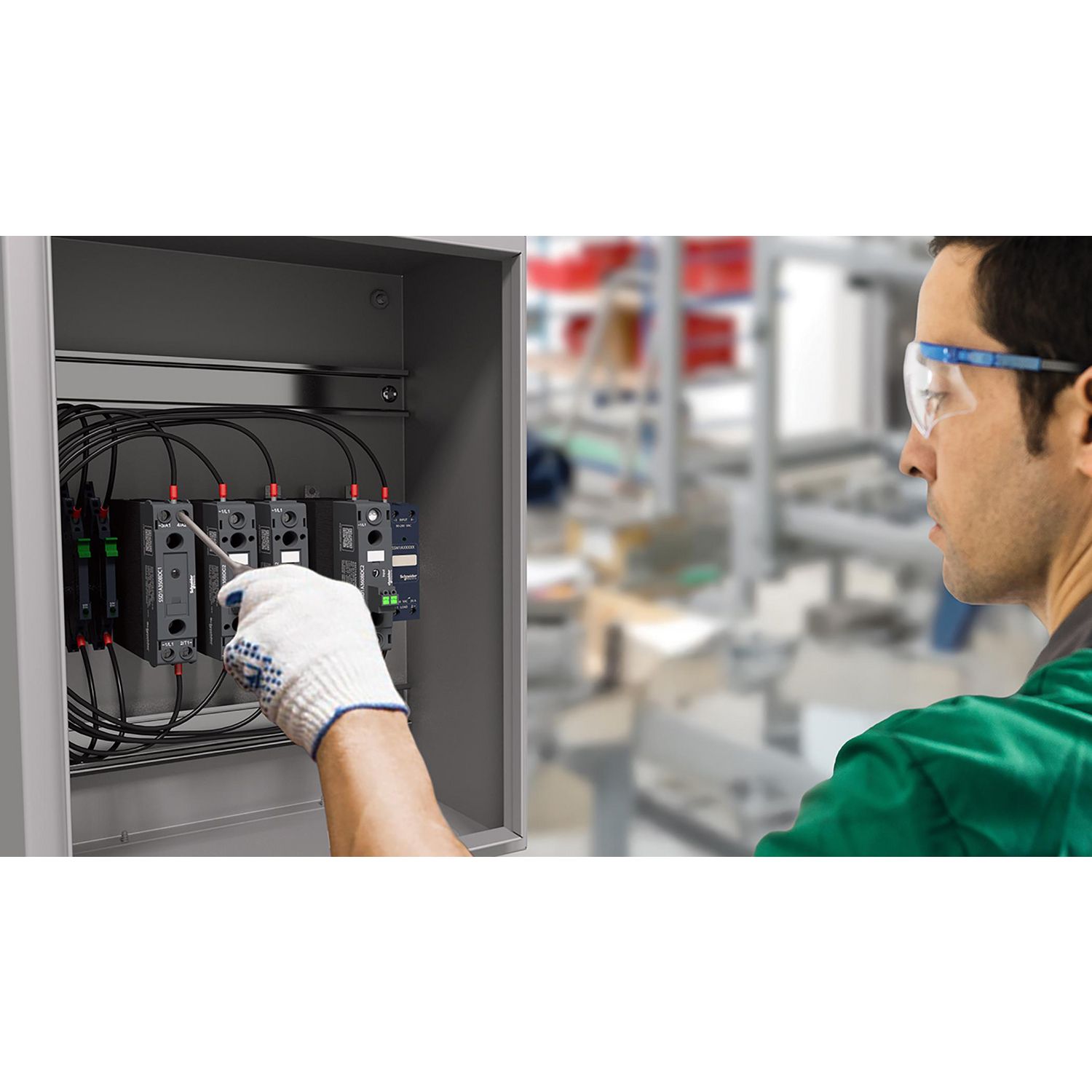

Image of product in real life situation
Circularity Profile
Declaration of conformity
Catalog
CAD
Product Page Link
Product Data Sheet
"This Harmony SSL socket for solid state slim interfacing relay has spring terminals and a rated voltage of 5V DC." "It also offers clear circuit labelling on the sides to facilitate installation and maintenance." "It features a visual indicator LED for a simpler troubleshooting and commissioning." "Its clear schematic on the side of the socket enables easier wiring and maintenance." 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSLZ
[Uc] control circuit voltage 24 V, 5 V
Product compatibility solid state relay SSL with NO contact at 5 V DC, solid state relay SSL with NO contact at 24 V DC
Range of product Harmony Solid State Relays
[Ith] conventional free air thermal current 6 A
[Ue] rated operational voltage < 250 V DC
Switching voltage 24 V DC, 5 V DC
[In] rated current 6 A
Product or component type socket for SSL1
Complementary
Group of product SSL_NO_SEP_FLAT_SPRING_5-24
Compatibility code SSLZ
Sale per indivisible quantity 10
Fixing mode clip-on (35 mm DIN rail)
Contact terminal arrangement separate
Shape of pin flat
Pollution degree 3
Clamping force 10-40 N
[Uimp] rated impulse withstand voltage 3.6 kV
Height 101 mm
Depth 78.6 mm
Overvoltage category III
Width 6.2 mm
Local signalling LED (green) for input status
Connections - terminals spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end, spring terminals
Net weight 0.0285 kg
Environment
IP degree of protection IP20
Ambient air temperature for storage -40-85 °C
Marking CE
Ambient air temperature for operation -40-70 °C
Flame retardance V0 conforming to UL 94
Standards IEC 61984
Product certifications CSA C22-2 No 14, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.600 cm
Package 1 Width 8.000 cm
Package 1 Length 10.500 cm
Package 1 Weight 23.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 8.500 cm
Package 2 Width 7.100 cm
Package 2 Length 10.700 cm
Package 2 Weight 252.000 g
Unit Type of Package 3 3
Number of Units in Package 3 300
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 8.280 kg
