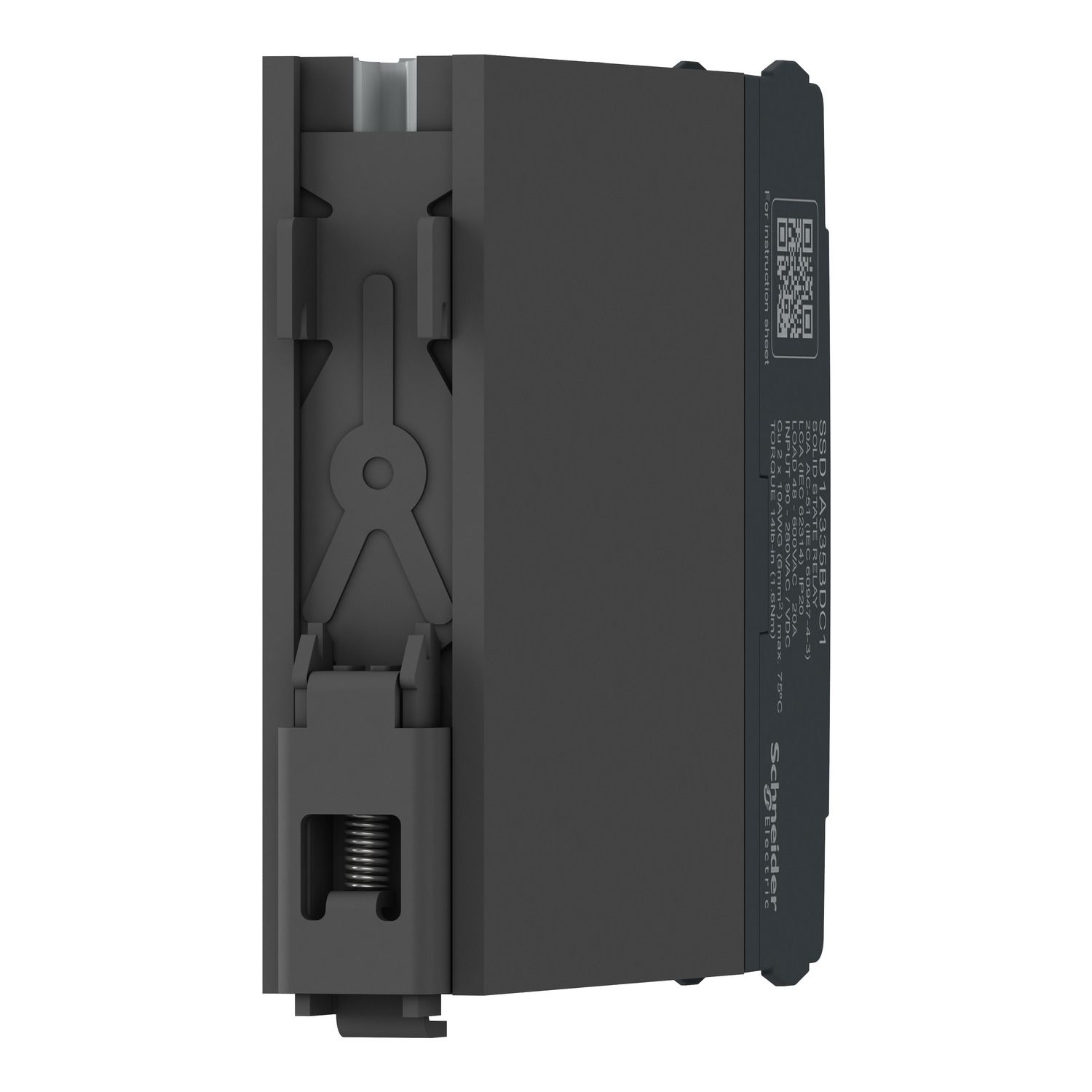

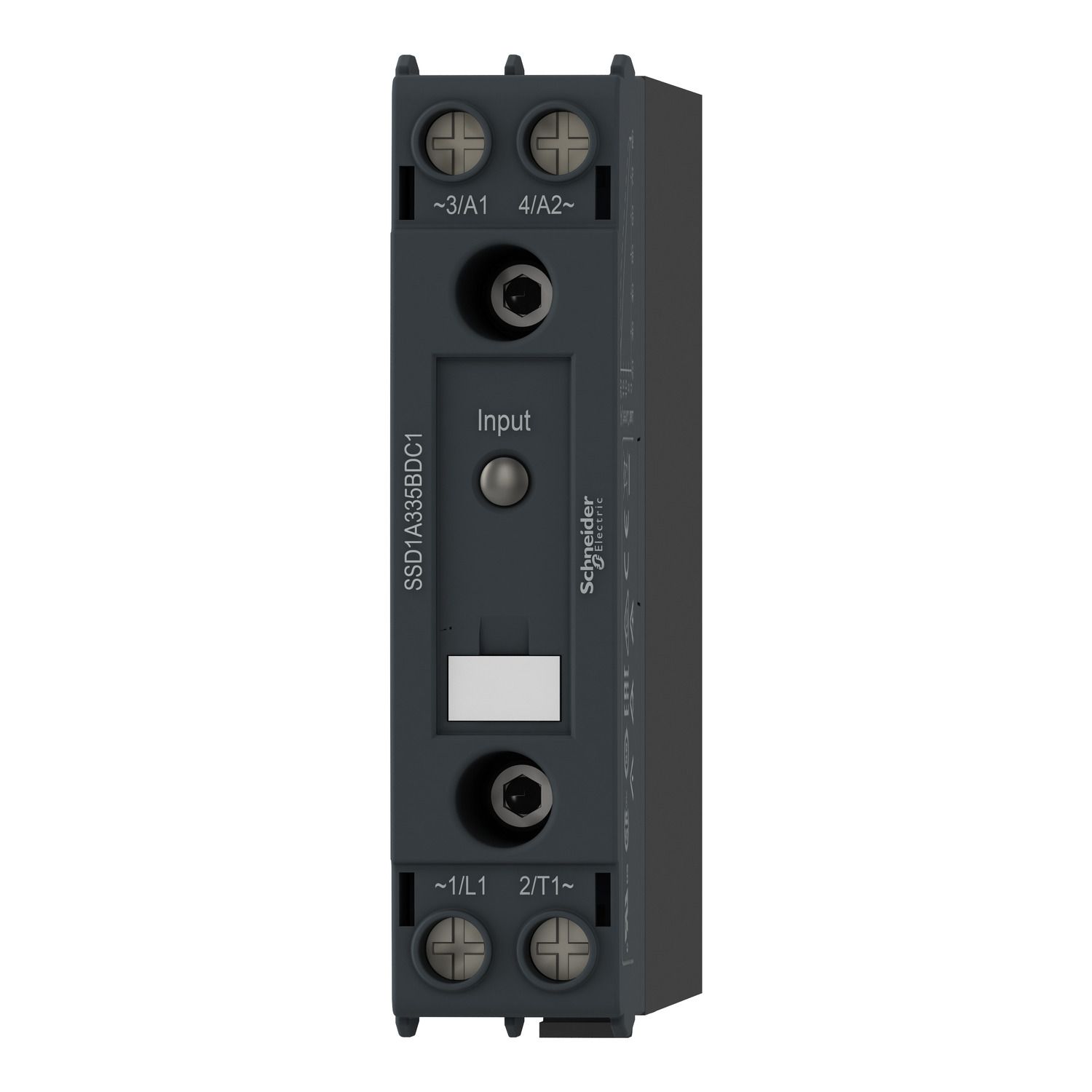

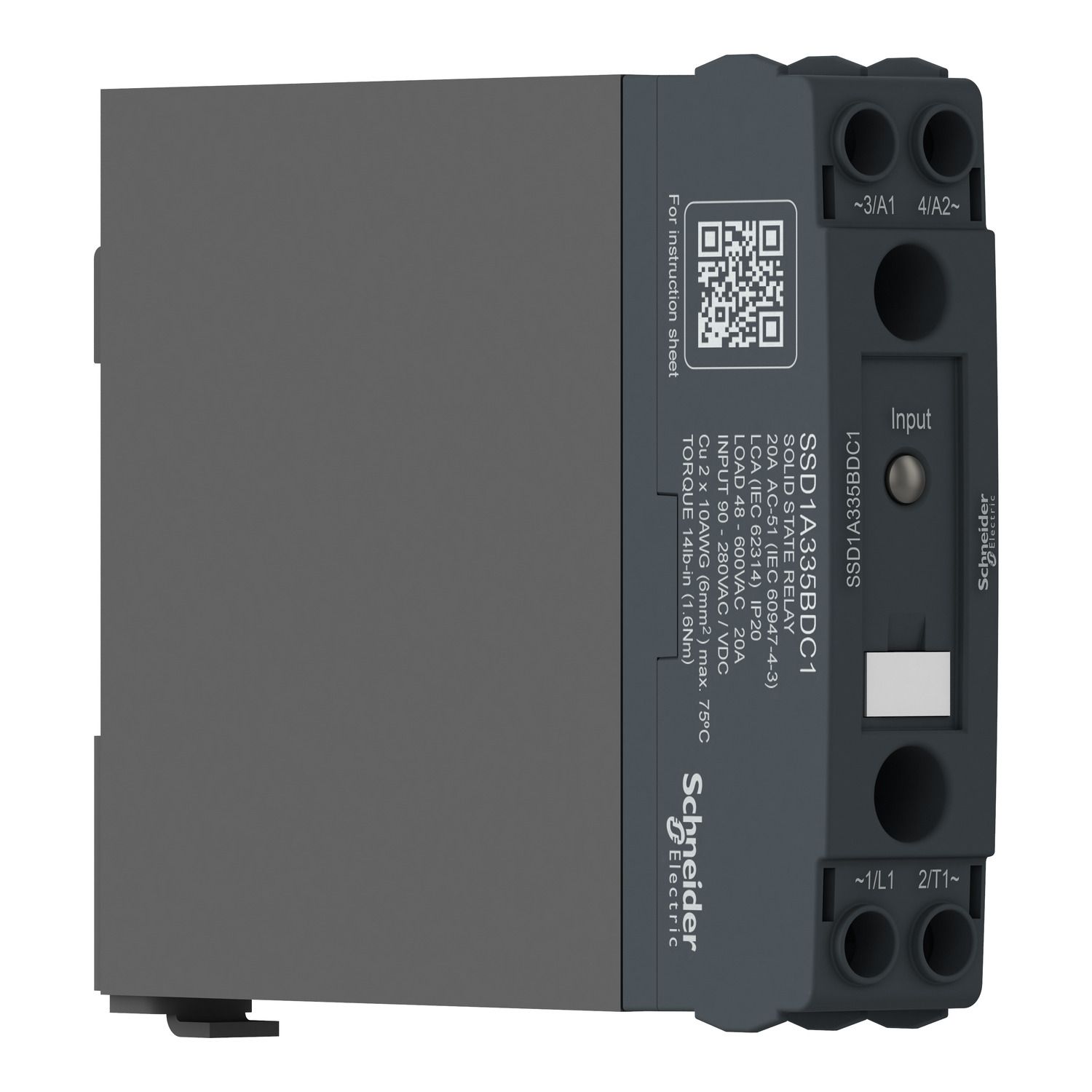

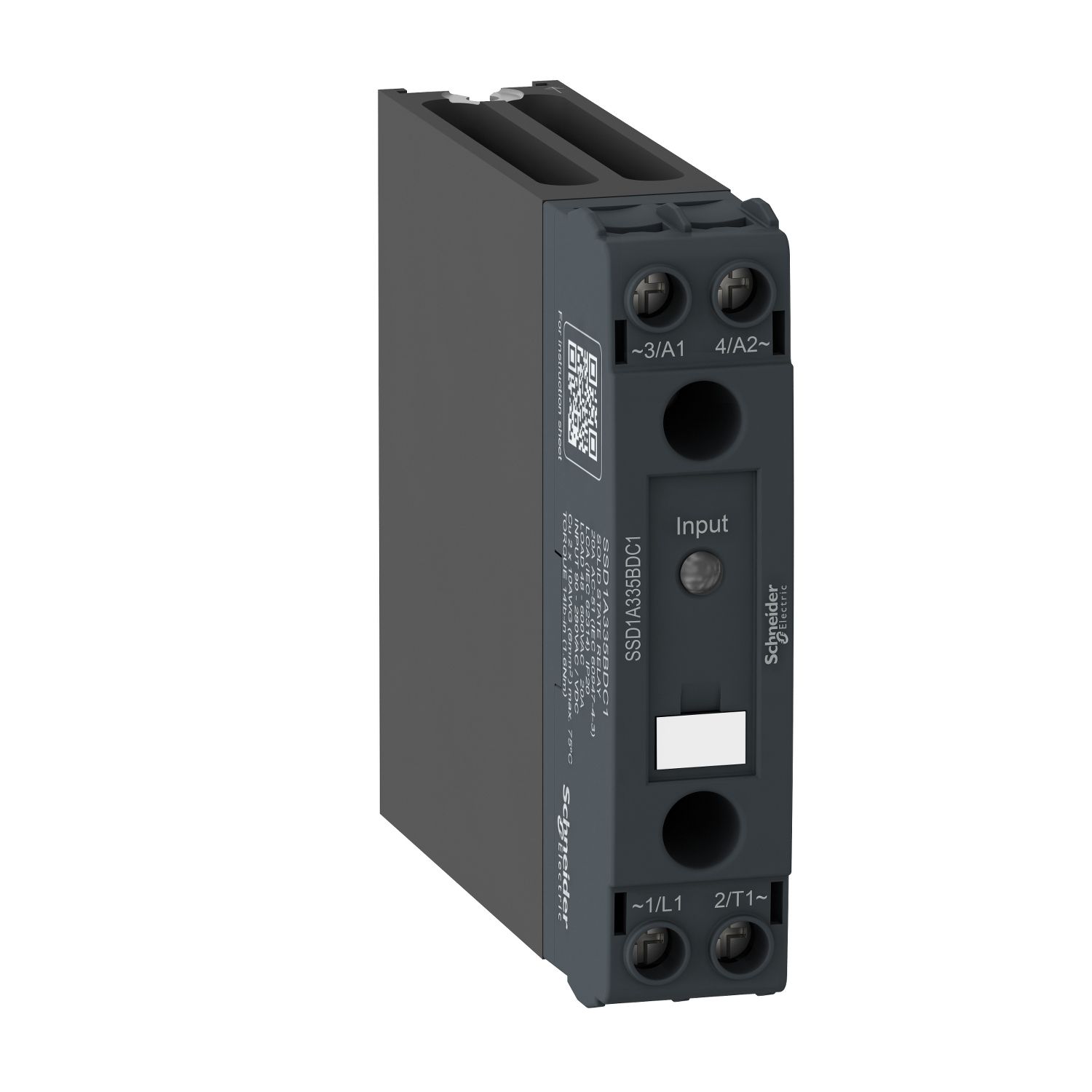

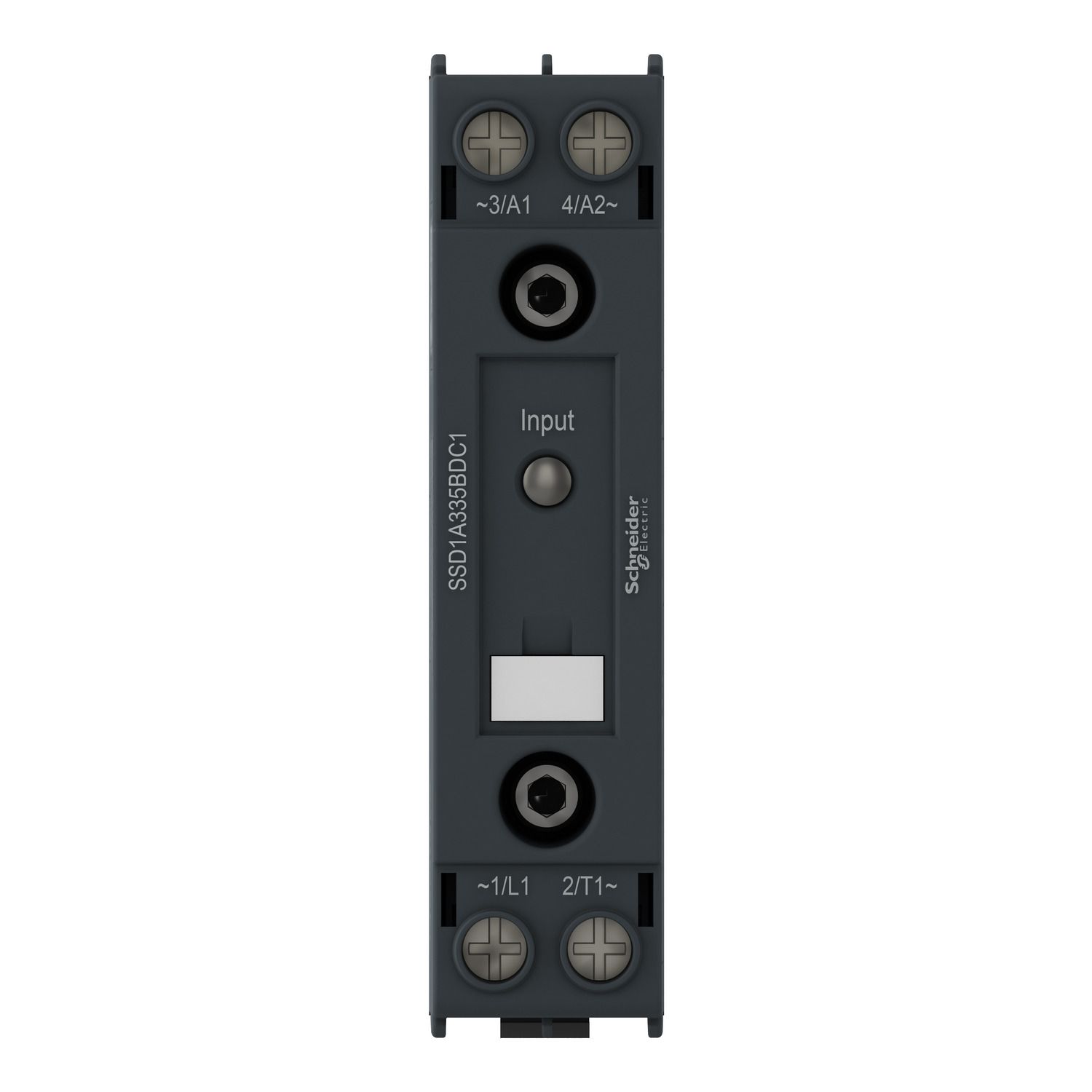

Picture of DIN rail mount relay, Harmony Solid State Relays, 30A, DC switching, input 4 to 32V DC, output 1 to 150V DC
Picture of DIN rail mount relay, Harmony Solid State Relays, 30A, DC switching, input 4 to 32V DC, output 1 to 150V DC
Picture of DIN rail mount relay, Harmony Solid State Relays, 30A, DC switching, input 4 to 32V DC, output 1 to 150V DC
Picture of DIN rail mount relay, Harmony Solid State Relays, 30A, DC switching, input 4 to 32V DC, output 1 to 150V DC

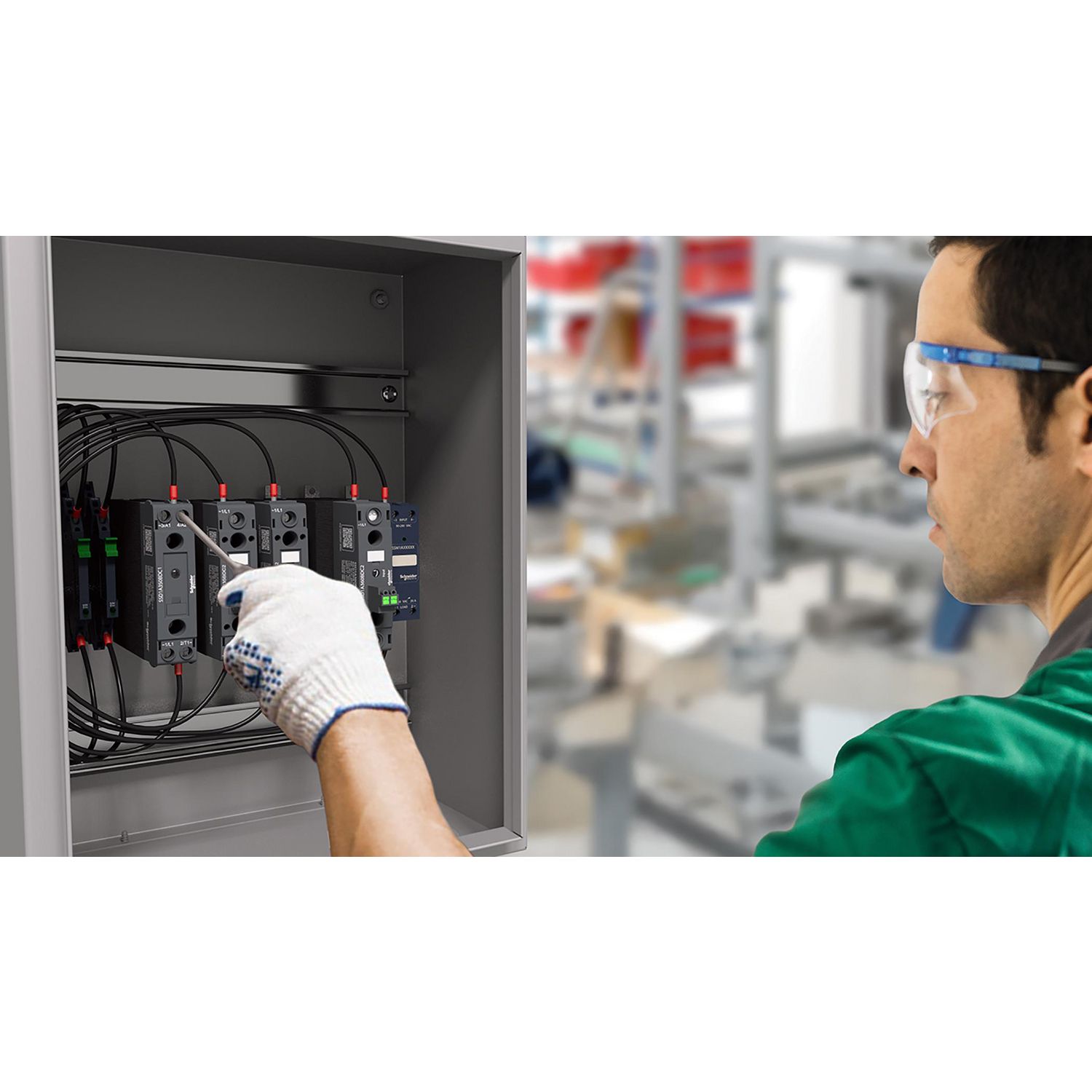

Picture of DIN rail mount relay, Harmony Solid State Relays, 30A, DC switching, input 4 to 32V DC, output 1 to 150V DC
Picture of DIN rail mount relay, Harmony Solid State Relays, 30A, DC switching, input 4 to 32V DC, output 1 to 150V DC

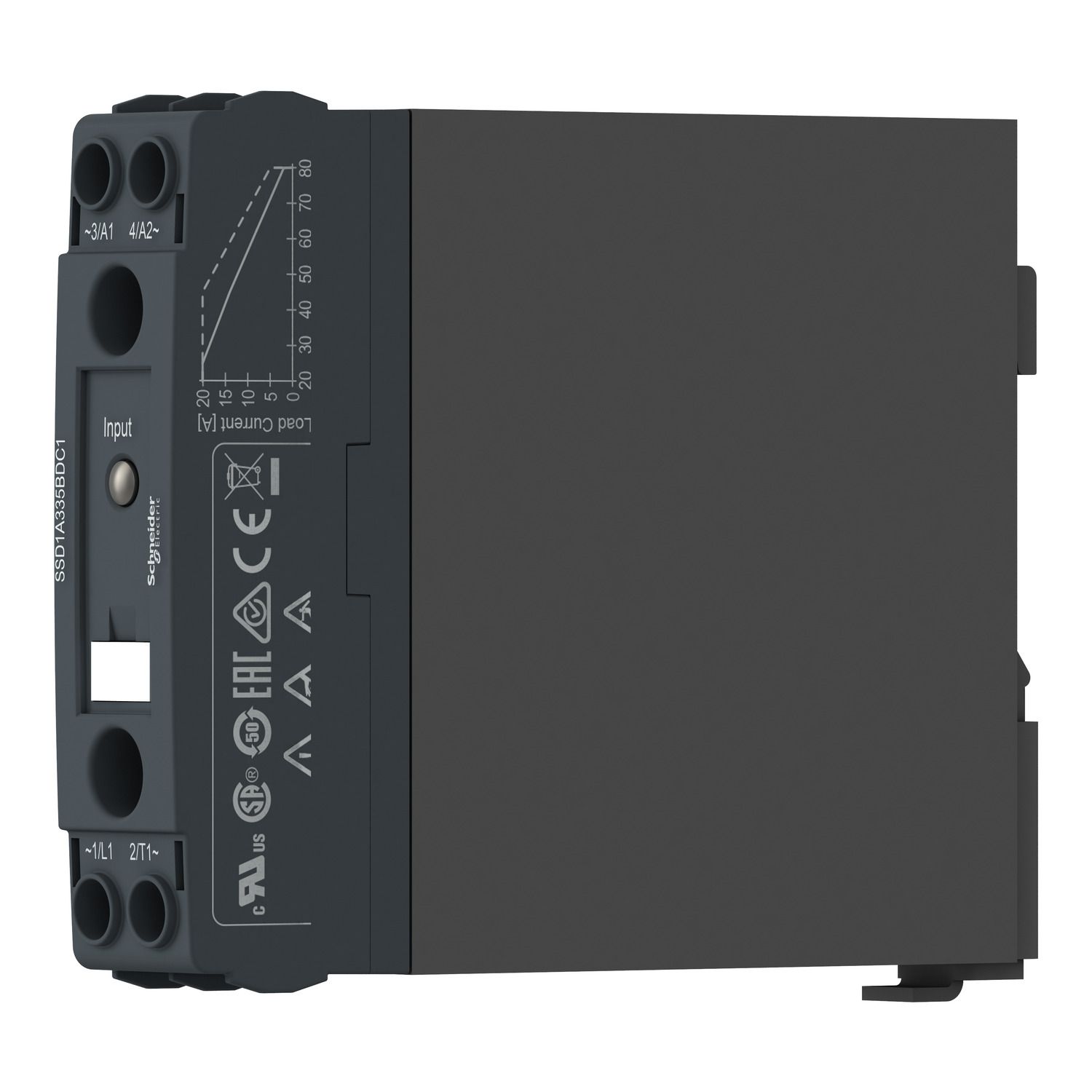

Picture of DIN rail mount relay, Harmony Solid State Relays, 30A, DC switching, input 4 to 32V DC, output 1 to 150V DC
SKU:

SSD1D530BDC1

DIN rail mount relay, Harmony Solid State Relays, 30A, DC switching, input 4 to 32V DC, output 1 to 150V DC

$250.44 EXCL GST
Available for Shipping : 16-Feb-2025
Product Selector
DIN rail mount relay, Harmony Solid State Relays, 30A, DC switching, input 4 to 32V DC, output 1 to 150V DC
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Declaration of conformity
End of life manual
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 30A power rated relay with relay type configuration and DC switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 1Vdc to 150Vdc. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.280Kg and its dimensions are, 22.5mm wide, 116.6mm deep, 93.2mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.

Products specifications

Attribute name Attribute value
Main
Device short name SSD1
[Uc] control circuit voltage 4...32 V
Product configuration type relay configuration
Number of channels 1
Range of product Harmony Solid State Relays
[In] rated current 30 A
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Network number of phases 1 phase
Product or component type solid state relay up to 30 A
Output switching mode DC switching
Connections - terminals screw connectors
Complementary
Rated duty uninterrupted
Inrush current 86 A for 10 ms
Input current limits 11-15 mA
Maximum switching voltage 1 V DC turn-off
Electromagnetic compatibility conducted emission environment B for DC input supply conforming to IEC 60947-4-3, radiated emission environment B for DC input supply conforming to IEC 60947-4-3, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria A input ports conforming to IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria A output ports conforming to IEC 61000-4-4, conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrostatic discharge 4 kV criteria A air discharge conforming to IEC 61000-4-2, electrostatic discharge 4 kV criteria A contact discharge conforming to IEC 61000-4-2
Device presentation complete product
Minimum switching voltage 4 V DC turn-on
Motor power kW 0.37 kW/0.5 hp at 120 V DC
Maximum voltage drop <0.535 V on-state
Insulation resistance 1000 MOhm at 500 V DC
Output voltage 1...150 V DC
Height 93.2 mm
Depth 116.5 mm
Overvoltage category III
Width 22.5 mm
Contact form Form 5 semiconductor output DOL contactor
Resistance 0.016 Ohm on-state
Solid state output type DC switching
Local signalling LED (green) for control voltage
Maximum leakage current 0.2 mA off-state
[Uimp] rated impulse withstand voltage 6 kV for input or output to case, 6 kV for input/output circuit
Net weight 0.298 kg
Load current 0.005-30 A
Response time 100 µs (turn-off), 75 µs (turn-on)
Dielectric strength 3.75 kV AC for input or output to case, 3.75 kV AC for input/output circuit
Tightening torque 13...15 lb.in for load output, 1.5...1.7 N.m for load output, 13...15 lb.in for control input, 1.5...1.7 N.m for control input
Connections - terminals screw terminals, clamping connection capacity:1...6 mm², AWG 18...AWG 10 for output, screw terminals, clamping connection capacity:1...4 mm², AWG 18...AWG 12 for input
[Uc] control circuit voltage 4...32 V DC
Coordination type type 2, type 1
Environment
Ambient air temperature for storage -40-100 °C
IP degree of protection IP20
Pollution degree 2
Standards UL 508, CSA C22.2 No 14-13, IEC 61373:class B: category 1
Ambient air temperature for operation -40-80 °C
Flame retardance V-0 conforming to UL 94
Shock resistance 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27, 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27
Vibration resistance 0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.600 cm
Package 1 Width 9.700 cm
Package 1 Length 14.100 cm
Package 1 Weight 320.000 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.090 kg
