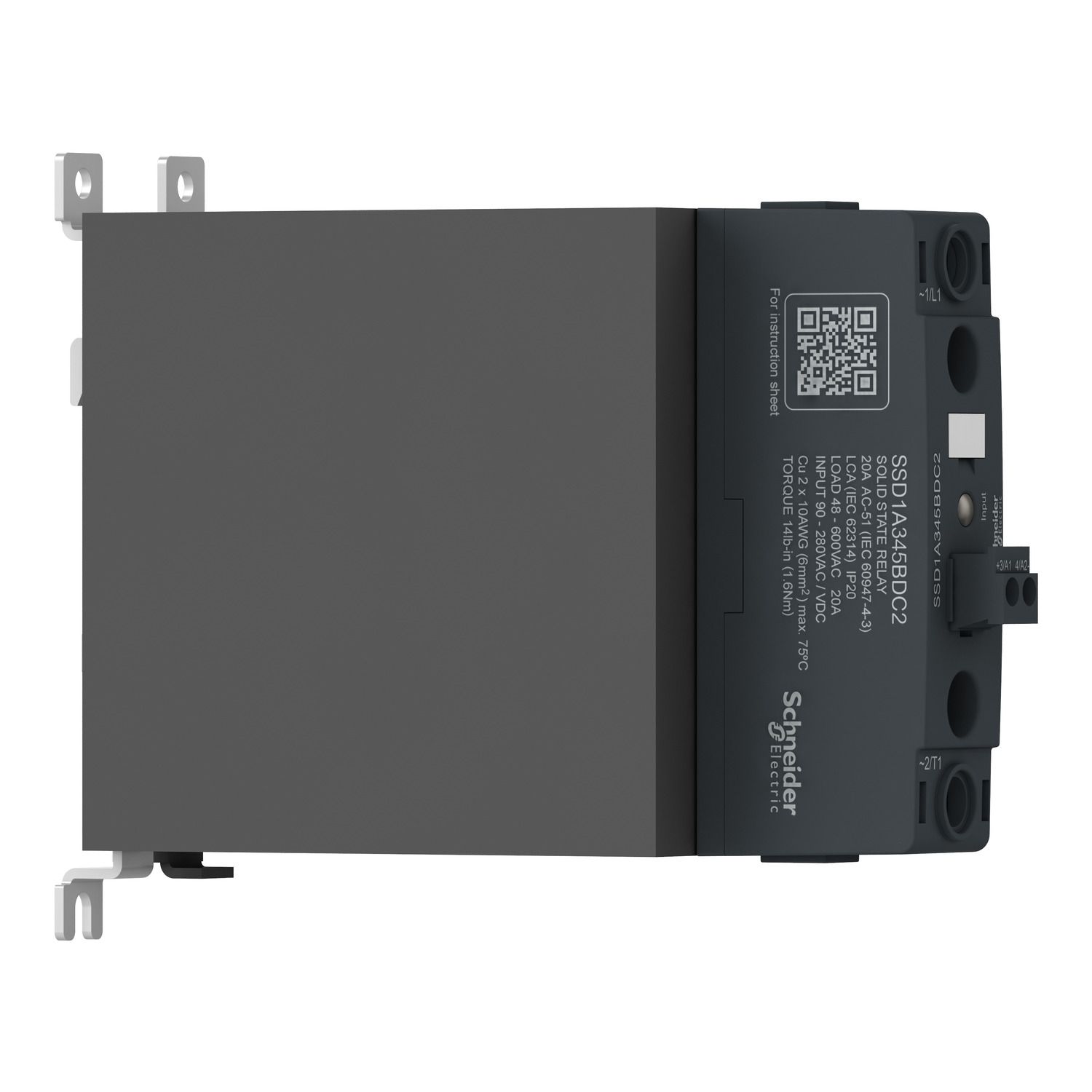

Picture of DIN rail mount, Harmony Solid State Relays, 60A, zero Voltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC

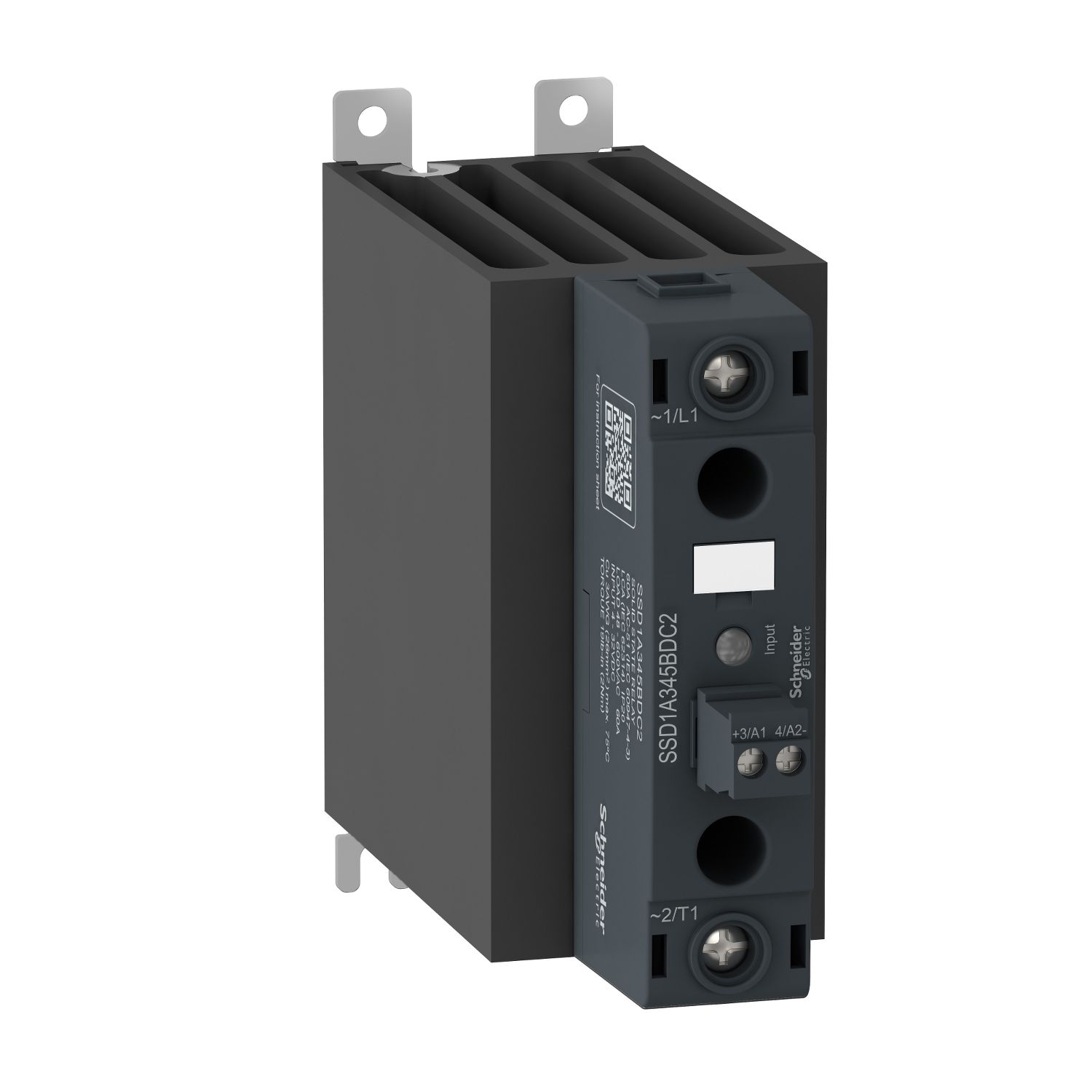

Picture of DIN rail mount, Harmony Solid State Relays, 60A, zero Voltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC

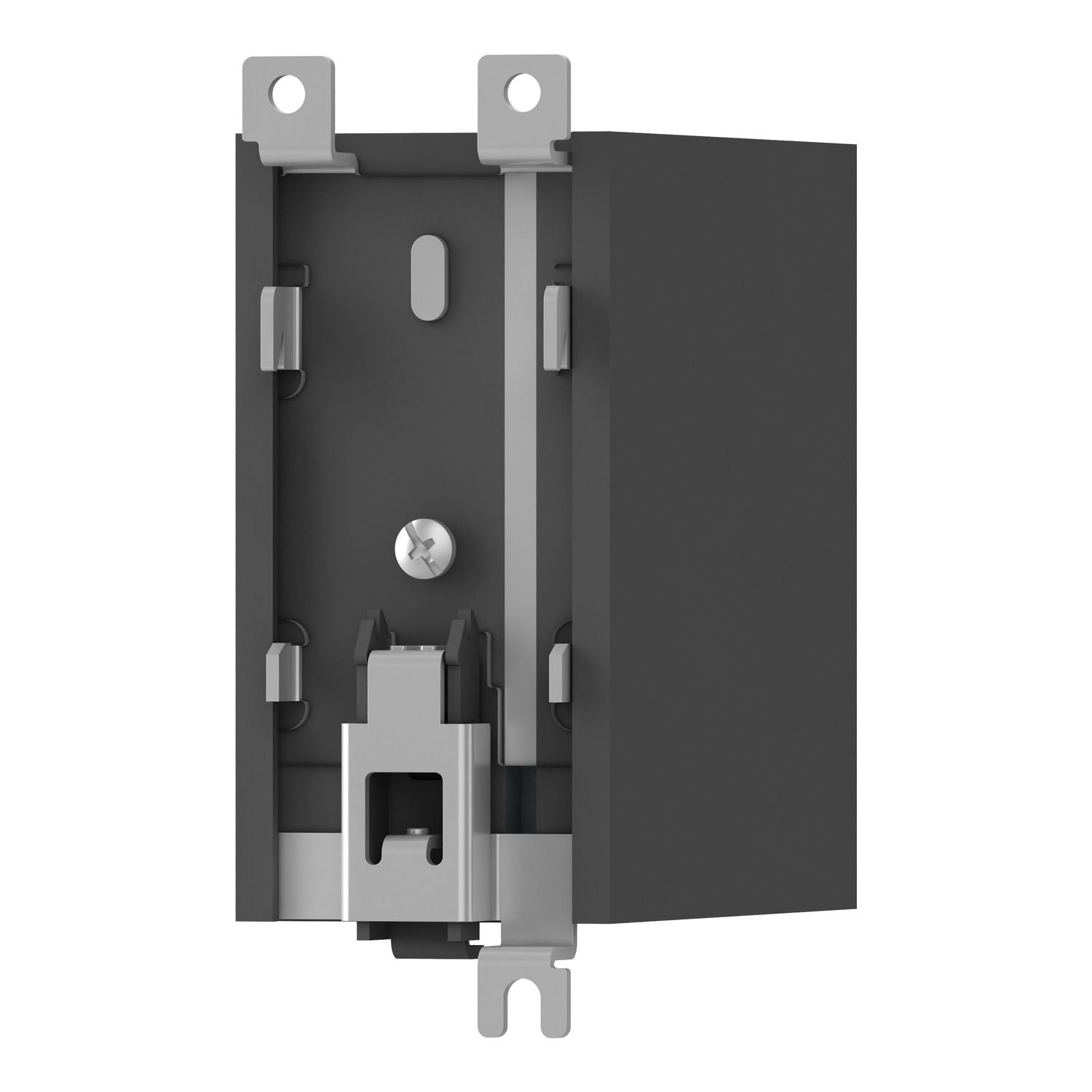

Picture of DIN rail mount, Harmony Solid State Relays, 60A, zero Voltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC

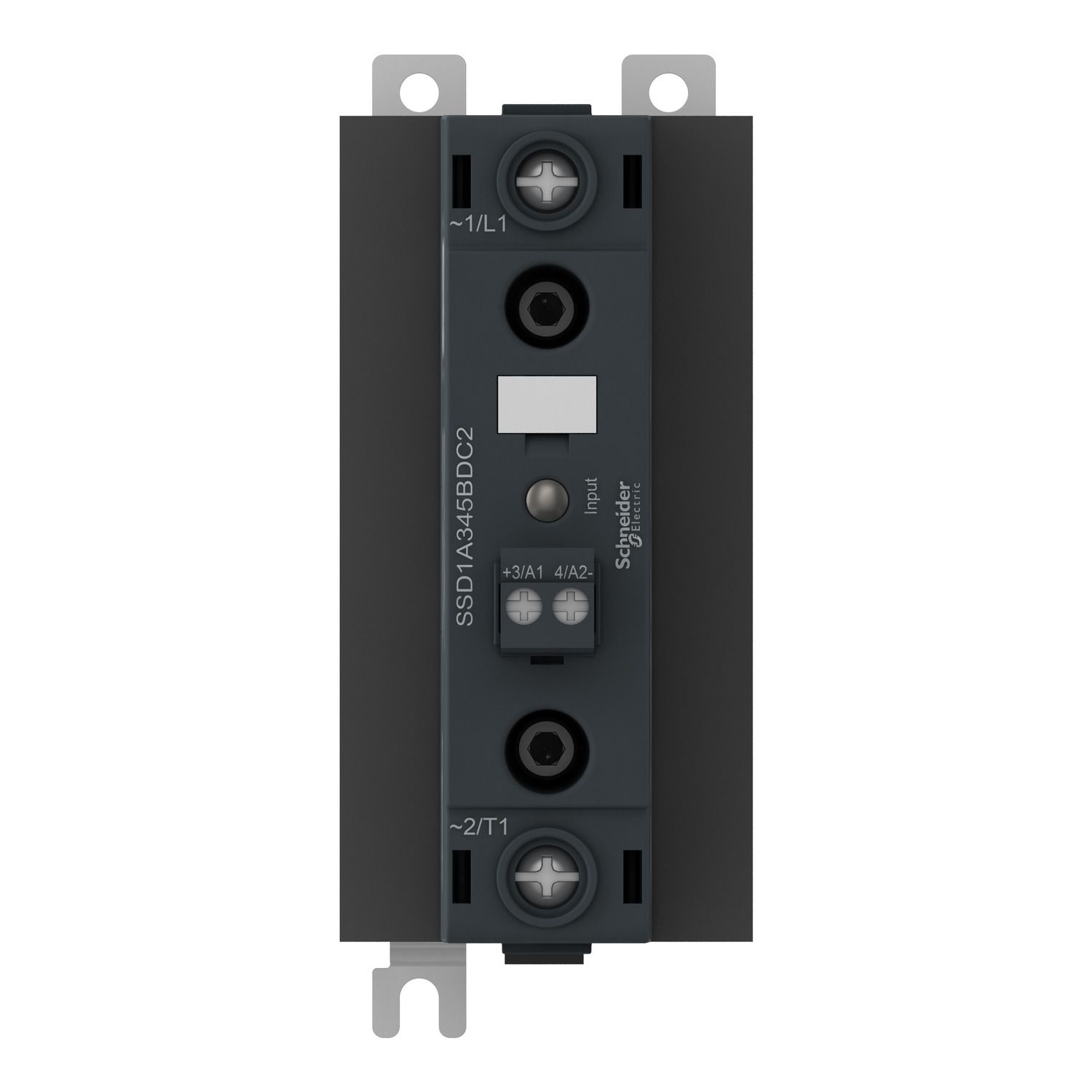

Picture of DIN rail mount, Harmony Solid State Relays, 60A, zero Voltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC

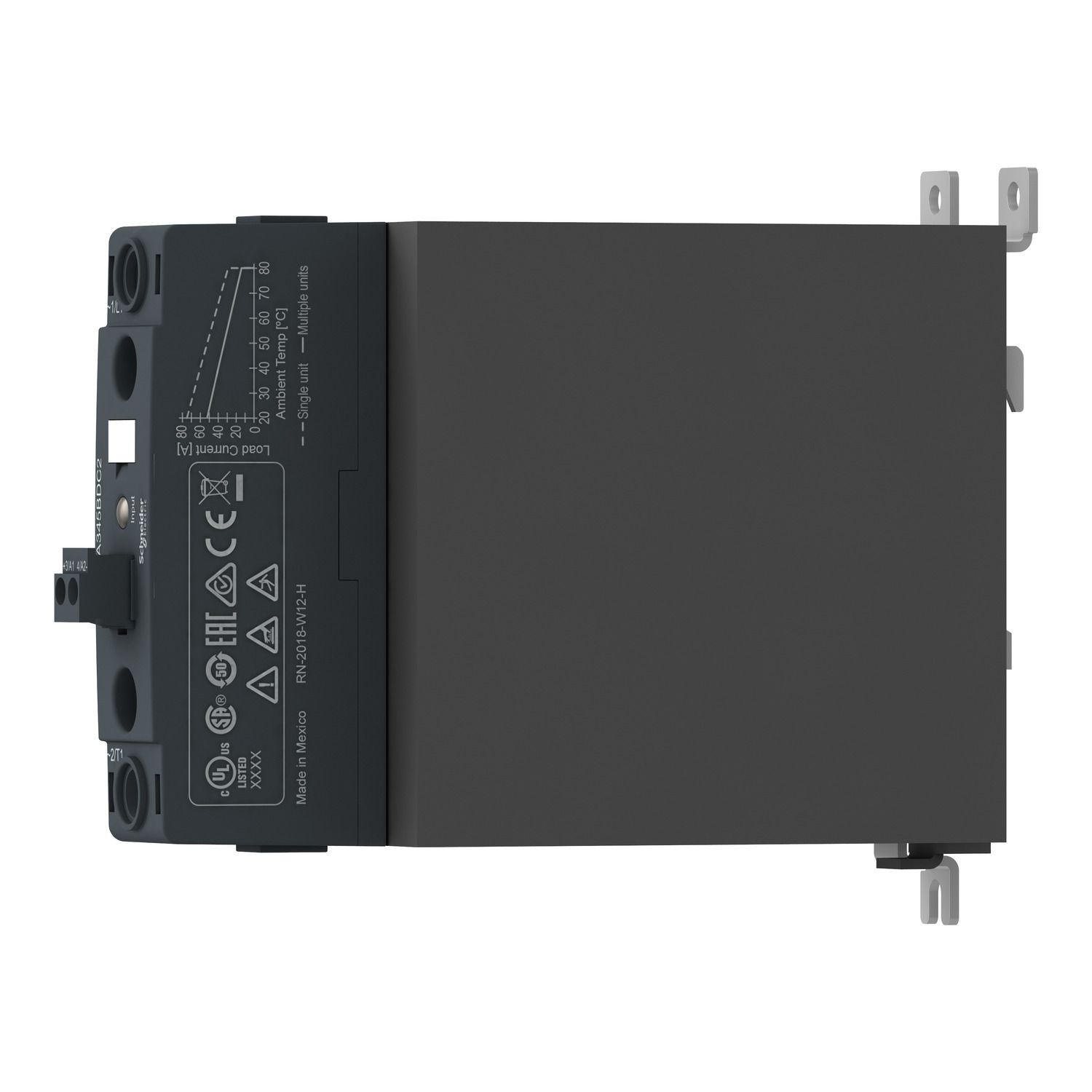

Picture of DIN rail mount, Harmony Solid State Relays, 60A, zero Voltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC

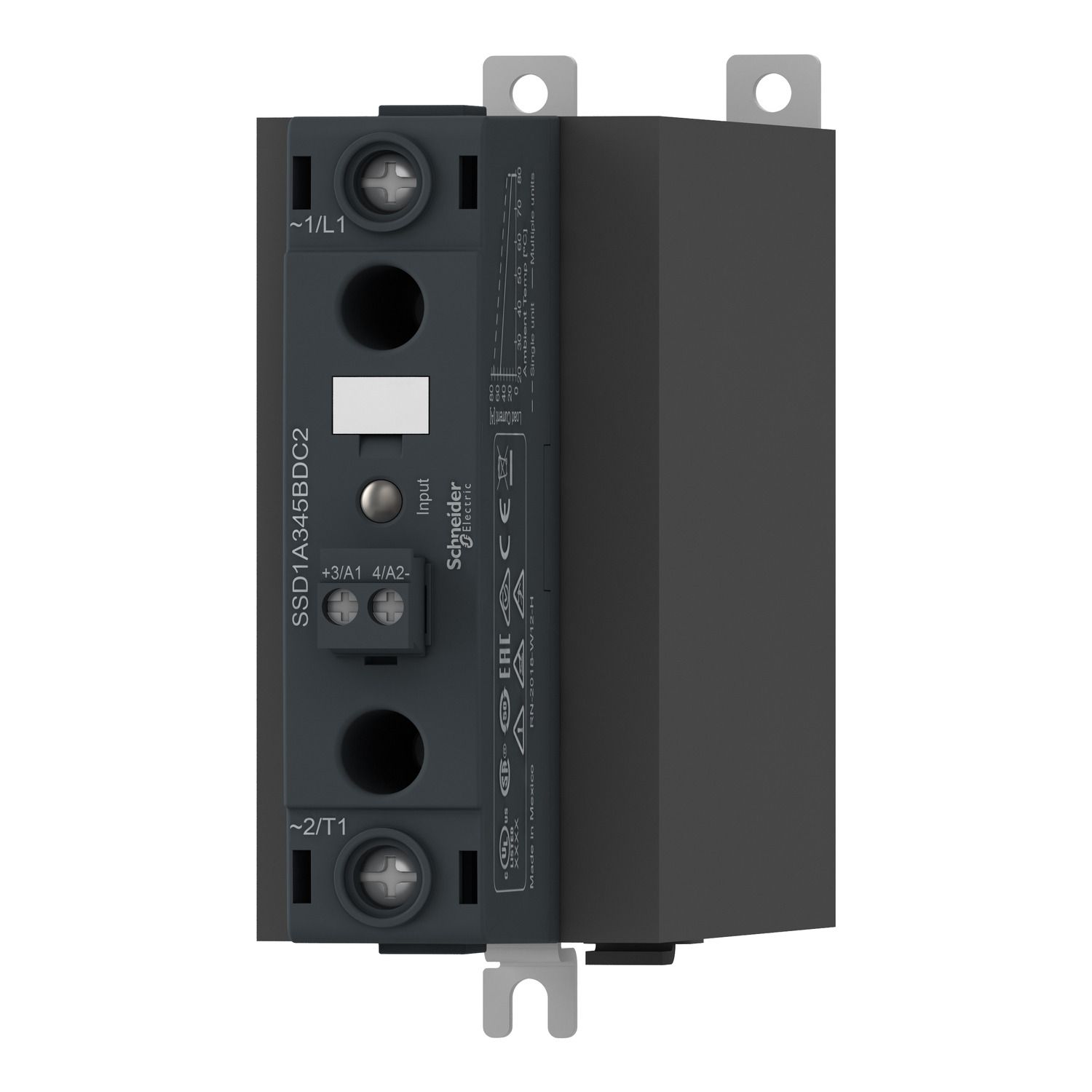

Picture of DIN rail mount, Harmony Solid State Relays, 60A, zero Voltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC

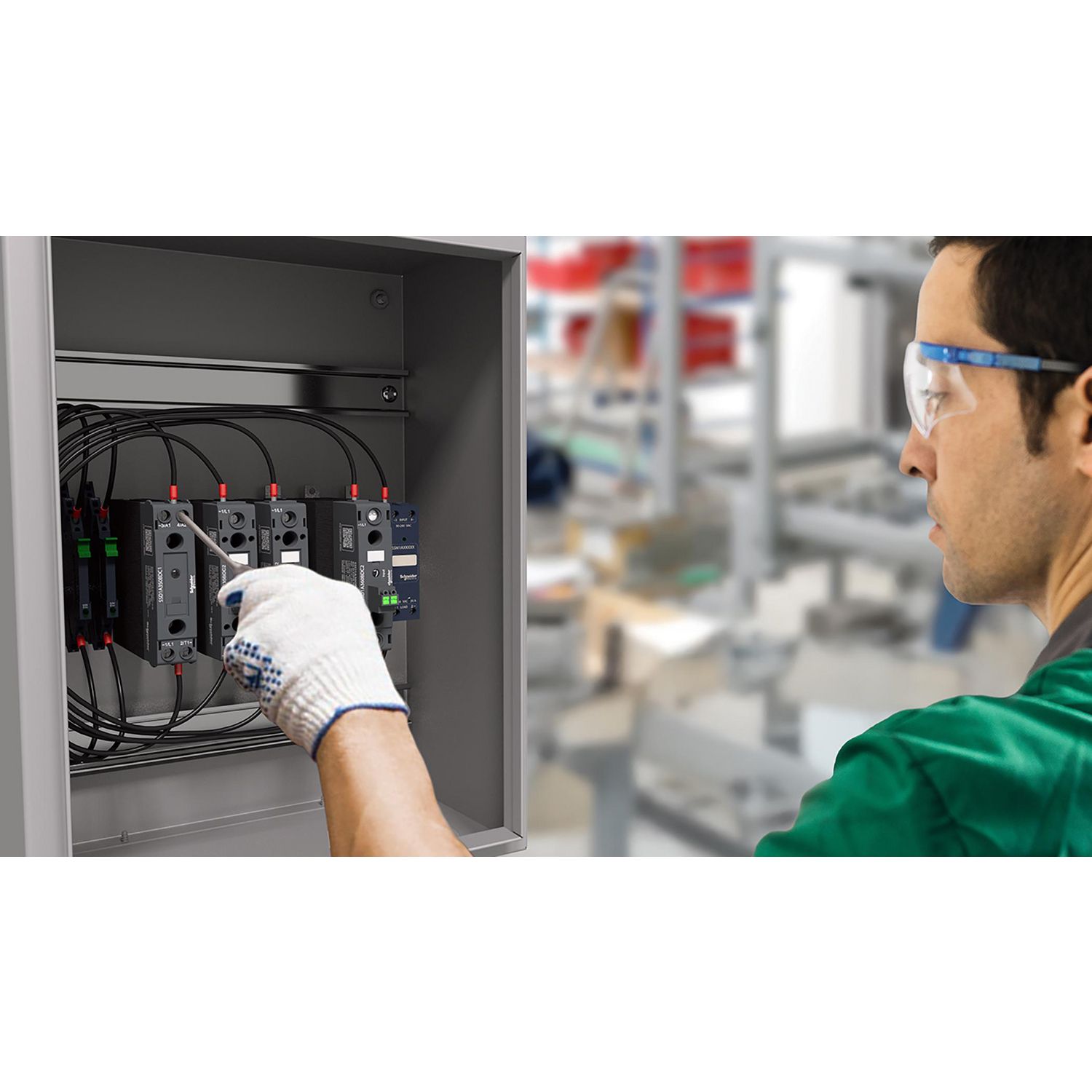

Picture of DIN rail mount, Harmony Solid State Relays, 60A, zero Voltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC
SKU:

SSD1A360BDC2

DIN rail mount, Harmony Solid State Relays, 60A, zero Voltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC

$219.49 INC GST
Available for Shipping : 06-Feb-2025
Product Selector
DIN rail mount, Harmony Solid State Relays, 60A, zero Voltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
End of life manual
Instruction sheet
Catalogue
Technical illustration
Product Page Link
Product Data Sheet
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 60A power rated relay with pluggable screw input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.

Products specifications

Attribute name Attribute value
Main
Device short name SSD1
[Uc] control circuit voltage 4...32 V
Product configuration type contactor configuration with pluggable screw input
Number of channels 1
Range of product Harmony Solid State Relays
[In] rated current 60 A
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Network number of phases 1 phase
Product or component type solid state relay up to 75 A
Output switching mode zero voltage switching
Connections - terminals screw connectors
Complementary
Power factor 0.5 with maximum load
Rated duty uninterrupted
Inrush current 1350 A at 60 Hz
Input current limits 10-15 mA
Maximum switching voltage 1 V DC turn-off
DV/dt 500 V/µs off-state at maximum rated voltage
Electromagnetic compatibility immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11, conducted emission environment B for DC input supply conforming to IEC 60947-4-3, radiated emission environment B for DC input supply conforming to IEC 60947-4-3, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4, conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2
Device presentation complete product
Minimum switching voltage 4 V DC turn-on
Motor power kW 7.46 kW/10 hp at 480 V AC, 3.73 kW/5 hp at 240 V AC, 1.5 kW/2 hp at 120 V AC
Maximum voltage drop <1.2 V on-state
Insulation resistance 1000 MOhm at 500 V DC
Output voltage 48...600 V AC
Height 111.5 mm
Depth 154.4 mm
Overvoltage category III
Width 45 mm
Contact form Form 5 semiconductor output DOL contactor
Solid state output type zero voltage switching
Local signalling LED (green) for control voltage
Absolute maximum voltage 1200 V
Maximum leakage current 1 mA off-state
[Uimp] rated impulse withstand voltage 6 kV for input or output to case, 6 kV for input/output circuit
Net weight 0.507 kg
Load current 0.15-60 A
Response time 0.5 cycle (turn-off), 0.5 cycle (turn-on)
Dielectric strength 4 kV AC for input or output to case, 4 kV AC for input/output circuit
Maximum I²t for fusing 7593 A².s for 8.33 ms, 8320 A².s for 10 ms
Tightening torque 18...20 lb.in for load output, 2...2.2 N.m for load output, 5 lb.in for control input, 0.5 N.m for control input
Connections - terminals clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output, plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input
[Uc] control circuit voltage 4...32 V DC
Coordination type type 2, type 1
Network frequency 47...440 Hz
Environment
Ambient air temperature for storage -40-100 °C
IP degree of protection IP20
Pollution degree 2
Standards UL 508, CSA C22.2 No 14-13, IEC 60950-1, IEC 62314, IEC 60947-4-3, IEC 61373:class B: category 1
Ambient air temperature for operation -40-80 °C
Flame retardance V-0 conforming to UL 94
Shock resistance 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27, 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27
Vibration resistance 0.35 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.8 cm
Package 1 Width 12.0 cm
Package 1 Length 15.0 cm
Package 1 Weight 555.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.016 kg
