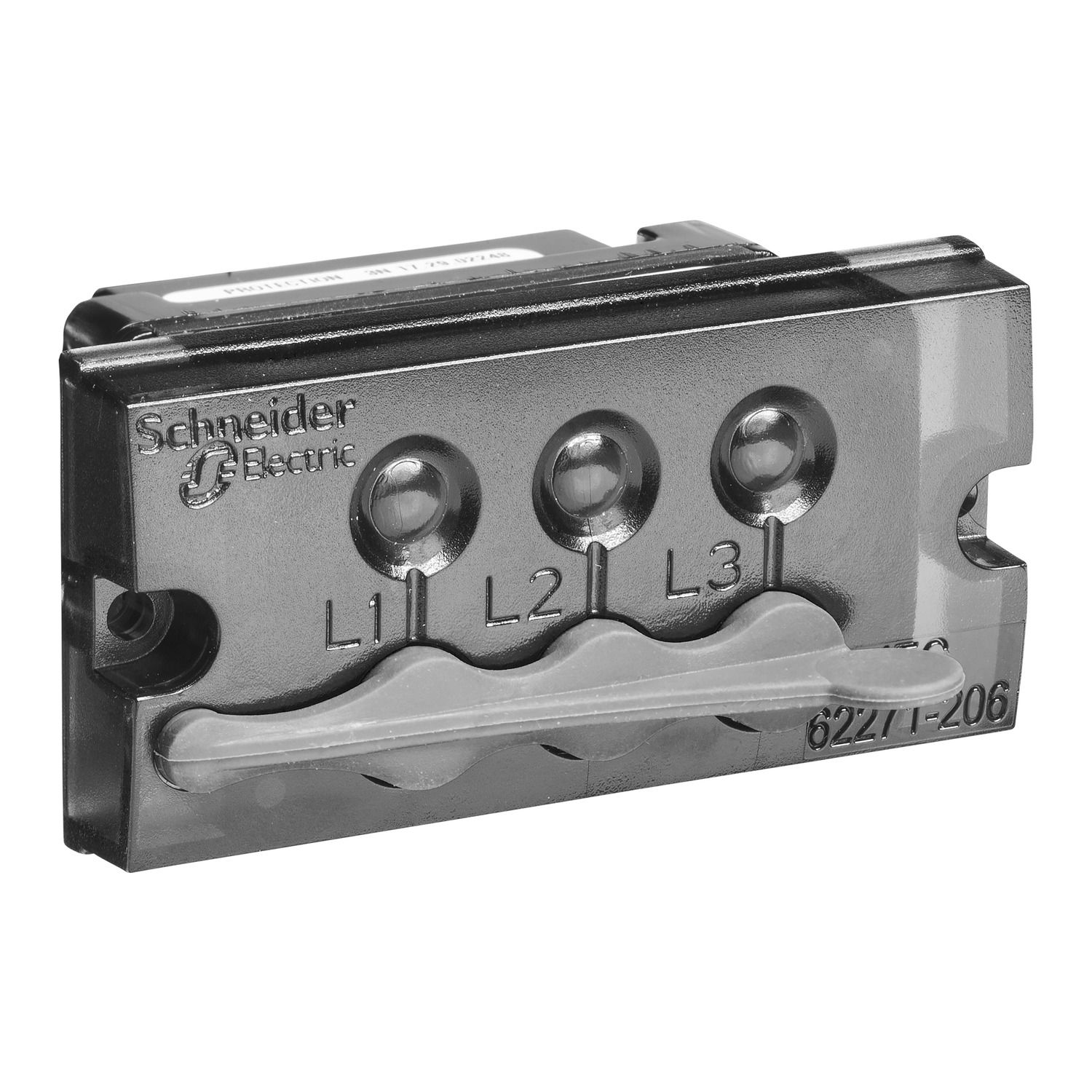

Picture of Voltage presence indicator, SM6-24, Easergy, spare part, VPIS, 32.5µA
SKU:

SPKVPI62407

Voltage presence indicator, SM6-24, Easergy, spare part, VPIS, 32.5µA

$487.74 INC GST
Available for Shipping : 14-Jan-2026
Product Selector
Voltage presence indicator, SM6-24, Easergy, spare part, VPIS, 32.5µA
  • OEM approved spare voltage presence indicator
  • Designed for cubicle SM6-24
  • Complies with product warranty
  • Reduces risk of product failure
  • Easy to install and operate​
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026
User guide
Product Page Link
Product Data Sheet
This product is a spare part for your SM6-24. This 32.5muA voltage presence indicator is the original part designed for your cubicle. Usage of a certified spare part for your SM6-24 extends the lifetime of your product and prevents it from unexpected failures.

Products specifications

Attribute name Attribute value
Main
Mounting location operating mechanism
Device short name VPIS V2
Product or component type voltage presence indicator
Range compatibility Easergy, SM6-24
Standards IEC 62271-206
Range of product SM6-24
Mounting mode flush-mounted
Screw type M3
Complementary
Net weight 0.08 kg
Product compatibility VPI62421
Depth 40 mm
Width 70 mm
Cut-out dimensions 32 x 53 mm
Height 35 mm
Bulb type LED
Mechanical robustness impacts de-energized - 3 impacts in the weakest places conforming to IEC 60068-2-75, impacts de-energized - 2 joules conforming to IEC 61958-1
Environment
Electromagnetic compatibility immunity to voltage dips: (immunity tests-conducted disturbances), criteria B, 1, conforming to IEC 61000-4-11, magnetic field at power frequency: (immunity tests-radiated disturbances), criteria B, 100 A/m, conforming to IEC 61000-4-8, damped oscillatory wave: (immunity tests-conducted disturbances), criteria B, 1 kV, conforming to IEC 61000-4-18, fast transient bursts: (immunity tests-conducted disturbances), criteria B, 2 kV, conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test: (immunity tests-conducted disturbances), criteria A, 10 V/m, 80 MHz...3 GHz, conforming to IEC 61000-4-3, electrostatic discharge: (immunity tests-radiated disturbances), criteria B, 8 kV air, 6 kV contact, conforming to IEC 61000-4-2
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -25-85 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4 cm
Package 1 Width 15 cm
Package 1 Length 21 cm
Package 1 Weight 100 g
