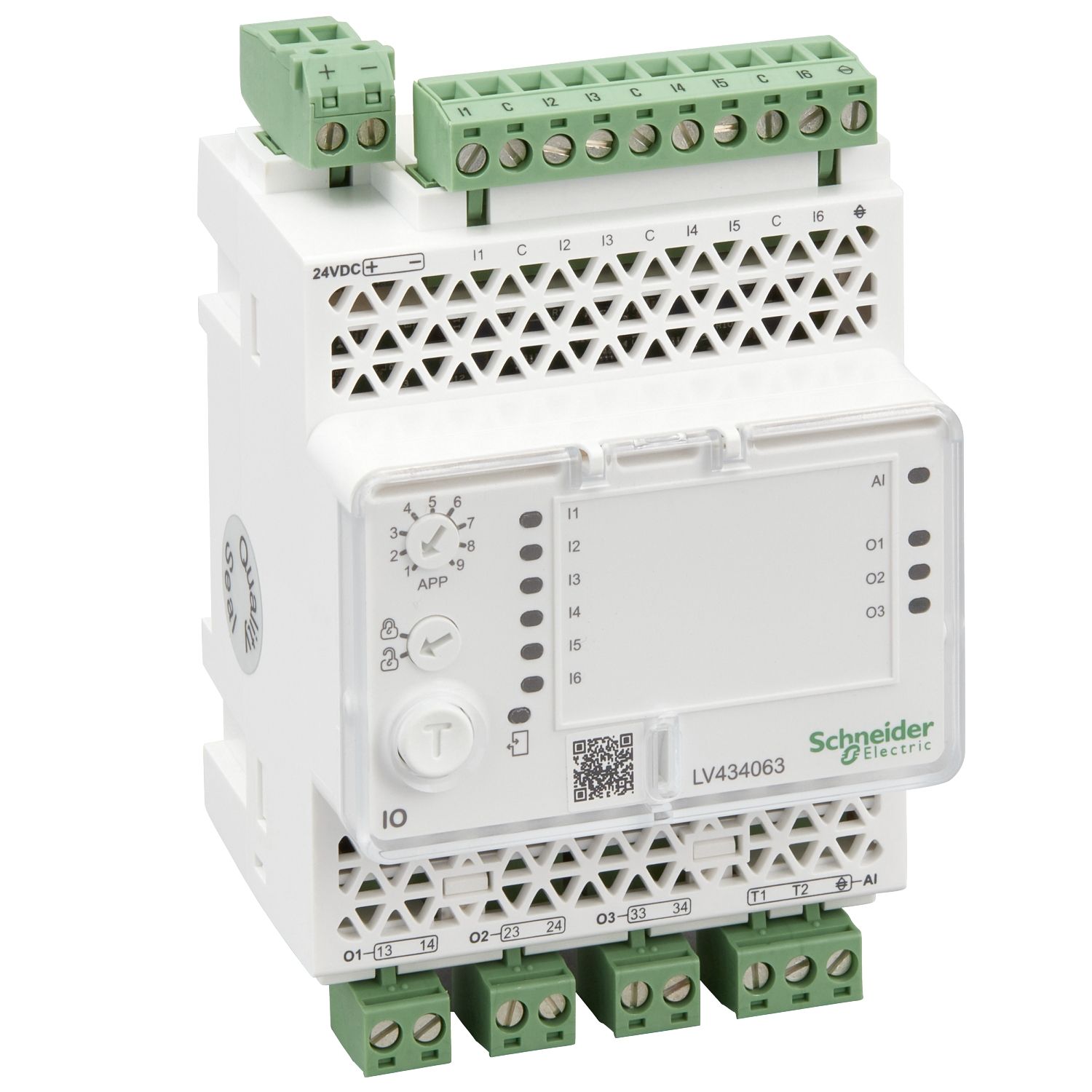

Picture of Communication module, MasterPact NW, MasterPact NT, external, spare part, Enerlin'X
SKU:

SPKLV434063

Communication module, MasterPact NW, MasterPact NT, external, spare part, Enerlin'X

$1,230.72 INC GST
Available for Shipping : 01-Feb-2026
Product Selector
Communication module, MasterPact NW, MasterPact NT, external, spare part, Enerlin'X
  • Communication module is OEM approved spare part
  • Designed for MasterPact NW and Masterpact NT
  • Complies with product warranty
  • Connects 1 circuit breaker of MasterPact NT/NW to Modbus network
  • Features monitoring and control by a Programmable Logic Controller or any other system
  • Uses ULP port to device and Modbus Smartlink SI B to server
  • 24 VDC power supply, screw clamp terminal block, mounts onto DIN rail
  • After-sales replacement part for LV434063
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 01-Feb-2026
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name I/O application module
Range compatibility MasterPact NT
Mounting location external
Product name Enerlin'X IO
Product or component type communication module
Offer type spare part
Range of product MasterPact NW
Complementary
Depth 70.6 mm
Width 71.7 mm
Compatibility code I/O
Mounting mode by clips
Control type by software
Current consumption 165 mA
Communication network type Universal Logic Plug on 2 RJ45 connectors
Output type digital: 250 V - AC - 5 A
Net weight 0.3 kg
Number of inputs 1-1 analog, 6-6 digital
Time delay 0...20 s
Vibration frequency 5-8.4 Hz
Electromagnetic compatibility surge immunity test conforming to EN/IEC 61000-4-5, immunity to radiated fields 10 V/m conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test conforming to EN/IEC 61000-4-2
Cable length 10 m
Mounting support 35 mm DIN rail
Number of outputs 3 digital
Standards UL 508, IEC 60950, UL 60950, IEC 60947-6-2
Height 116 mm
Connections - terminals screw terminal block
[Us] rated supply voltage 24 V DC - 20...10 %
Input type digital at state 0: 0-19.8 V - DC - 0-0 mA, digital at state 1: 19.8-25.2 V - DC - 6.1-8.8 mA
Product certifications cULus, CE, GOST, FCC
Environment
IP degree of protection IP3x other parts: , IP4X front panel: , IP2X connectors:
Relative humidity 5-85 %
Ambient air temperature for storage -40-85 °C
Flame retardance V0 conforming to UL
Pollution degree 3
Ambient air temperature for operation -20-70 °C
Shock resistance 1000 m/s²
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9 cm
Package 1 Width 8.8 cm
Package 1 Length 12.5 cm
Package 1 Weight 297 g
