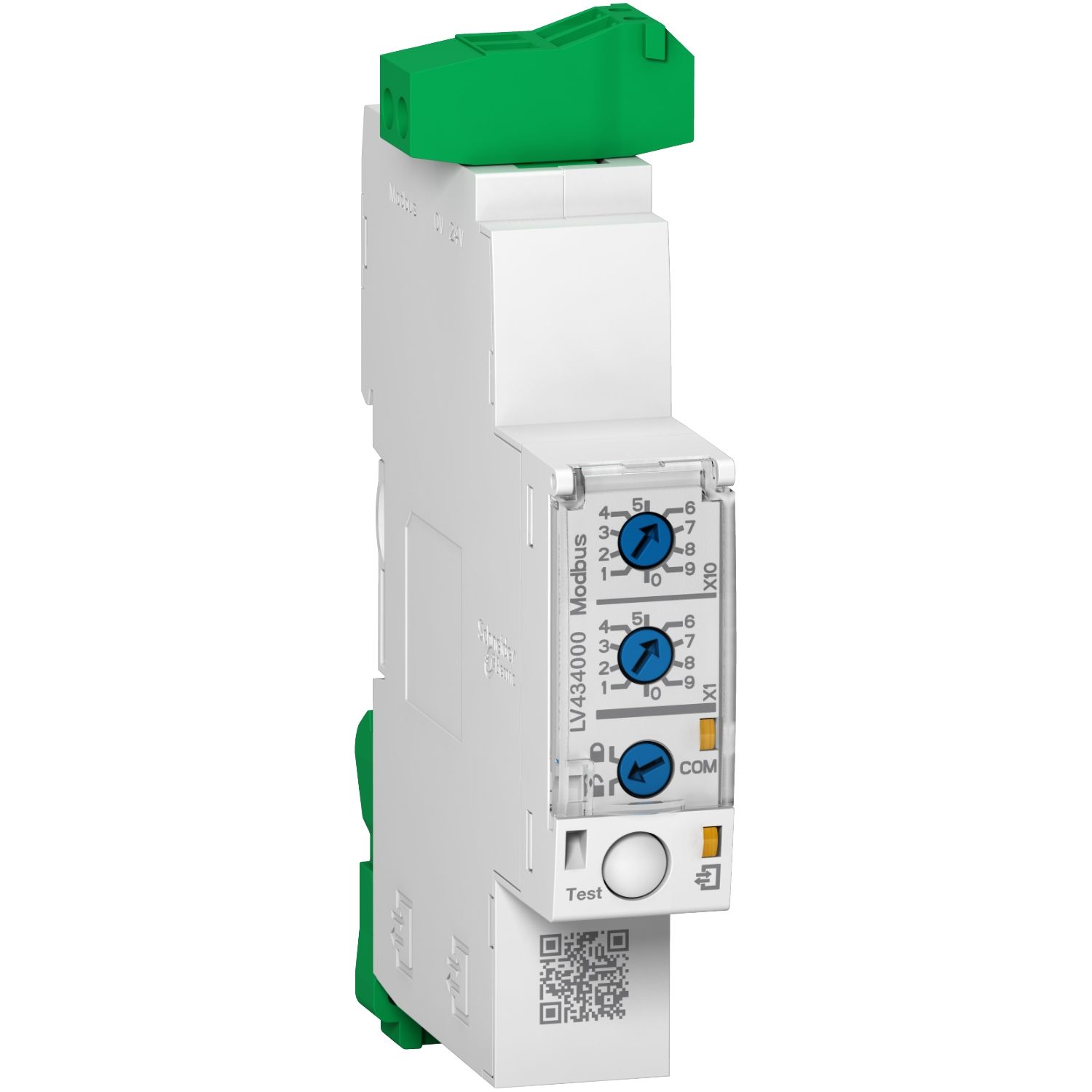

Picture of Communication module, MasterPact NW, MasterPact NT, external, spare part, Modbus SL
SKU:

SPKLV434000

Communication module, MasterPact NW, MasterPact NT, external, spare part, Modbus SL

$363.00 INC GST
Available for Shipping : 04-Feb-2026
Product Selector
Communication module, MasterPact NW, MasterPact NT, external, spare part, Modbus SL
  • Communication module is OEM approved spare part
  • Designed for MasterPact NW and Masterpact NT
  • Complies with product warranty
  • Connects 1 Circuit Breaker MasterPact NT/NW to Modbus network
  • Features monitoring and control by a Programmable Logic Controller or any other system
  • Uses ULP port to device and Modbus Smartlink SI B to server
  • 24 VDC power supply, screw clamp terminal block, mounts onto DIN rail
  • After-sales replacement part for LV434000
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Feb-2026
Instruction sheet
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name IFM
Range compatibility MasterPact NT
Mounting location external
Product or component type communication module
Offer type spare part
Range of product MasterPact NW
Complementary
Input voltage 24 V DC - 20...10 %
Accuracy class class 2 power supply
Depth 73 mm
Width 18 mm
Compatibility code IFM
Mounting mode by clips
Memory type EEPROM data storage
Current consumption 30 mA 24 V DC room temperature
Communication network type Modbus, Modbus Serial line slave9.6...38.4 kbauds on 1 RJ45, Universal Logic Plug on 2-port RJ45
Net weight 120 g
Power consumption in W 1.635 W
Mounting support 35 mm DIN rail
Output voltage 24 V DC
Standards IACS E10, IEC 60950, CISPR 11, CISPR 24, UL 60950, UL 61010, CISPR 22
Output current 3 A
Height 109 mm
Connections - terminals screw type terminals, RJ45 connector
Product certifications FCC, CE, cULus, EAC
Environment
Vibration frequency 5-8.4 Hz conforming to EN/IEC 60068-2
IP degree of protection other parts: IP30, connectors: IP20
Relative humidity 5-85 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Flame retardance V0 conforming to UL 94
Shock resistance +/- 15 gn 11 ms conforming to EN/IEC 60068-2-27
Pollution degree 3
Ambient air temperature for operation -20-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.323 cm
Package 1 Width 7.949 cm
Package 1 Length 11.525 cm
Package 1 Weight 120 g
