SKU:

SPK64922

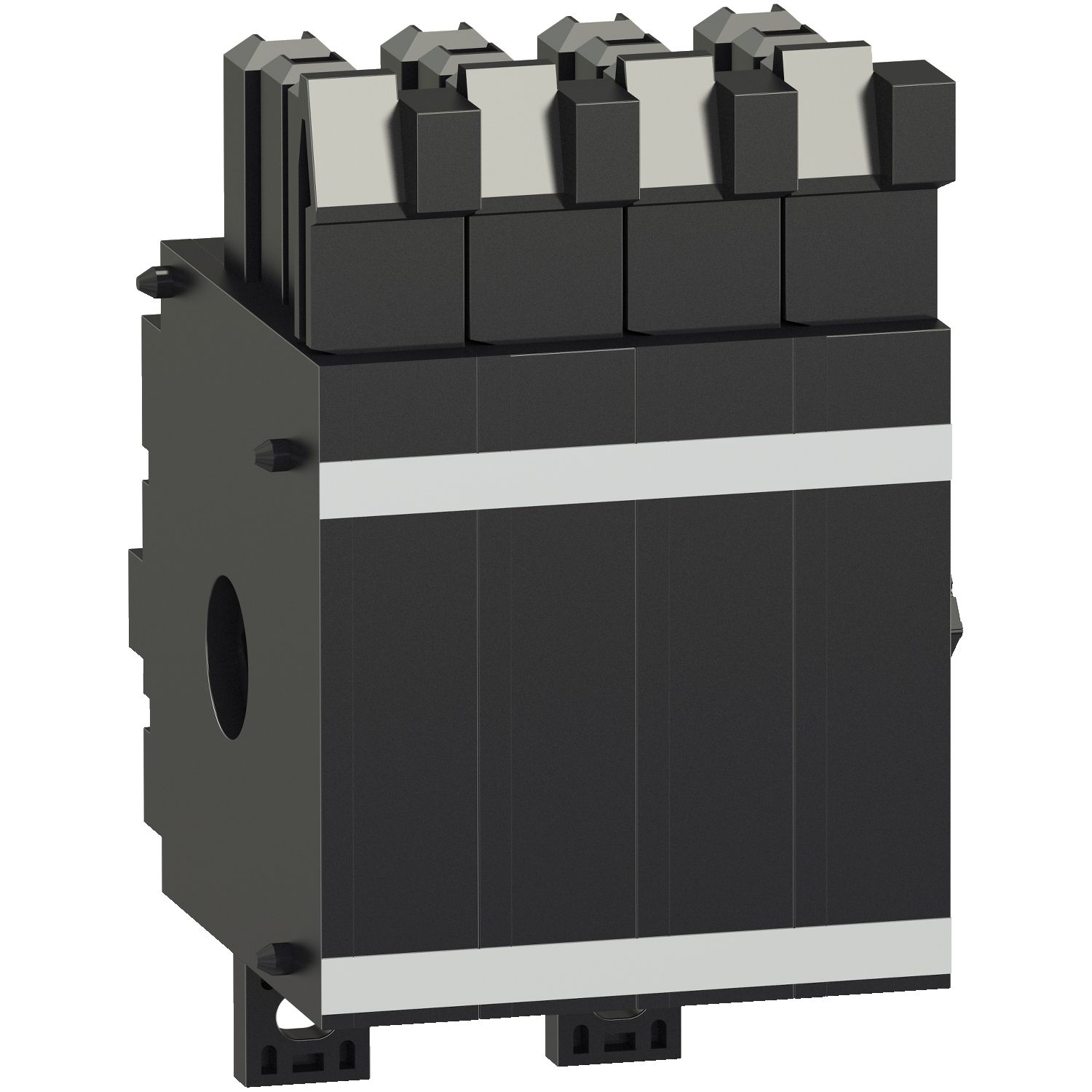

Auxiliary contact, MasterPact NW, operating mechanism, spare part, 4 OF, standard and low level

$519.42 INC GST

Qty:

Available for Shipping : 19-Jan-2026

Product Selector

Auxiliary contact, MasterPact NW, operating mechanism, spare part, 4 OF, standard and low level

Manufacturer: Schneider Electric

Delivery date: 19-Jan-2026

User guide

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Mounting location	operating mechanism
Device short name	4 OF
Signal contacts composition	4 NO/NC
Product or component type	auxiliary contact
Range compatibility	MasterPact NW
Range of product	MasterPact NW
Complementary
Net weight	0.1 kg
Minimum load	2 mA at 15 V, 100 mA at 24 V
[Ie] rated operational current	6 A at 250 V DC conforming to UL 489, 6 A at 600 V AC 50/60 Hz conforming to UL 489, 8 A at 480 V AC 50/60 Hz conforming to UL 489, DC-12: 3 A at 250 V DC conforming to EN/IEC 60947-2, DC-12: 10 A at 125 V DC conforming to EN/IEC 60947-2, DC-12: 10 A at 24/48 V DC conforming to EN/IEC 60947-2, AC-12: 6 A at 690 V AC 50/60 Hz conforming to EN/IEC 60947-2, AC-12: 10 A at 480 V AC 50/60 Hz conforming to EN/IEC 60947-2, AC-12: 10 A at 240/380 V AC 50/60 Hz conforming to EN/IEC 60947-2
Auxiliary contacts type	low level, standard
Mounting mode	drawout, fixed
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.8 cm
Package 1 Width	9 cm
Package 1 Length	9.8 cm
Package 1 Weight	90 g
