SKU:

SPK47600

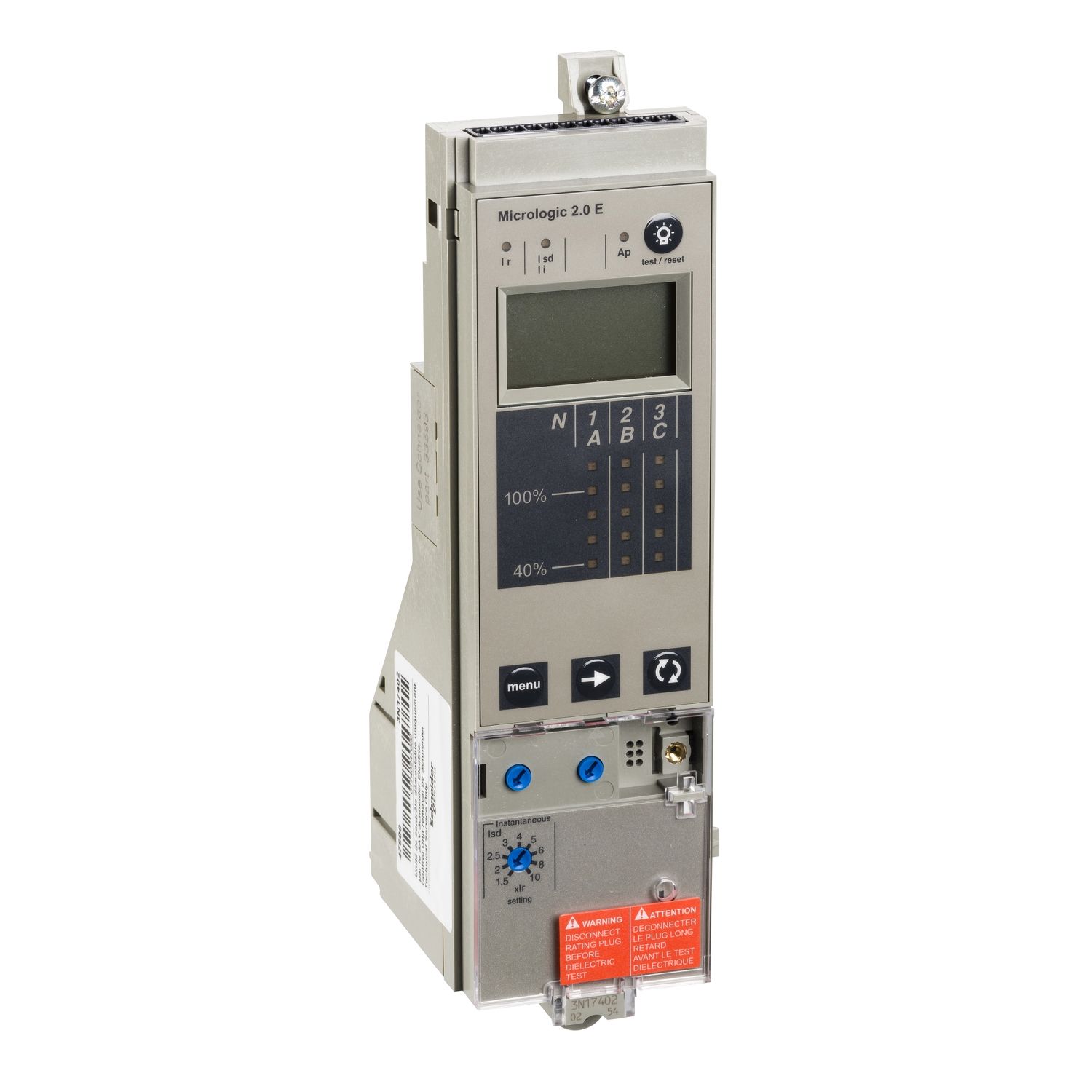

Protection components, MasterPact NW, MasterPact NT, frame, spare part, MicroLogic, basic protections LI, energy meter measurement

$2,333.76 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

Product Selector

Protection components, MasterPact NW, MasterPact NT, frame, spare part, MicroLogic, basic protections LI, energy meter measurement

Manufacturer: Schneider Electric

User guide

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Mounting location	frame
Trip unit technology	electronic
Device application	distribution
Product name	MicroLogic
Product or component type	protection components
Range compatibility	MasterPact NT
Protected poles description	3t + N/2, 3t, 4t
Poles description	3P, 4P
Offer type	spare part
Network type	AC
Trip unit protection functions	basic protection
Range of product	MasterPact NW
Mounting mode	drawout, fixed
Trip unit name	MicroLogic 2.0 E
Network frequency	50/60 Hz
Complementary
Zone selective interlocking ZSI	without
Instantaneous pick-up adjustment type Ii	adjustable 9 settings
Long time delay adjustment type	adjustable 9 settings
Communication of data	protection and alarm settings, measurement readout
Display type	digital display
Type of measurement	energy meter
Earth-leakage protection	without
Thermal memory	20 mn
Long time pick-up adjustment type Ir	adjustable 9 settings
Long time pick-up adjustment range	0.4...1 x In
[tr] long-time delay adjustment range	12.5-600 s at 1.5 x Ir, 0.7-24 s at 6 x Ir, 0.7-16.6 s at 7.2 x Ir
Environment
Ambient air temperature for storage	-40-85 °C
Ambient air temperature for operation	-25-70 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.6 cm
Package 1 Width	8 cm
Package 1 Length	21.8 cm
Package 1 Weight	280 g
