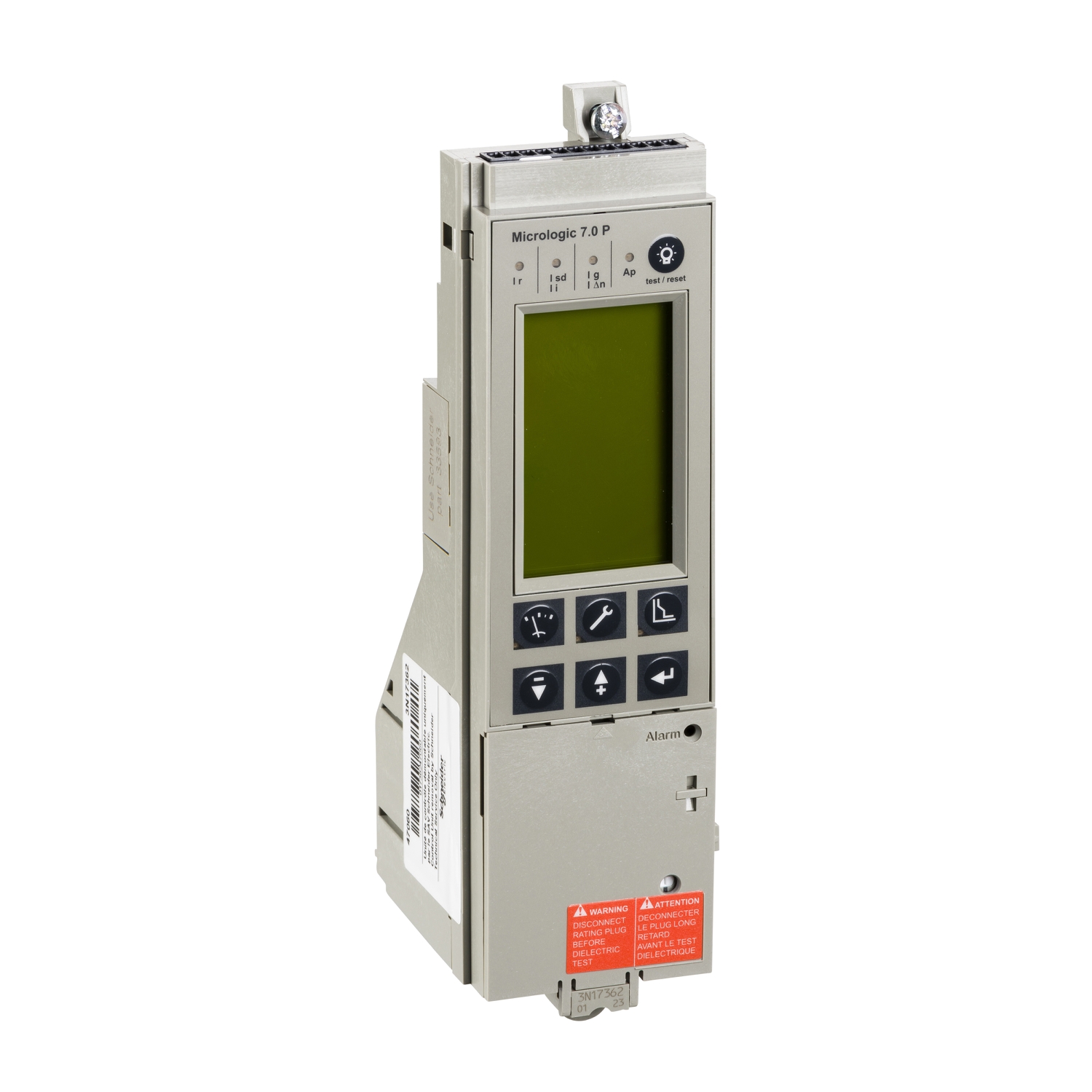

Picture of Protection components, MasterPact NW, MasterPact NT, frame, spare part, Micrologic, selective and earth leakage protections LSIV
SKU:

SPK47060

Protection components, MasterPact NW, MasterPact NT, frame, spare part, Micrologic, selective and earth leakage protections LSIV

$7,610.90 INC GST
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Protection components, MasterPact NW, MasterPact NT, frame, spare part, Micrologic, selective and earth leakage protections LSIV
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Mounting location frame
Trip unit technology electronic
Device application distribution
Product name MicroLogic
Product or component type protection components
Range compatibility MasterPact NT
Protected poles description 3t + N/2, 3t, 4t
Poles description 3P, 4P
Offer type spare part
Network type AC
Trip unit protection functions selective + earth-leakage protection
Range of product MasterPact NW
Mounting mode drawout, fixed
Trip unit name MicroLogic 7.0 P
Network frequency 50/60 Hz
Complementary
Residual earth-leakage time delay adjustment type adjustable 5 settings
Short-time pick-up adjustment type Isd adjustable 9 settings
Zone selective interlocking ZSI with
Instantaneous pick-up adjustment type Ii adjustable 9 settings
Long time delay adjustment type adjustable 9 settings
[Δt] residual earth-leakage time delay adjustment 60-800 ms
[IΔn] residual earth-leakage sensitive adjustment 0.5-30 A
[Isd] short-time pick-up adjustment range 1.5...10 x Ir
Earth-leakage sensitivity 30 A for class AC, 10 A for class A
Earth-leakage protection integrated
Thermal memory 20 mn
[tsd] short-time delay adjustment range 0.1-0.4 s I²t=on, 0-0.4 s I²t=off
Long time pick-up adjustment type Ir adjustable 9 settings
Long time pick-up adjustment range 0.4...1 x In
Short-time delay adjustment type adjustable
Residual earth-leakage sensitity adjustment type adjustable 9 settings
[tr] long-time delay adjustment range 12.5-600 s at 1.5 x Ir, 0.7-24 s at 6 x Ir, 0.7-16.6 s at 7.2 x Ir
Environment
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.7 cm
Package 1 Width 7.9 cm
Package 1 Length 21.7 cm
Package 1 Weight 320 g
